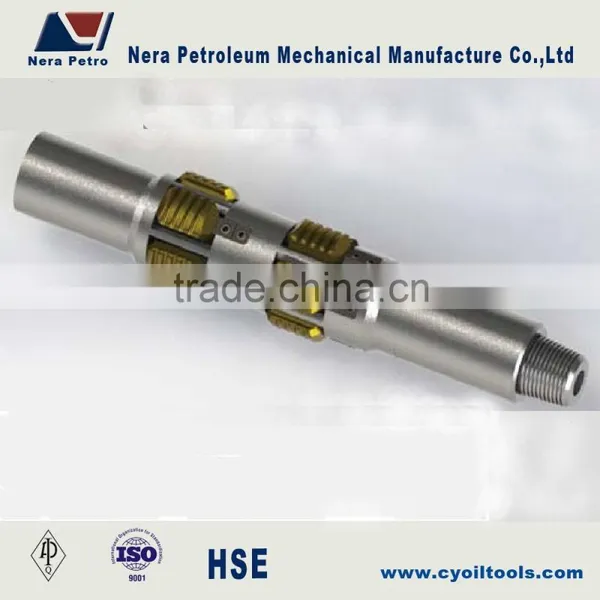

Casing Scraper is ideal for the removal of dirties which may be left the inside wall of casing, such as solid cement, hard wax, various salt crystals or deposits, sharp edges,irons oxide residents resulted from rusting, so as to make all downhole tools pass through unblocked. At present, casing inside wall of casing scraper in many leading oilfields of China has becomes an necessary step.
Technical Specifications and parameters
Type |
Casing Size |
Conn |
O.D |
Length |
I.D |
Scraper Blade |
GX01N |
4 1/2”(114.3) |
2 3/8”REG |
3 5/8”(91) |
38 1/4”(971.2) |
3/4”(19) |
2 X 3 |
GX02N |
5”(127) |
NC26 |
3 5/8”(91) |
38 1/4”(971.2) |
3/4”(19) |
2 X 3 |
GX03N |
5 1/2”(139.7) |
NC31 |
4 5/16”(110) |
43 5/16”(1100) |
1”(25.4) |
2 X 3 |
GX04N |
6 5/8”(168) |
3 1/2”REG |
5 7/64”(130) |
43 5/16”(1100) |
1”(25.4) |
2 X 3 |
GX05N |
7”(177.8) |
3 1/2”REG |
5 3/8”(136) |
43 5/16”(1100) |
1 3/16”(30.2) |
2 X 3 |
GX06N |
9 5/8”(244.5) |
4 1/2”REG |
8”(203) |
52”(1320) |
2 1/4”(57.2) |
2 X 5 |
GX07N |
10 3/4”(273) |
6 5/8”REG |
9”(229) |
59”(1500) |
2 1/4”(57.2) |
2 X 5 |
GX08N |
13 3/8”(339.7) |
6 5/8”REG |
11 1/4”(286) |
59”(1500) |
2 13/16”(71.4) |
2 X 7 |
