API Nonrotary Drill Pipe Protector for drilling
- 500 Piece / Pieces per Month
- Qingdao Tianjin Shanghai etc.
- T/T Credit Card
- API-7-1 Standard single cone drill bit
- 6 7 11 12 degree Diameter 32mm Taper Knock off drill bit
- Oil Well Api Oilfield Fishing Tool Overshot Grapple Assembly/Oil Well Magnetic Fishing Head/Cable Righting Fishing Head
- Drop Shipping API Oilfield Releasing Overshot 4 11/16" Oil Fishing Tools LT119
- API compliant fishing tool overshot for oil field downhole work
- Oil Well fishing tool sucker rod overshot/circulating overshots
Product Details
Place of Origin: | Shandong, China | Brand Name: | Nera | Model Number: | NRPs |
Type: | Other, Nonrotary Drill Pipe Protector | Machine Type: | Drilling Tool | Certification: | API |
Material: | High Manganese Steel | Processing Type: | Forging | Use: | Well Drilling |
Product Description
Nara Petroleum Mechanical Manufacture Co. Ltd, estabished in 2007 and located in the industrial park of Chinese second largest oil field in Dongying City-Shengli Oil Field, is a high-tech private limited liability company which takes the lead in developing, manufacturing and selling oil machinery.

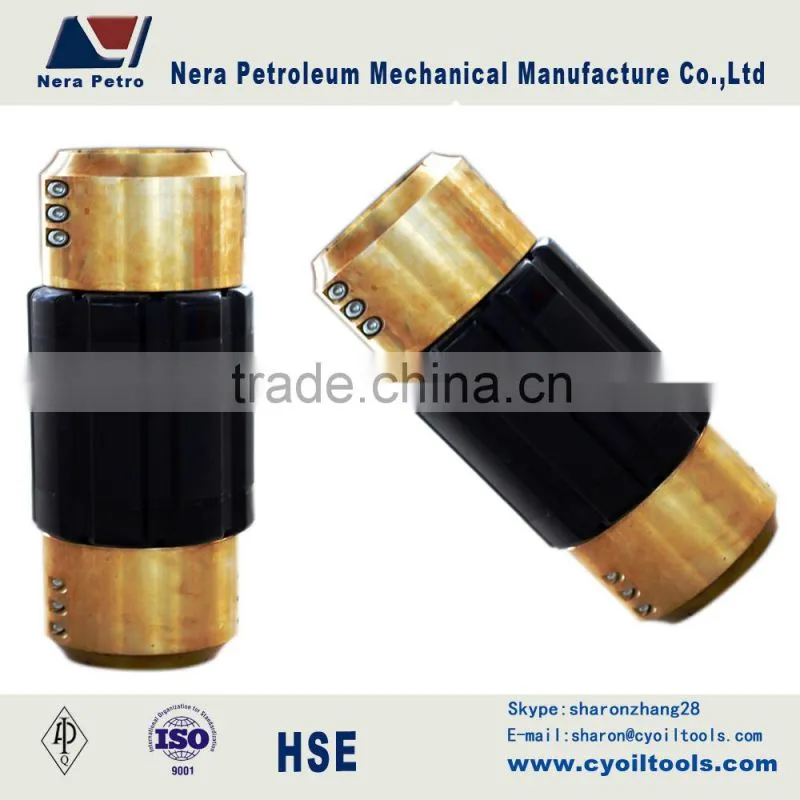

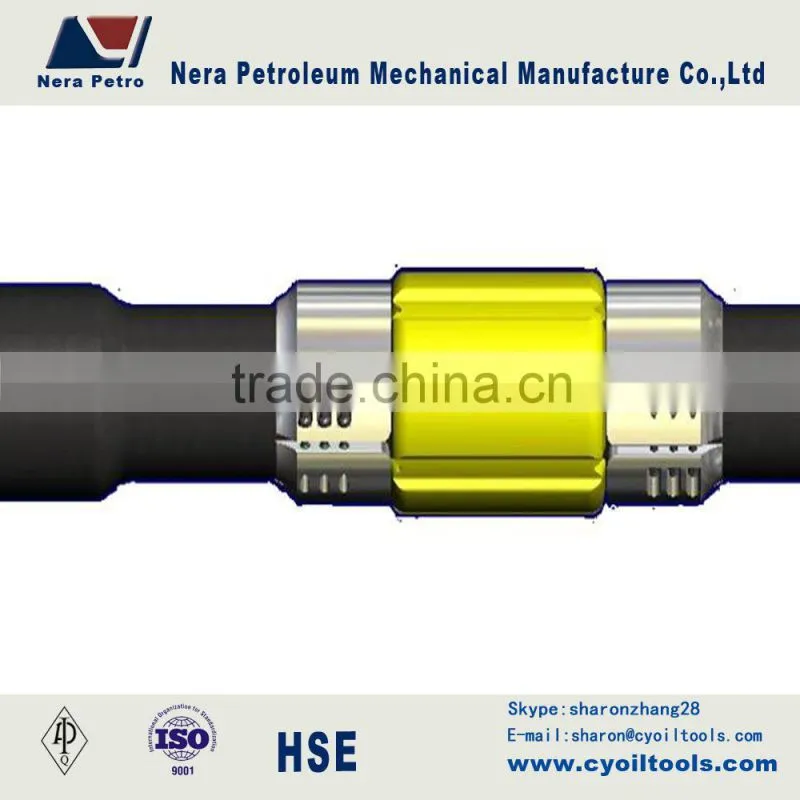

Ordinary drill protectors are all fi xed on the drill pipe and rotate as the drill pipe. In order to reduce the
friction from the rotary drill pipe and upper casing in the horizontal well and extended reach well, we
develop the NRPs with drill pipe rotating while it idoesn't when drilling.
NRPs ensure minimal casing wear, increase stability and reduce shock and vibration in the drill string.

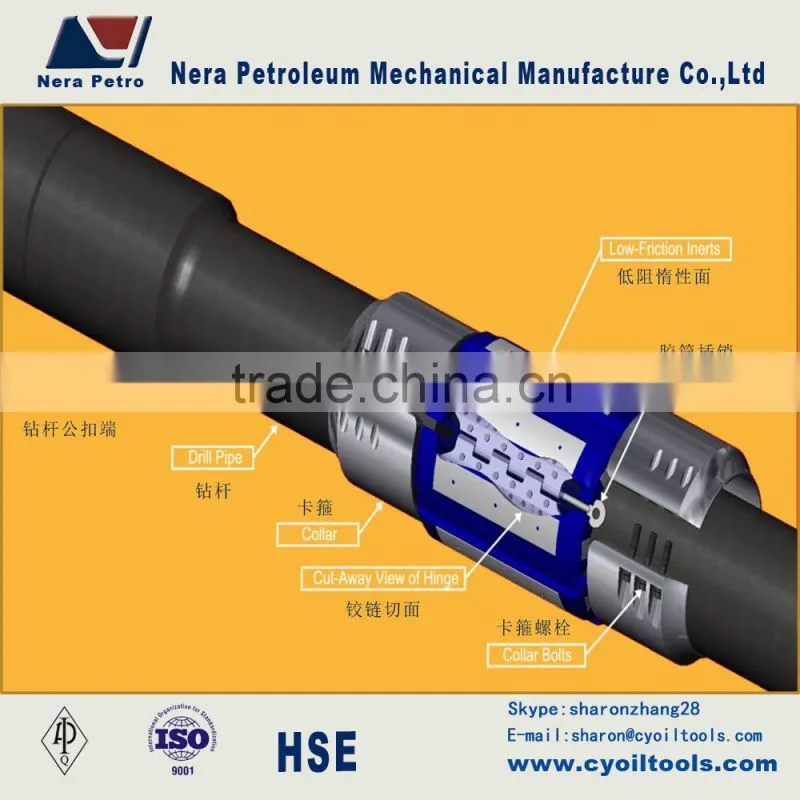

It consists of four parts, sleeve, upper thrust collar, lower thrust collar and alloy steel bolts.
Standard (S) NRPs Technical Parameters
NRP Type | S-278 | S-350 | S-400 | S-450 | S-500 | S-550 | S-578 | S-658 |
Drill Pipe Size (in) | 2-7/8 | 3-1/2 | 4 | 4-1/4 | 5 | 5-1/2 | 5-7/8 | 6-5/8 |
Sleeve O.D (in) | 4-3/8 | 5-1/2 | 6-1/4 | 6-3/4 | 7-1/4 | 7-3/4 | 8 | 9 |
Collar O.D (in) | 3-7/8 | 5 | 5-1/2 | 6 | 6-1/2 | 7 | 7-3/8 | 8-1/8 |
Sleeve Length (in) | 9-1/2 | 10 | 10 | 10 | 9-1/2 | 10 | 10 | 12 |
OAL (in) | 19-1/2 | 20 | 20 | 20 | 19-1/2 | 20 | 20 | 22 |
Rated Lateral Load (lb) | 1000 | 1500 | 1500 | 2000 | 2000 | 2000 | 2500 | 2500 |
Total Flowing Area of 13-3/8" Casing (in²) | 110 | 99 | 95 | 89 | 83 | 77 | 74 | 63 |
Anti-high Temperature (HT) NRPs Technical Parameters
NRP Type | HT-350 | HT-500 | HT-550 |
Drill Pipe Size (in) | 3-1/2 | 5 | 5-1/2 |
Sleeve O.D (in) | 5-1/2 | 7-1/4 | 7-3/4 |
Collar O.D (in) | 5 | 6-1/2 | 7 |
Sleeve Length (in) | 10 | 9-1/2 | 10 |
OAL (in) | 20 | 19-1/2 | 20 |
Rated Lateral Load (lb) | 1500 | 2000 | 2000 |
Super Slide (SS) NRPs Technical Parameters
NRP Type | SS-350 | SS-400 | SS-450 | SS-500 | SS-550 | SS-578 | SS-658 |
Drill Pipe Size (in) | 3-1/2 | 4 | 4-1/2 | 5 | 5-1/2 | 5-7/8 | 6-5/8 |
Sleeve O.D (in) | 5-1/2 | 5-7/8 | 6-3/4 | 7-1/4 | 7-3/4 | 8 | 9 |
Collar O.D (in) | 5 | 5-1/2 | 6 | 6-1/2 | 7 | 7-3/8 | 8-1/8 |
Sleeve Length (in) | 10 | 10 | 10 | 9-1/2 | 10 | 10 | 12 |
OAL (in) | 20 | 20 | 20 | 19-1/2 | 20 | 20 | 22 |
Rated Lateral Load (lb) | 2200 | 2200 | 3000 | 3000 | 3000 | 3500 | 3000 |
We have first-class production equipment and production team, so we can provide you first-class products with high quality and proper price!
We have our own patented products and has passed the attestation of ISO9000:2000 quality system and API, obtained the certificate to enter the net of PetroChina and Sinopec and Class B qualification of PetroChina well control net, and had the honor to win Prizes of Technique Innovation and S&T of Dongying City in 2009.
Our main business includes design and manufacture of downhole drilling tools and wired MWD equipment, manufacture and sales of oil pipe and screw drilling tools, and main products include integral spiral blade stabilizer, hydraulic pressure damping load, oil pressure tapered stabilizer, remote tapered stabilizer, IBOP, flapper type float valve, arrow check valve,casing protector,casing milling tool, adjustable tapered stabilizer, oil pressure tapered stabilizer, nonmagnetic drill collar and so on, totally over 30 series and 10 categories.
We will package and ship products according to your requirements.
Service contributes to quality and quality contributes to confidence, which is our enterpress slogan and mission. We have developed a complete, transplantable enterprise management and operation mode of design, production and after-sale service, with the spirit of "unity, progressive, innovative and efficient," and design tools of three-dimensional solid, finite element analysis, motion simulation and so on.
We will try our best to provide you best service! Looking forward to cooperate with you!
