FAR280 Bore Pile Drilling Machine Max Diameter 2500 mm
What FAE bore pile drilling machine could offer?
FAE bore pile drilling machinecan be equipped with powerful
hydraulic rotary head up 280 kNm torque for the execution of drilled
piles up to 2500 mm diameter over 85 meters depth.
Larger diameter piles are conceived for deep foundation piles through particularly dense or hard rock:
1-Dry piles
drilling in solid ground without water infiltrations
2-Dry piles with casing protection
Performed when soil is unstable. The casing can be withdrawn or left in situ. Steel casings can be installed by means of the rotary table of the rig, by additional equipment such as hydraulic vibrators or casing oscillator.
When the drilling depth is reached, a steel reinforcement is inserted inside the excav-ated pile and concrete is poured by means of tremie pipes.
3-Wet piles
In some cases there may be a need to employ drilling fluids (such as bentonite suspension or biodegradable polymers) in order to maintain a stable shaft
Application field:
-Any kind of soil conditions, including rock formations
-Large and deep drilling design
Features:
-Wide depth and diameters range
-Superior loading capacity of the piles
-Absence of vibrations and noise
-Control of piles verticality by means of electronic devices
-Offshore feasibility
FAR SERIES MULTIPLE PURPOSE BORE PILE DRILLING MACHINE is designed and built for different foundation piling works
of geology conditions. Kelly drilling, CFA drilling, DSM drilling, Large Dia.
DTH drilling and Hydraulic hammer functions are optional to suit your various requirements in different foundation piling works.
base unit is Caterpillar made and various sizes and capacities to suit your requirement.
Versatility of the undercarriage is fully enhance with and width -extendable setup for both transportation mode and working mode.
And the undercarriage is nonetheless the famous Transmittal make type that has long proven history in building rugged, versatile and useful under-carriage.
The Mast is built using the careful selection of material and with CAD designed re-enforced with HIGHTENSILE Structure boxed in.
The Triaxis arrangement of mast systems enables a very user friendly parallelogram set up that can be rig up and ready for work within few tenth Minutes.
The Kellybars and Augers are built from well-known fabricators such from either Europe or China.
It has a very stringent control of material selected for the fabrication of its tools.
The Rotary head and Mast looks the same externally but either welding Procedures are followed strictly and supervised with highest standard possible or careful material selection during building process.
The safety purpose Non-winch Rotation when lowering the Kellybar with or without tools is option.
This prevents the Kellybar wire rope from messing upon the winch.
It's ensures the wire rope is always arranged in a neat and tidy manner.
Extra cushions are installed in the rotary head system to educe damage during accidental fall of Kellybars on to the drive-flange during its lifting process.
What are FAE bore pile drilling machine?
Hydromatic,electrical components and spare parts for bore pile drilling machine which we choice from well-known brand, such as Rexorth, Brevini, Dynamic, Bosch etc,guarantee the reliable quality.
In case to ensure the quality of the next proceeding machining, every process of workmanship is under strictly quality inspection.
In order to speed up the production, we have some necessarily parts in stock which is ready for customers' orders.
What are FAE bore pile drilling machine production details?
What are FAE bore pile drilling machine certificate?

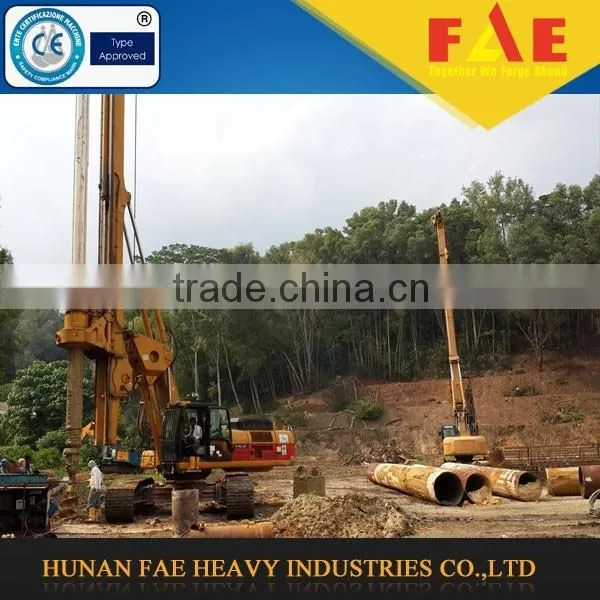

What are FAE bore pile drilling machine jobsite?
What are FAE bore pile drilling machine packing?
What are FAE bore pile drilling machine delivery?
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
FAE website for your further information:
WWW.FAECHINA.COM
