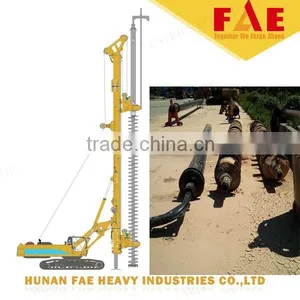

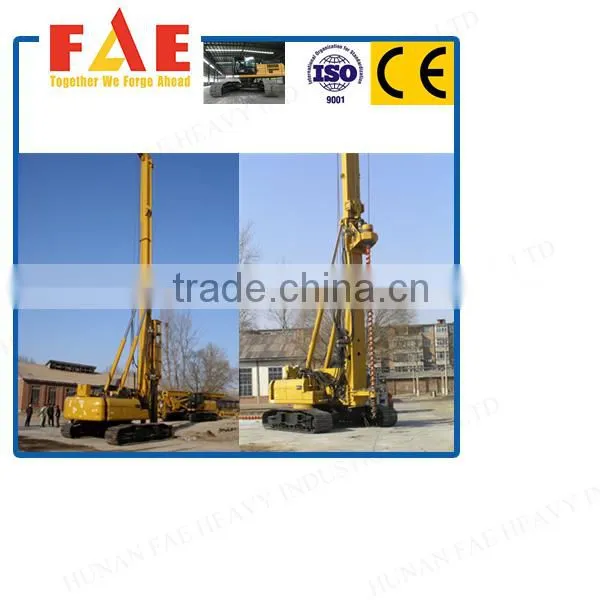

Rotary Drilling rig FAR270 screw spiral
CE&CCC&ISO9001
extendable special chassis
walking motor
reducer from GERMANY Bosch Rexroth
Rotary Drilling Rig with CE Certifications Famous trademark of China
FAR SERIES 60/80/160/200/250/270/330
What FAE piling rig drilling method could offer ?
FAE series piling rig can be equipped with powerful hydraulic rotary head up 360 kNm torque for the execution of drilled piles up to 2500 mm diameter over 90 meters depth.
Larger diameter piles are conceived for deep foundation piles through particularly dense or hard rock:
1-Dry piles piling
Rotary drilling in solid ground without water infiltrations
2-Dry piles with casing protection piling
Performed when soil is unstable. The casing can be withdrawn or left in situ. Steel casings can be installed by means of the rotary table of the rig, by additional equipment such as hydraulic vibrators or casing oscillator.
When the drilling depth is reached, a steel reinforcement is inserted inside the excav-ated pile and concrete is poured by means of tremie pipes.
3-Wet piles piling
In some cases there may be a need to employ drilling fluids (such as bentonite suspension or biodegradable polymers) in order to maintain a stable shaft
Application field:
-Any kind of soil conditions, including rock formations
-Large and deep piling design
Features:
-Wide depth and diameters range
-Superior loading capacity of the piles
-Absence of vibrations and noise
-Control of piles verticality by means of electronic devices
-Offshore feasibility
FAR SERIES PILING RIG is designed and built for different foundation piling works of geology conditions. Rotary kelly drilling, CFA drilling, DSM drilling, Large Dia.
DTH drilling and Hydraulic hammer functions are optional to suit your various requirements in different foundation piling works.

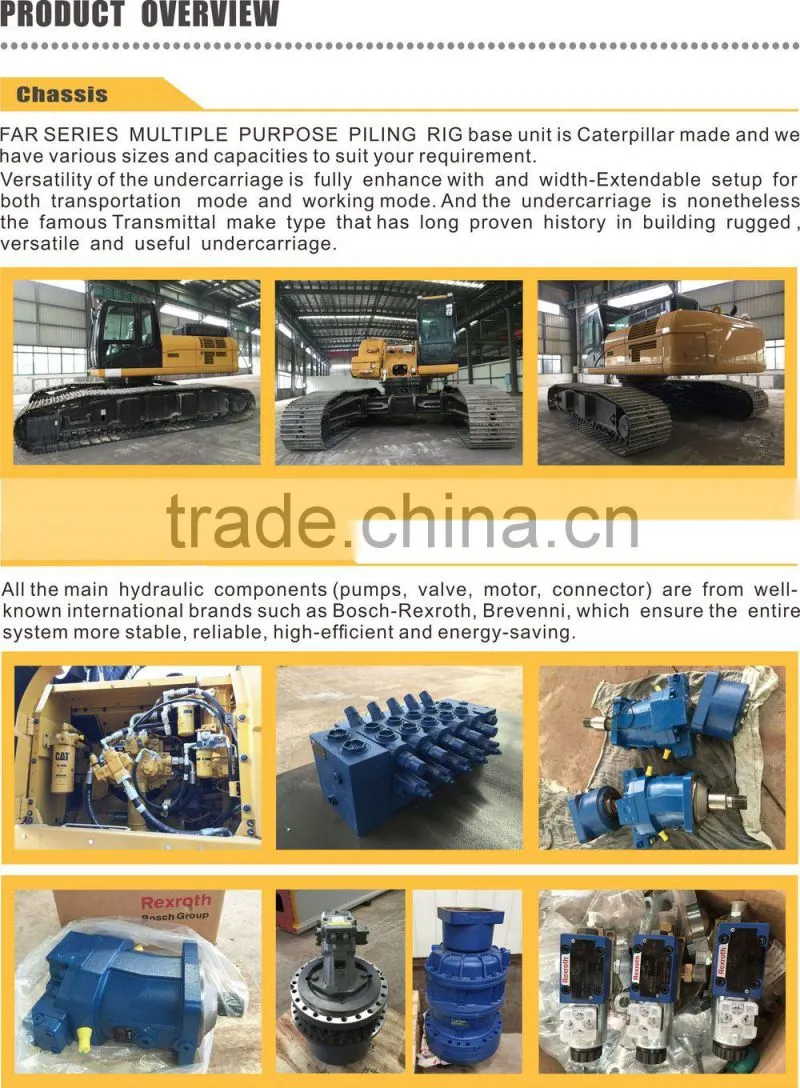

base unit is Caterpillar made and various sizes and capacities to suit your requirement.
Versatility of the undercarriage is fully enhance with and widthextendable setup for both transportation mode and
working mode.And the undercarriage is nonetheless the famous Transmittal make type that has long proven history in building rugged, versatile and useful under-carriage.

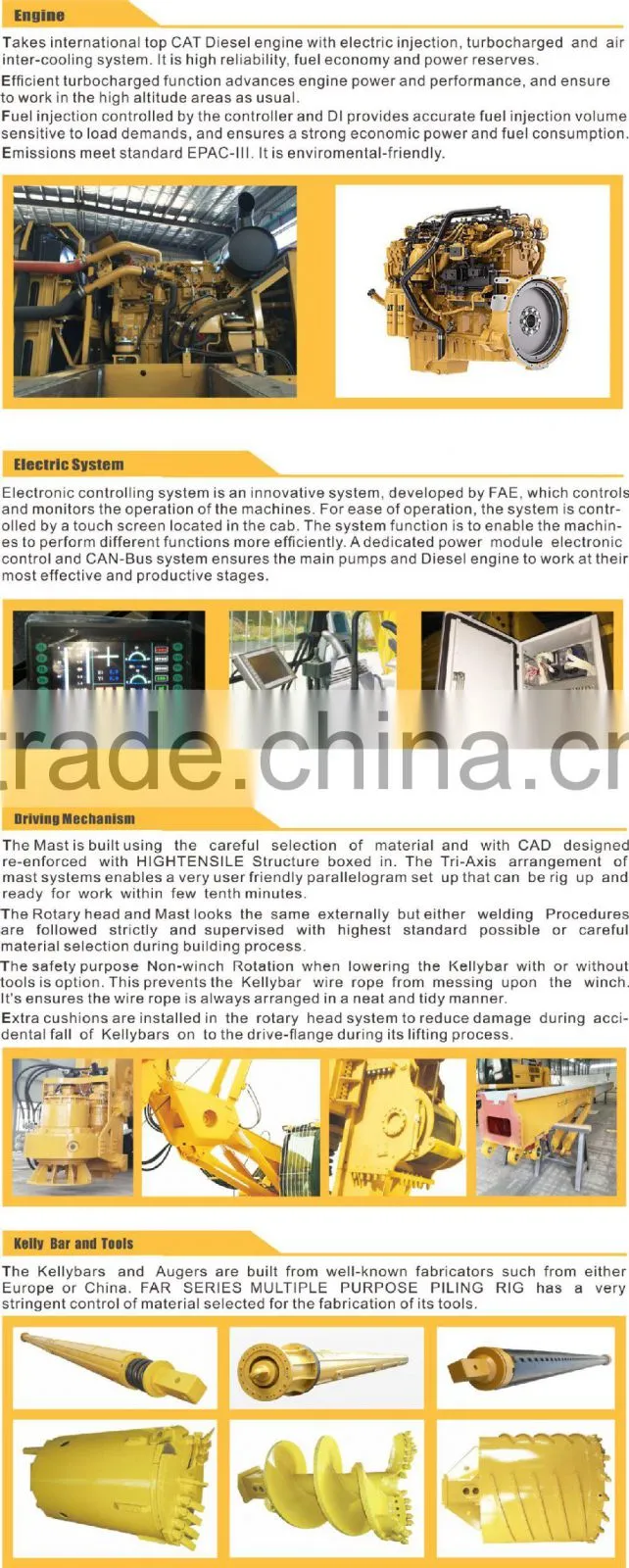

The Mast is built using the careful selection of material and with CAD designed reenforced with HIGHTENSILE Structure boxed in.
The Triaxis arrangement of mast systems enables a very user friendly parallelogram set up that can be rig up and ready for work within few tenth Minutes.
The Kellybars and Augers are built from well-known fabricators such from either Europe or China.
It has a very stringent control of material selected for the fabrication of its tools.
The Piling rig Rotary head and Mast looks the same externally but either welding Procedures are followed strictly and supervised with highest standard possible or careful material selection during building process.
The safety purpose Non-winch Rotation when lowering the Kellybar with or without tools is option.
This prevents the Kellybar wire rope from messing upon the winch.
It's ensures the wire rope is always arranged in a neat and tidy manner.
Extra cushions are installed in the rotary head system to educe damage during accidental fall of Kellybars on to the drive-flange during its lifting process.

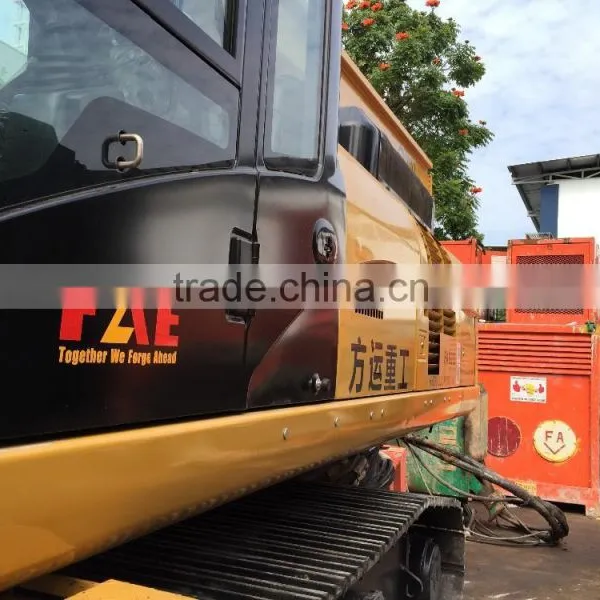

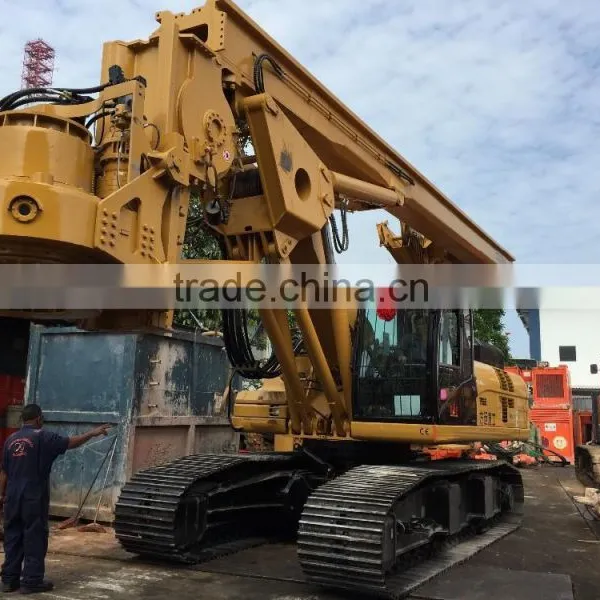

Product Photos
What are FAE piling rig dimensions ?
What are FAE piling rig type range?
What are FAE piling rig?

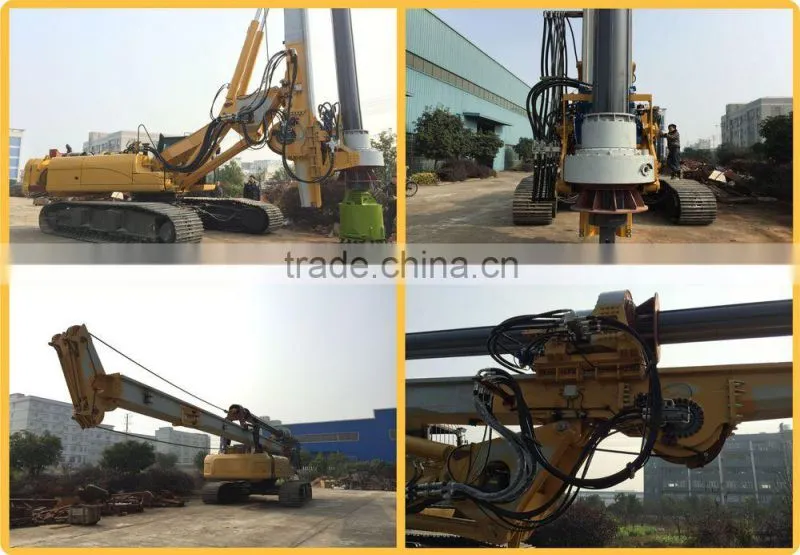

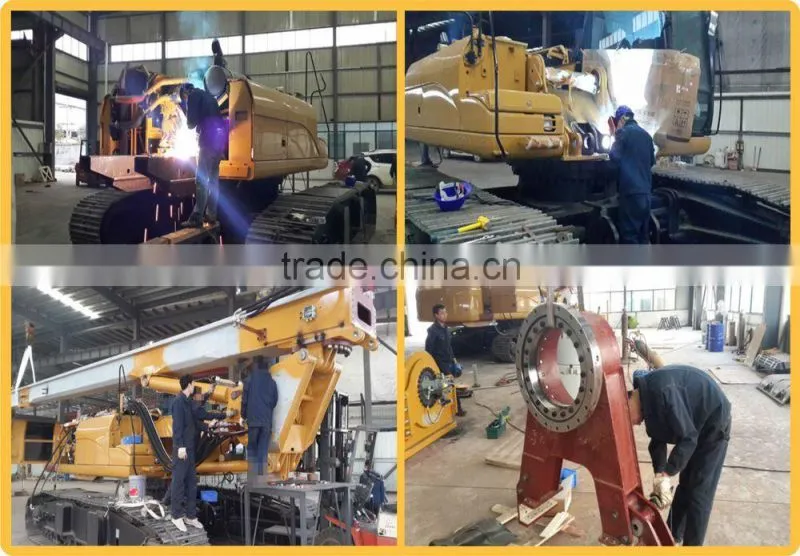

What are FAE piling rig production details ?

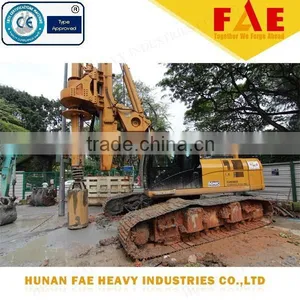

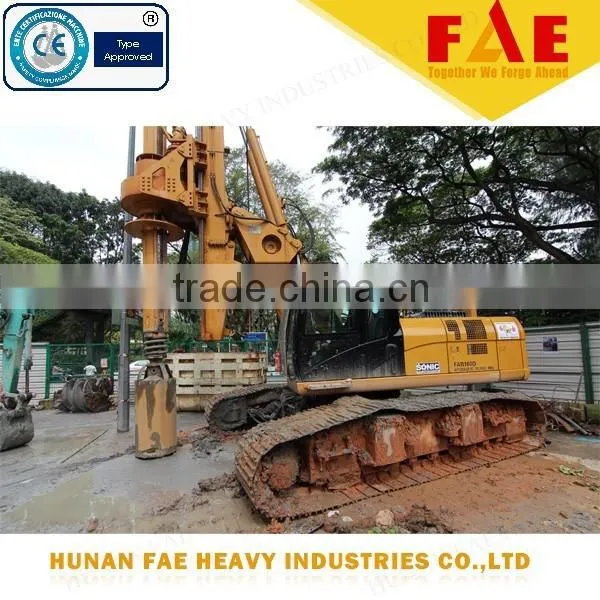

What are FAE piling rig jobsite ?
What are FAE piling rig packing?
What are FAE piling rig delivery ?
Why Choose us?
Company View
Our Certifications
What are FAE business cooperation?
FAQ
How to Contact Us?
