Producing Ftp/utp/sftp ,full Copper Cat6 Twisted Pair Cable

Specifications

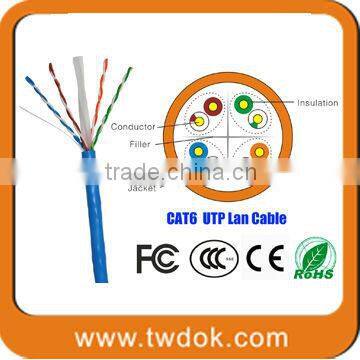

Cat6 UTP Lan Cable

Products Description

-Application

POTS.T1& T1 fractional ,ISDN basic & primary Rate.4/6 Mbps Token Ring (IEEE 802.5). 10BAST-T(IEEE802.3),100Mbpa TP-PMD.52/155Mbps ATM(ATM Forum), 100BAST-T4(fast Ethernet) 100VG-AnyLAN (IEEE802.12),100 BAST-T(Fast Ethernet),1 Gbps Ethernet(IEEE 802.3)

-Electrical Performance (At 250Mhz)

1.0-100.0 Mhz Impendance(ohms)100±15

100.0-250.0Mhz Impendance(ohms)100±22

Impendance Delay screw(ns/100m)<45

Pair to Ground Capacitance Unbalance (PF/100m)330Max

Conductor DC resistance 20%(ohms/km)<73.2

Resistance Unbalance(%)  5

Test object     jacket

Test material    PVC

Before Tensile strength(Mpa) ≥13.8

Aging Elongation(%)  ≥100

Aging condition(C*hrs)  100*240

After Tensile Strength(Mpa)  ≥85% of unaged

Aging Elongation(%)    ≥ 50% of unaged

Cold bend(-20 ± 2 °C*4hrs)   No crock

Cable Data

Conductor     Solid bare copper

AWG      23

Conductor Dia(mm)    0.57

Insulation         PE

Average thickness(±0.03mm)  0.22

Min point thickness:   0.18

Insulation  Dia(±0.3mm)  1.02

Twisting lay length(mm)    30undemeath

Cabling lay length(mm)    200 undemeath

Jacket  PVC/LSZH

Average thickness    0.5

Min point thickness  0.43

Outer Dia (±1.0mm)  6.0

Weight Nom(kg/km)    42

Core color:    Blue-white/blue

                        Orange-white/orange

                        Green-white/green

                        Brown-white/brown

Typical cable performance

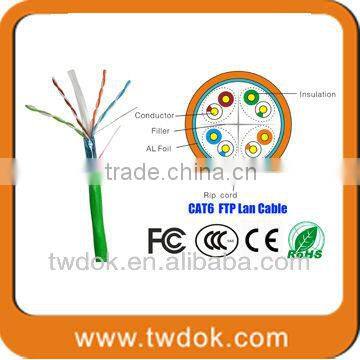

 The Pictures

The Certifications

The Exhibition

Why choose us ?

We specialize in manufacturing all types of networking products such as cables, patch panels, jacks,plugs, face plates, cabinets, fiber cables, patch cords, switches, routers, and wireless equipment.Our own brand is "TEDE". We also act as agents of many famous companies. We have 8 automatic production lines operated by skillful workers. All of our products are produced strictly according to the ISO9001 standards,we offer fine after-sales  services. If there is any question you want to know,please contact us at any time.

Orders

Our products are popular with North America, South America, Eastern Europe, Western Europe, Central America, Northern Europe, Southern Europe,the Middle East,Africa. And they achieved good reputation at the same time. We can also offer OEM service according to  customer's requirements. Always welcome your order!

Delivery

In general, we deliver goods within 7-10 days after we received your payment.Bye the way,we could provide competitive shipping terms service for u,by sea,by air,or by express delivery. Of course, you can appoint another .
