Home > Products > Network Cabling Systems > lan cable cat6 FTP/UTP pure copper with passed fluke test

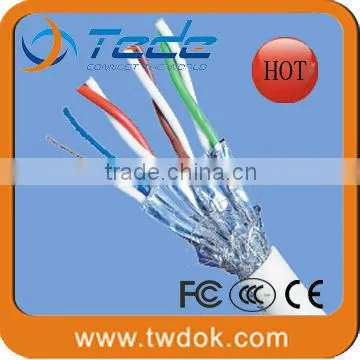

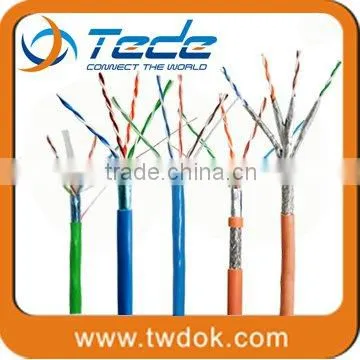

lan cable cat6 FTP/UTP pure copper with passed fluke test
- 10 Roll / Rolls per Month
- shenzhen shekou or yantian
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | TEDE | Model Number: | TD-LCSF7-0701 |
Product Description
Cat5e/cat6 lan cable
1. Application:
10GBASE-T Ethernet,1000BASE-Tx Gigabit Ethernet,10BASE-T, 100BASE-T Fast Ethernet (IEEE 802.3),100 VG - AnyLAN (IEEE802.12), 155/622 Mbps ATM,550 MHz Broadband Video,Voice, T1, ISDN
STANDARD COMPLIANCES:
All Proposed Category 7 requirements as per ANSI/TIA/EIA, ISO/IEC, and CENELEC EN Standards.
ANSI/TIA/EIA 568-B.2-10, draft
ISO/IEC 11801 CLASS F, 2nd Edition
CENELEC EN 50173-1
CENELEC EN 50288-4-1,2nd Edition
CENELEC EN 50288-4-2
Flame Retardancy is verified according to IEC 60332-1-2.
Cable Data
Conductor | Material | Bare Copper | |
Size | 23 AWG | ||
Construction | 1/0.583 ± 0.02 mm | ||
Insulation | Material | Foam-Skin PE | |
Thickness | Min. at any point: 0.369mm Average: 0.419mm | ||
Material | 1.42 ± 0.05 mm | ||
Colors | Blue/White-Blue , Orange/White-Orange | ||
Green/White-Green , Brown/White-Brown | |||
Elongation | Min. 150 % | ||
Tensile strength | Min. 0.51 Kg/mm² | ||
Shield | Al-Mylar Type/ Mylar Type | Aluminum foil on outside | |
Braid | Material | Tinned copper /Comply with international standard | |
Sheath | Material | LSZH |
|
Thickness | Average: 0.50 mm | ||
Min. at any point: 0.40 mm | |||
Diameter | 7.4 ± 0.3 mm | ||
Color | Assorted upon request | ||
Elongation | Min. 100% | ||
Tensile strength | Min. 1.407 Kg/mm² | ||
Aging at 100 for 168Hrs | Min.elongation retention:50% Min.tensile strength retention:75% | ||
