rg6 coaxial cable
- 10 Meter / Meters per Month
- Shenzhen
- Credit Card
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | TEDE | Model Number: | RG6 |
| Type: | Coaxial | Number of Conductors: | 1 |
Product Description
Specifications
coaxial cable use for Low Attenuation patented coaxial cables for underground laying of distribution network,CCTV SystemSpecifications:

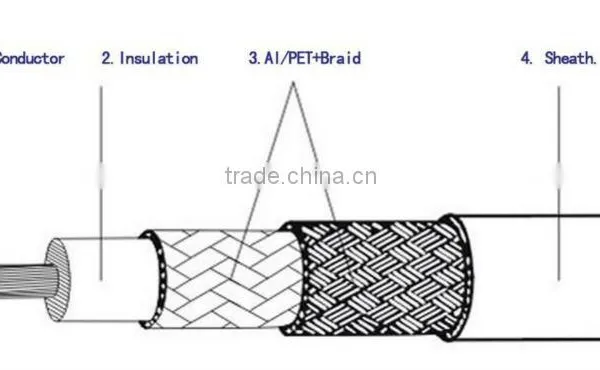

1) 1.02mmCCS +4.57mmFoamed PE +A/P(bonded)+60% AL Braiding + 6.91mmPVC
2) Customers' specifications are welcomed.
Note:
1) Center conductor:Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil:Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
And double non-bonded Al-foil are available;
3) Braiding wire:AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter:0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net:32, 48, 64, 72, 80, 96, 120,128 ,144 and more available;
6) Braiding coverage:Between 30- 97% available;
7) PVC jacket of Flame retardant .
Packing:
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing:Wooden reel, plastic reel, and paper reel available.
3) Outer packing:Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
Why choose us ?
We specialize in manufacturing all types of networking products such as cables, patch panels, jacks,plugs, face plates, cabinets, fiber cables, patch cords, switches, routers, and wireless equipment.Our own brand is "TEDE". We also act as agents of many famous companies. We have 8 automatic production lines operated by skillful workers. All of our products are produced strictly according to the ISO9001 standards,we offer fine after-sales services. If there is any question you want to know,please contact us at any time.
Orders
Our products are popular with North America, South America, Eastern Europe, Western Europe, Central America, Northern Europe, Southern Europe,the Middle East,Africa. And they achieved good reputation at the same time. We can also offer OEM service according to customer's requirements. Always welcome your order!
Delivery
In general, we deliver goods within 7-10 days after we received your payment.Bye the way,we could provide competitive shipping terms service for u,by sea,by air,or by express delivery. Of course, you can appoint another .
