Specifications

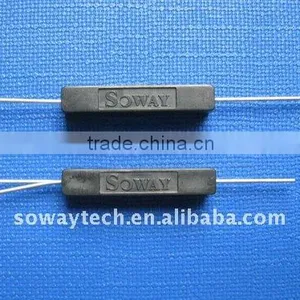

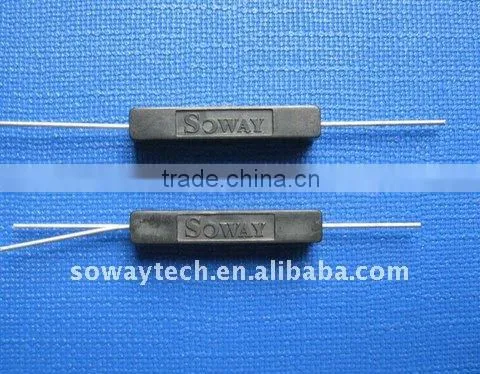

Mould magnetic plastic reed switch1.Easily mounted
2.Hermetically sealed
3.Suit to tough environment
RS-90 Mould Reed switch
Features
·Form A,B,C available
·High power switches avaible
·Various case sizes available
·Different operate sensitivities available
Applications
·Telecommunications
·Telephone hook switch, keyboard applications, micro switch
·Domestic applocances
·Door switch for washing machines, dishwashers, microware/baking ovens, refrigerators etc.
·Limit switch for low power signals
·Garage door control, lever hoists, conveyors
·Lifts/elevators
·Position indicators
Specifications
Parametes |
Units |
Value |
Test Conditions |
Contact Form |
C type contact (change over) |
||
Contact Rating |
W – max. |
3 |
|
Switching Voltage |
V – max. |
DC100 |
|
Switching Current |
A – max. |
0.25 |
|
initial Contact Resistance |
– max. |
0.2 |
|
Insulation Resistance |
– min. |
109 |
|
Contact Capacitance |
pF – typ. |
0.8 |
|
Electrical Life |
Cycles – min. |
8 10 |
10mV, 10mA |
Operating Temperature |
°C |
-20 ~ +80 |
|
