Specifications
Reed sensor/ Reed switch1.RoHS compliant, ISO9001 certification.
2.High sensitivity,safety, excellent performance.

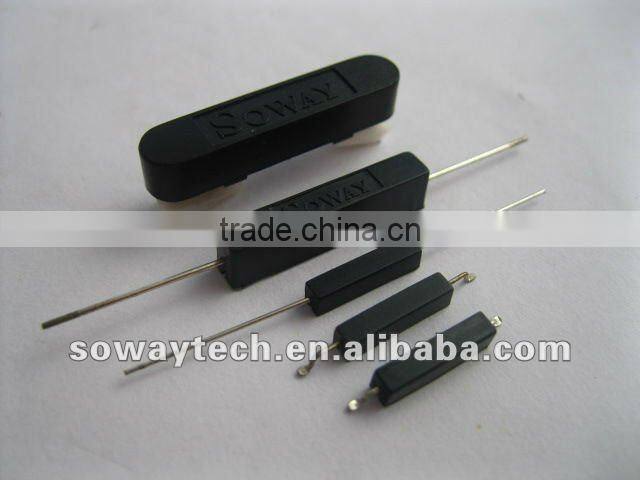

PCB mounted reed switch/ reed sensor:
(1)Reed sensor is applicable for position determination of pneumatic and /or hydraulic cylinder and piston pump. It also can be used as limit switch.
(2) When the magnetic object approaches, the reed closes and sends out switch signal through magnification.Compared with inductive sensor. it has the following strong points: can be installed in metal closely and side by side and detect through metal object.
(3)Its detection distance subjects to the intensity of magnetic field of detected object. Reed sensor is not applicable in the occasion of severe vibration.
(4)Choice of normal open or normal close.No standby power requirementCustomer defined sensitivity.
Hermetically sealed, suit to tough environment and long life.
Technical Parameter:
Item | Unit | Nominal |
Operate Range | AT | 07-10 |
Switch Power(Max) | W | 10 |
Switch Voltage(Max) | V | DC200 AC140 |
Switch Current(Max) | A | 0.5 |
Carry Current(Max) | A | 0.5 |
Contact Resistance(Max) | mOh | 200 |
Insulation(Min) | Oh | 106 |
Actuation time | ms | 0.3 |
Release Time(Max) | ms | 0.7 |

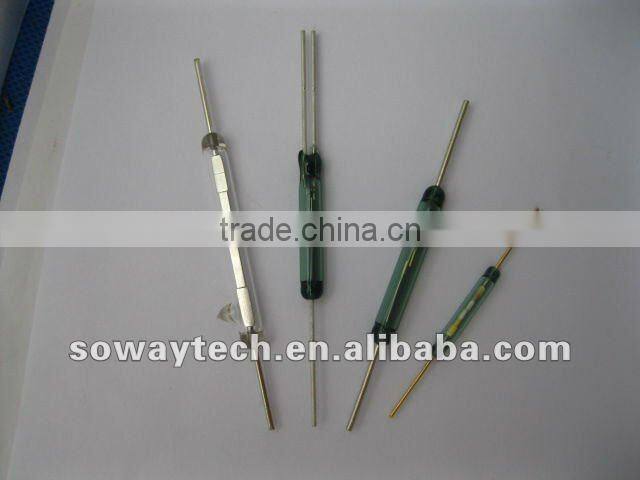

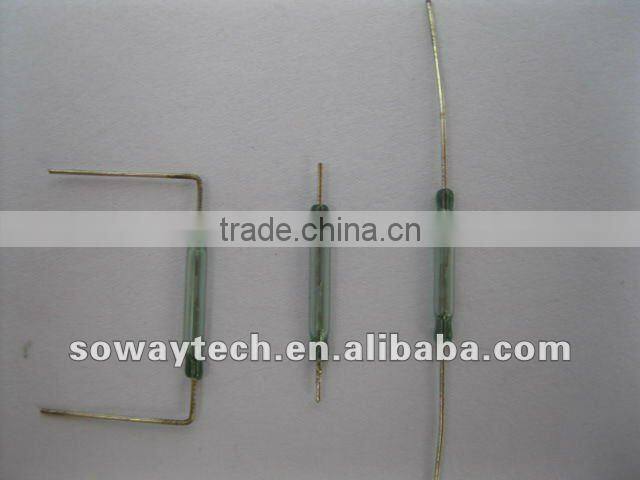

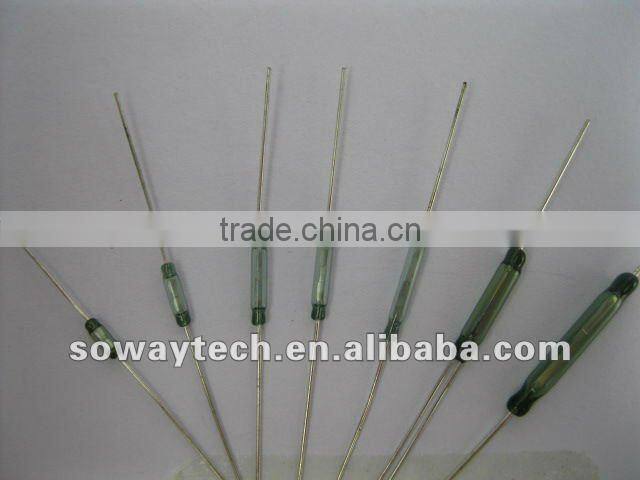

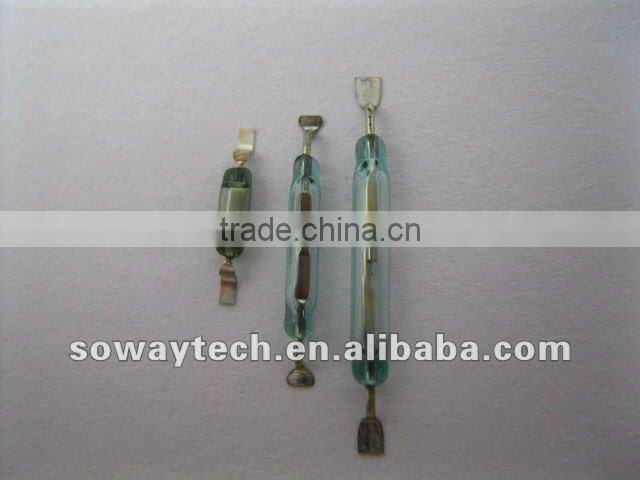

More types of Magnetic reed switch/reed sensor:
SOWAY TECH LIMITED:
Market leader of Lvdt sensor,Magnetostrictive linear position sensor,Liquid level controller/transmitters/switch,Capacitance position and level sensor,Ultrasonic displacement sensor/level meter for industrial,mobile and oil,gas,fuel markets.
Know more informations please visit our website:
