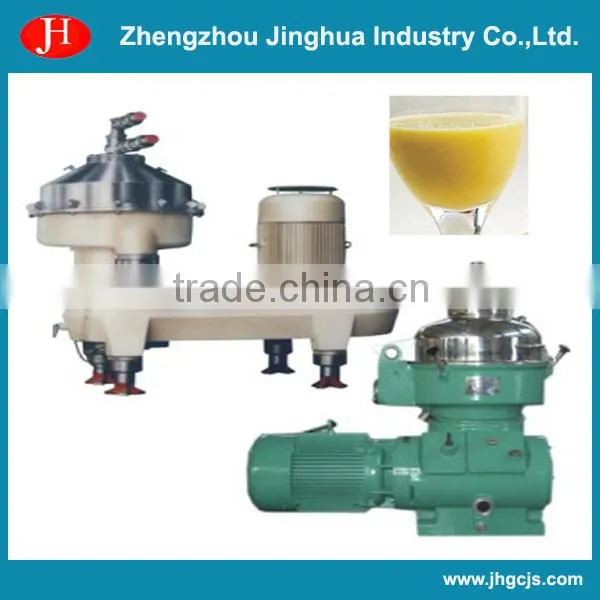

DPF Series Disc centrifuge separator for canna starch plant
DPF445 corn starch disc separator
Disc separator is mainly used in the starch production that coming from maize, manioc, wheat, potatoes or other material sources for separating, concentrating and washing of starch and protein. The machine can also be applicable to the pharmaceutical, chemical and food industries for producing of material sources which are adapted to the functions of this machine.
Main parameter of disc Separator model DPF445, DPF530 and DPF550(
Alfa Laval type)
Main parameter |
DPF445 |
DPF530 |
DPF550 |
Bowl Inner Diameter |
445 mm |
530 mm |
550 mm |
Disc Number |
73 |
80 |
110 |
Bowl Rotating Speed |
5100 rpm |
4650 rpm |
4500 rpm |
Separating Factor |
6480 |
6400 |
6230 |
Disc: Diameter |
310 mm |
|
429 mm |
Throughput Capacity |
35000~40000 L/h |
45000 L/h |
75000 L/h |
Starting Time |
≈2 min |
≈ min |
≈4 min |
|
Motor Power Nominal Speed |
37 Kw 1470 rpm |
37 Kw rpm |
55 Kw 2920 rpm |
Nozzle |
10 |
10 |
12 |
Overall Dimension (L×W×H) mm |
1503×1129×1516 |
1430×1174×1544 |
2044×1320×1954 |
Weight (kg) |
1100 |
1550 |
2100 |

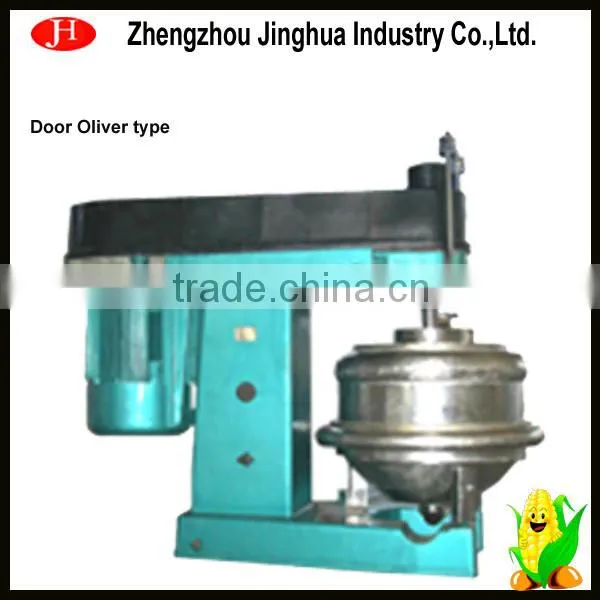

Besides: Model DPF500, DPF800,DPF1000(Door Oliver Type)
Main parameter |
DPF500 |
DPF800 |
DPF1000 |
Bowl Inner Diameter |
470 mm |
810 mm |
1000 mm |
Bowl Rotating Speed |
5100 rpm |
3000 rpm |
2700 rpm |
Nozzle |
10 |
20 |
30 |
Separating Factor |
6900 |
4950 |
4150 |
Throughput Capacity |
50000 L/h |
130000 L/h |
240000 L/h |
Motor Power |
37 Kw |
110 Kw |
250 Kw |
Overall Dimension (L×W×H) mm |
2013×786×1714 |
2808×1575×2319 |
3950×2050×3050 |
Weight |
1900kg |
6550kg |
1000kg |
Simple Canna edulis Ker Starch Production Line
Canna edulis Ker - hydraulic transport - cleaning and conveying - second cleaning - peeling -rasper or grinder - slurry washing - de-sanding - refining and concentration - vacuum dehydration - airflow drying - packaging - storage
View more products please visit our website:
https://img13.fr-trading.com
Zhengzhou Jinghua Industry Co.,Ltd. is a professional starch engineering corporation. Depending on the unique advantage and strong strength of Hennan University of Technology (the former Zhengzhou Grain College), ZZJH combines scientific research ,industry and trade as a whole ,which is mainly engaged the working of factory layout, technology design ,complete equipment manufacturing and commissioning ,new product developing etc.
The company was founded in 1996, office address is No.238, Tongbai South Road, Zhengzhou City, Henan Province ,China ,and factory is located in Zhengzhou High-tech Development Zone , No.25, Wutong street.
1.Flow chart and factory design layout
2.Equipments manufacture
3.Installation and commissioning
4.Technical service
5.After-sales service:engineers available to service machinery overseas.
