vacuum filter/vacuum rotary drum filter/rotary vacuum filter/ 0.5-1TPH small capacity rotary vacuum filter
Seller: Zhengzhou Jinghua Industry Co.,Ltd.
Tel:0086-371-68853500 Fax:0086-371-68853570
Add:No.238,Tongbai South Road, Zhengzhou City, Henan Province,China
Introduction of rotary vacuum filter
Zhengzhou Jinghua Industry Vacuum filter combines the latest technology and years experience into a whole, which is widely used for starch milk dewatering in starch processing machinery.
Features of vacuum filter
1. Fully stainless steel with no corrosion to the raw material
2. Compact structure and nice design
3. Speed of rotating drum can be adjusted according to actual site.
4.Material uploaded through blade, which is made of high rigid alloy and can be adjusted.
5. Low energy consumption, small area.
6. Stable operation
Main Technical Parameters of rotary vacuum filter
Model |
XDL12 |
XDL20 |
XDL24 |
Item | |||
Filter area(sq.m.) |
12 |
20 |
24 |
Vacuum degree(MPa) |
0.04~0.07 |
0.04~0.07 |
0.04~0.07 |
Content of solid(%) |
≥60 |
≥60 |
≥60 |
Feeding density(Be°) |
16~17 |
16~17 |
16~17 |
Capacity(t/h) |
4 |
6 |
8 |
Power(kw) |
3 |
4 |
4 |
Drum rotary speed(r/min) |
0~7.9 |
0~7.9 |
0~7.9 |
Weight(kg) |
3000 |
4000 |
5200 |
Dimension(mm) |
3425*2312*2213 |
4775*2312*2213 |
4785*2630*2600 |

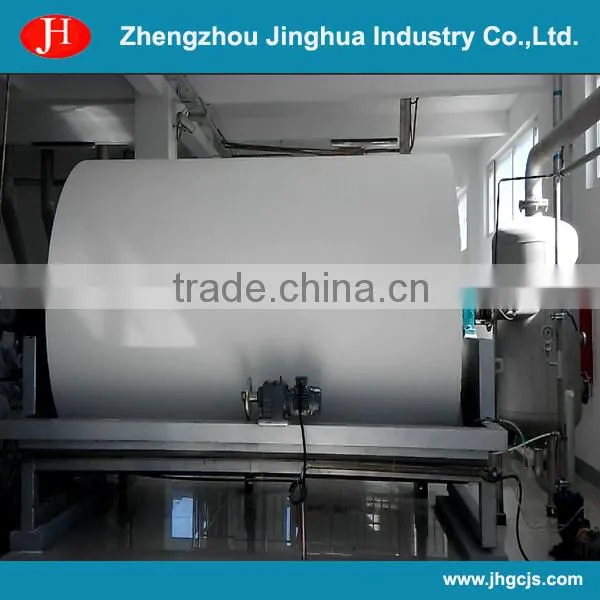

Products Show of rotary vacuum filter
If you are interested in our machines, please feel free to contact us!
Zhengzhou Jinghua Industry Co.,Ltd.
Tel:0086-371-68853500 Fax:0086-371-68853570
Add:No.238,Tongbai South Road, Zhengzhou City, Henan Province,China
