Producing Standard: According to industry standard YS/T431-2000, Aluminum and aluminum alloy plates, coil coated sheet and strip, this standard equal to British standard, BS EN 1936-1997, Aluminum and aluminum alloy plates, coil coated sheet and strip for general applications-specifications.
Color coated Aluminum coil details
1) The types of coating: PE and PVDF mainly.
2) Thickness paint layer: PVDF: more then 25 micron; PE, more then 18 micron.
3) Paint: PPG or Nippon.
4) Interior diameter: 405mm, 505mm, 150mm etc.
5) Width: from 30mm-1600mm, thickness: 0.02mm to 1.5mm,
6) Color: RAL or as per customers' counter sample.
7) Coating hardness: (pencil hardness) more than 2H
8) Impact resistance: no cracking and peeling (50kg/cm, ASTMD-2794:1993)
9) Flexibility (T-bend): no more than 2T
10) MEK resistance: more than 100
The base of color coated aluminum coil details
1) Temper of Color coated Aluminum Coil: H14, H18, H24, mainly
2) Alloy of Color coated Aluminum Coil: 1100, 1050, 3003,3004,3005 mainly
3) Origin: China
4) Minimum order quantity: 5 tons each size
5) Delivery time: Within 20 days
6) Payment term: T/T, irrevocable L/C at sight
7) Application: decorative, aluminum curtain wall, aluminum composite panel (ACP), aluminum spacer, aluminum embossed sheet, aluminum tread plate
Color coated Aluminum coil/sheet Application
Measurement Deviation
The thickness tolerance for cans lid, rings of 3003, 3004, 3104, 5042, 5182 and 8011 etc is ±0.01, the thickness tolerance of the base materials for Aluminum-plastic composite panel(before coating) should be in line with the sheet below in YS/T431-2000.
The width and length tolerance for color coated aluminum sheet should be in line with the sheet below
Alloy |
Length tolerance allow(mm) |
Width tolerance allowed(mm) |
||
Length ≤2000 |
Length >2000 |
Width ≤1000 |
Width>1000 |
|
3004, 3104, 5042, 5182, 8011 |
+5 0 . |
+0.0025×length 0 |
+1 0 |
+3 0 |
others |
+10 0 |
+0.005×length 0 |
||
| ||||
Mechanical properties after coating

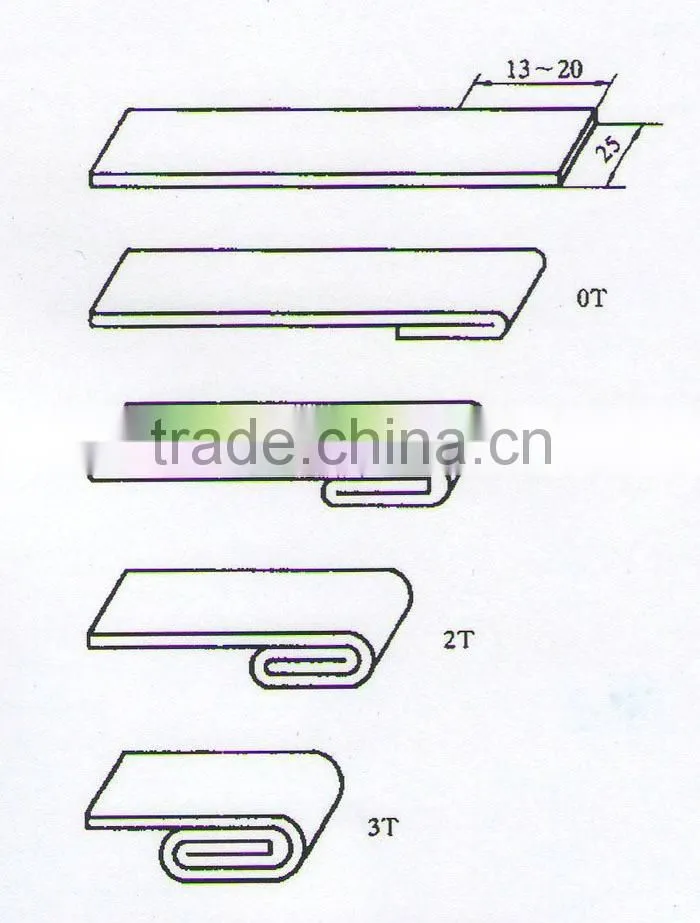

Color flexibility
The flexibility of the organic coating is assessed by
subjecting the material to a bend test.
The bend test may be carried out according to
ISO 1519. It may be carried out either in the
longitudinal or the transverse direction unless
otherwise specified.
As an alternative to the devices covered in
ISO 1519 the following method may be used to carry
out the bending

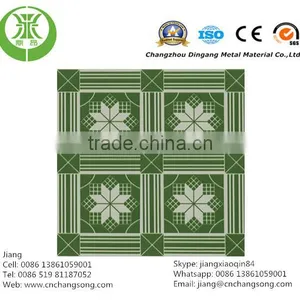

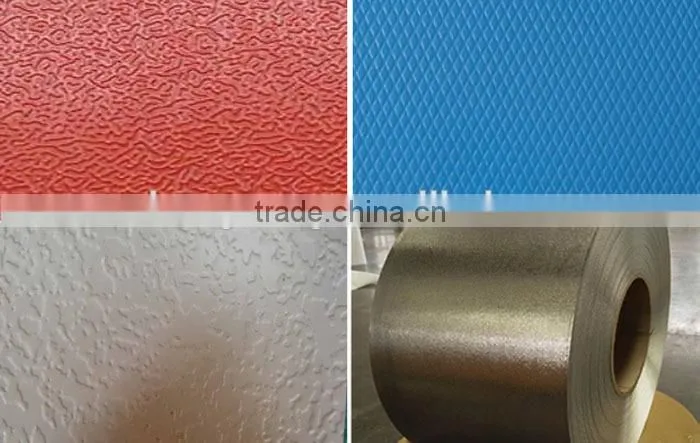

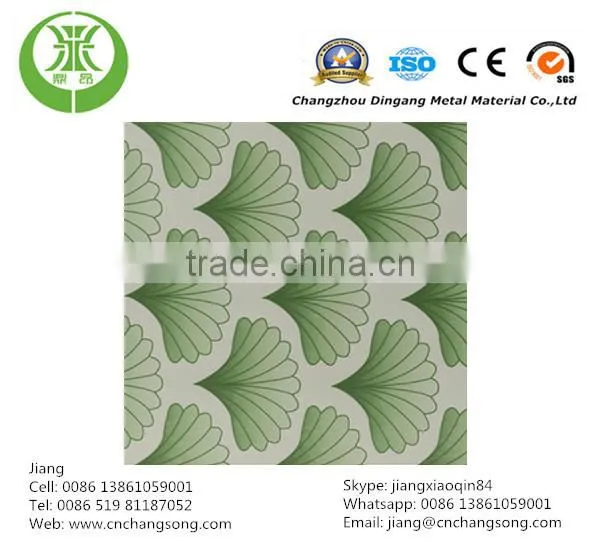

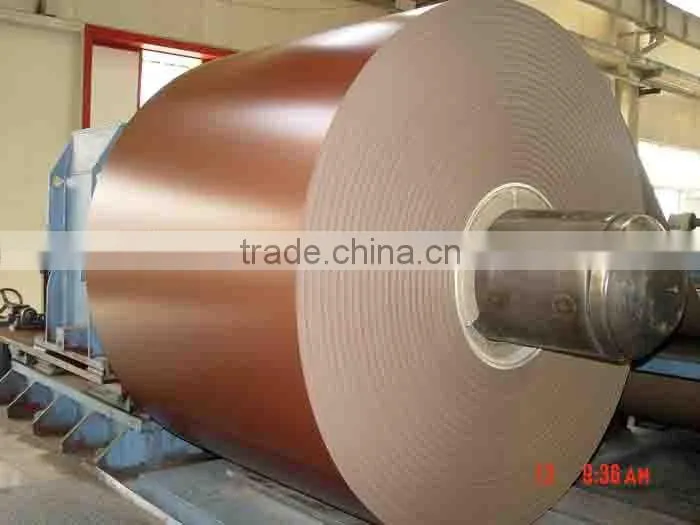

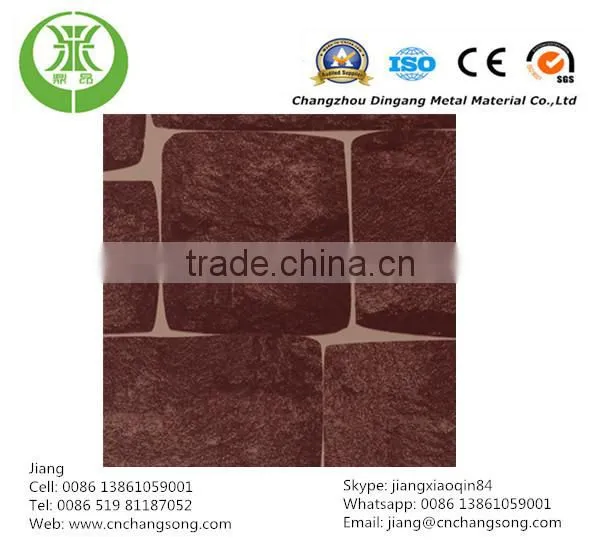

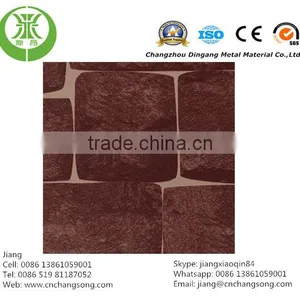

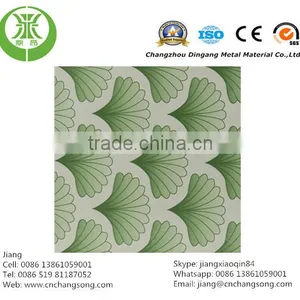

Color coated aluminium coil picture

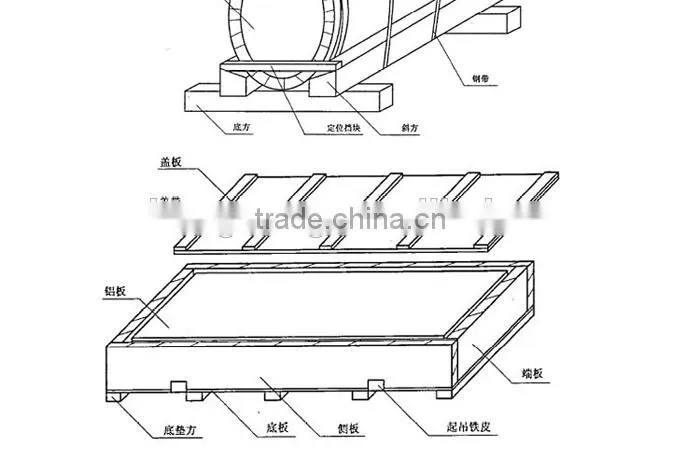

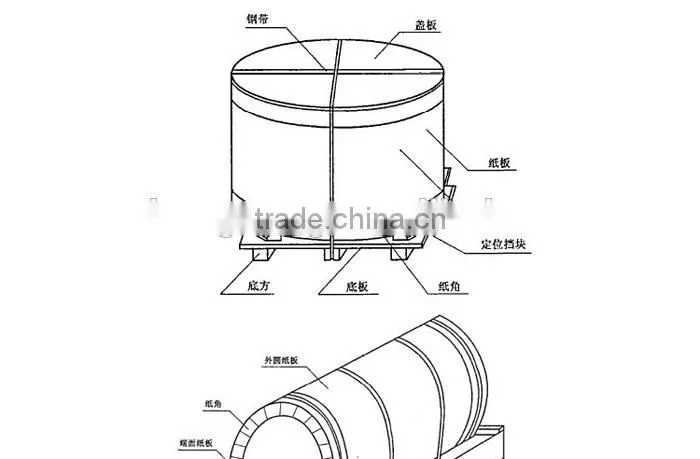

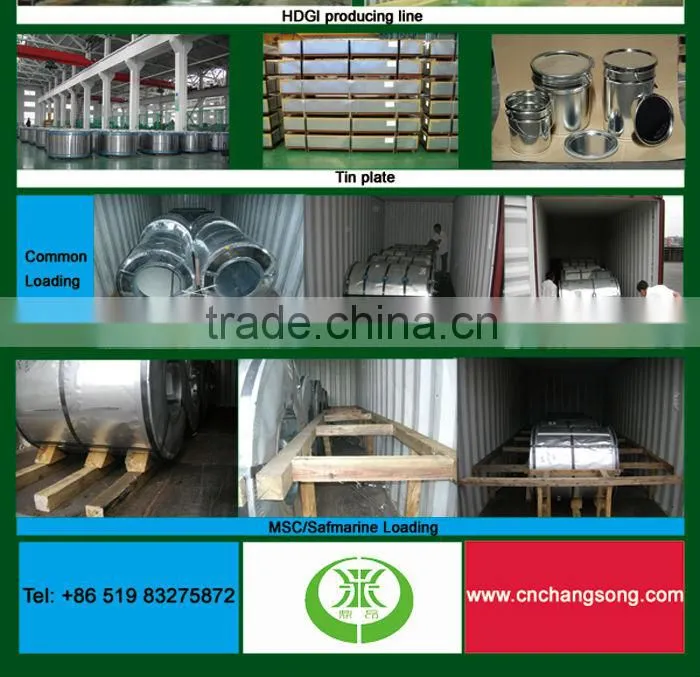

Transport and packing
GB/T 3199-2007 Wrought aluminum and aluminum alloy products—packing, marking, transporting and storing will be applied.

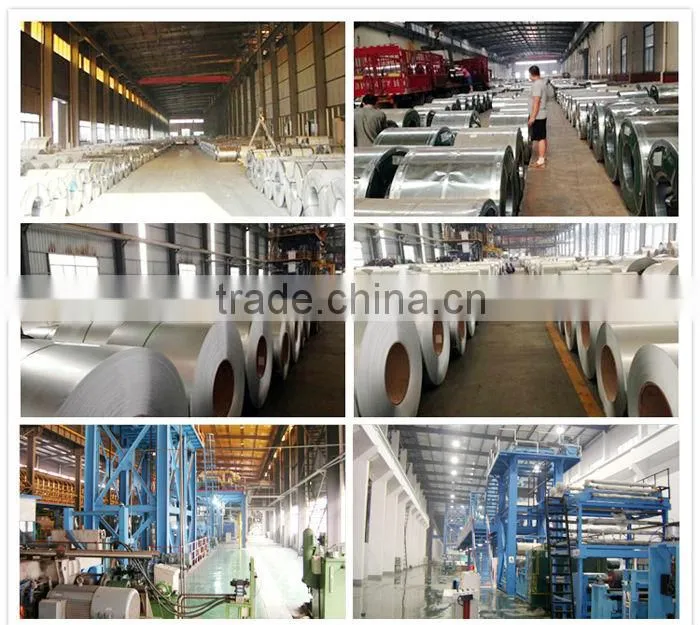

Changzhou Dingang Metal Material Co., Ltd., located in Changzhou city of Jiangsu province, 200KM from Shanghai. The company is a market leader in manufacturing galvanized steel coil, aluzinc steel coil, pre painted steel coil, aluminum coil and pre painted aluminum coil since 1991.
The company provides a comprehensive range of application in many fields, such as buildings and construction, transportation, appliances, etc. With regards to the management of process, the company runs following the ISO9001:2008 and ISO14001:2004 standards, furthermore, the company is audited supplier which was presented by SGS and Made-in-China, ranking tenth in exporting value in Zhonglou District of Changzhou city in 2010.
Registered capital:15 million U.S. dollar (Equivalent to 95 million Yuan)
Main business: HDGI, HDGL, PPGI, PPGL, Aluminum coil, Pre painted aluminum coil.
Equipment and technology: Introducing Siemens electric control system in production lines.

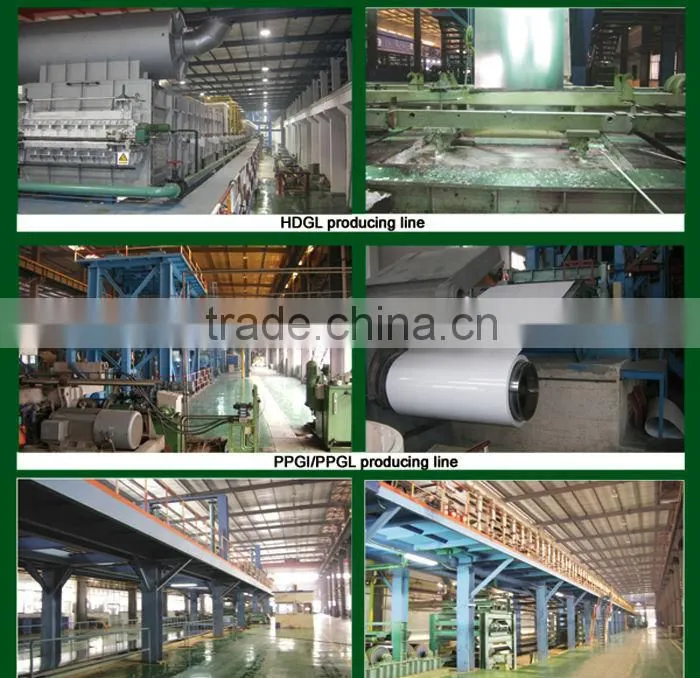

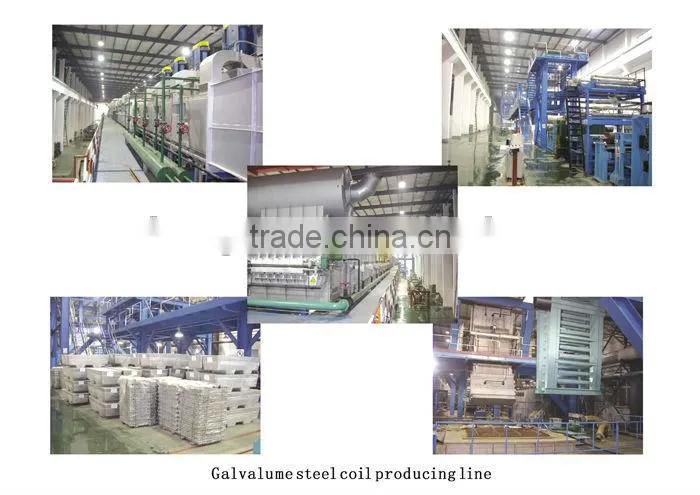

Productive capacity: One full automatic galvanizing production line with output of 200,000 tons/year; two full automatic aluzinc steel production lines with output 350,000 tons/year, three full automatic color coating production lines with output of 450,000 tons/year; two pre painted aluminum lines with output 150, 00 tons/year.
Focus on developing wide production and improving quality, we are working-on-it all the time, we hope you can visit or contact us, and give us your valuable suggestions.

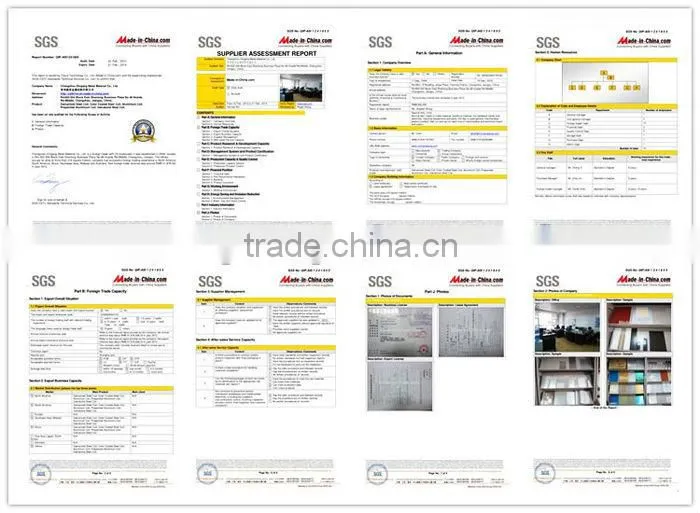

Certificate
