Color Coated Aluminum Checkered Sheet

Color Coated Aluminum Checkered Sheet photo-1

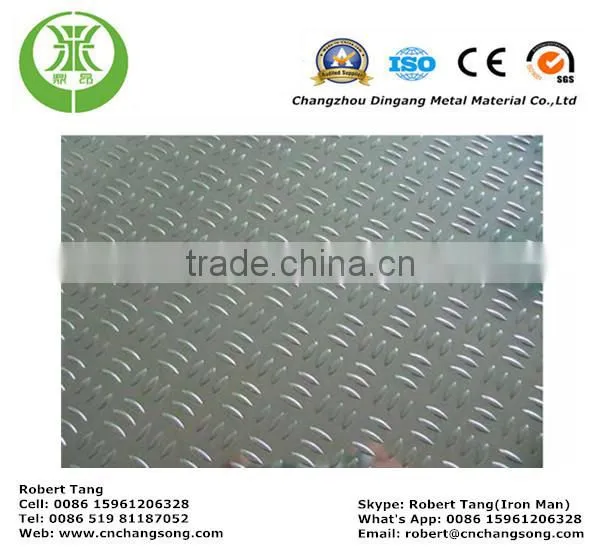

Color Coated Aluminum Checkered Sheet photo-2

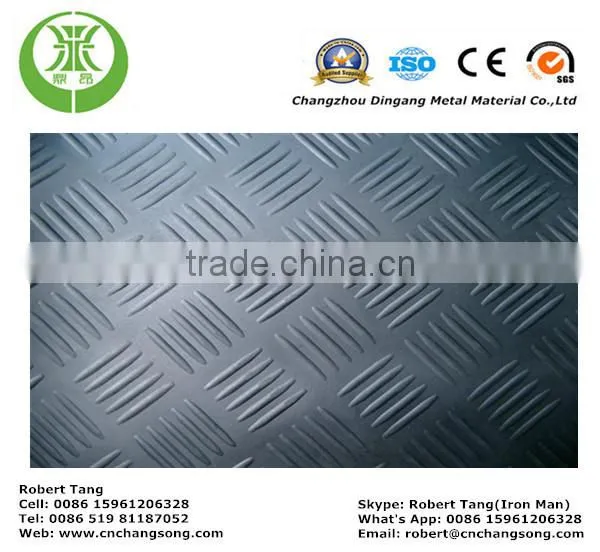

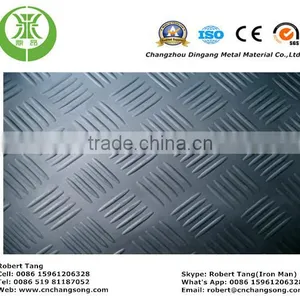

Color Coated Aluminum Checkered Sheet photo-3

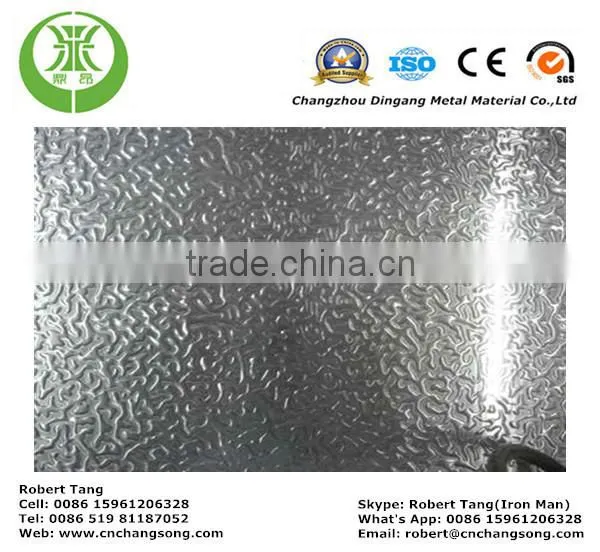

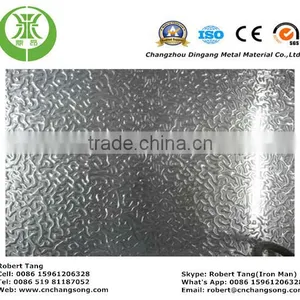

Color Coated Aluminum Checkered Sheet photo-4
Color Coated Aluminum Checkered Sheet photo-5
US$ 3,660 - 3,680 MOQ: 2 Tons
Key Specifications
Get Latest Price
Grade:
1000 Series
Temper:
O-H112
Type:
Plate
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Grade 1000 Series
Temper O-H112
Type Plate
Application Building
Thickness 0.8-3.0mm
Width 500mm-2800mm
Surface Treatment Other, coated and embossed
Alloy Or Not Is Alloy
Place of Origin Jiangsu, China
Brand Name Dingang
Model Number 1050/1060/1100/3003/5052
Product Description

Color coated aluminum checkered sheet is a kind of deeply-processed products from aluminum plain plate,which can be used for lots of production project,such as corrosion protection and heat preservation,indoor and outdoor decoration.And it is productive material for tank of refrigerator and freezer.Also it could be use for construction of upscale structure. Compared with other steel,it is the most popular and nice material due to the excellent property.The first feature born of its stable personality structure.Secondly,the surface of color coated aluminum own erosion resistant property,via special treatment,the warranty could prolong to 30 years.Last of all,the density is the lowest among metal materials when volume is fixed.

Brand Name
Dingang
Standard
ASTM-B209. EN573-1, GB/T3880.1-2006
Alloy
1000-8000 Series
Temper
HO, H12, H14, H16, H18, H22, H24, H26 And Etc
Thickness
0.8-3.0mm
Width
Within 2200mm
Coil Internal Diameter
405/505/605mm
Tolerance
Thickness Tolerance +/-1.5%, Width Tolerance +/-1mm
Type Of Coating
PE&PVDF Mainly
Delivery Details
Within 25 Days After Receive The Advance Payment

Packing

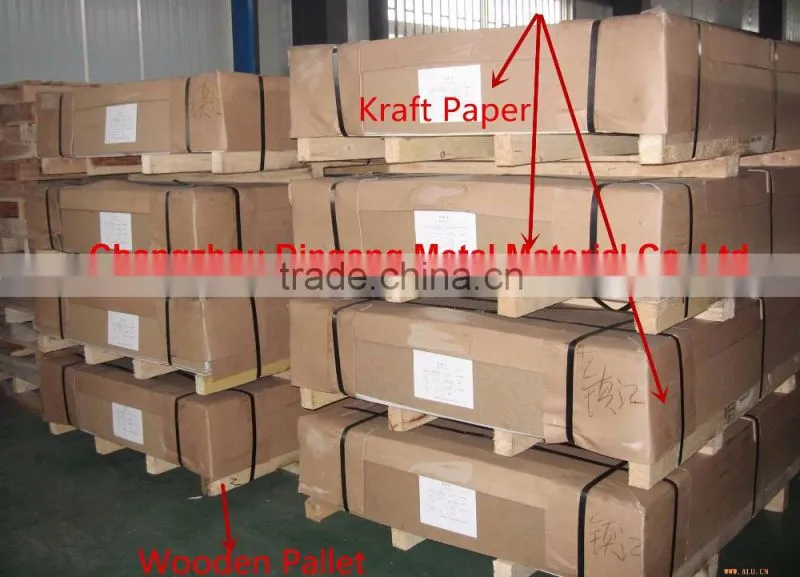

Standard Seaworthy Export Packing:Uncoiled And Packaged In Stack,All Packaging,Transportation And Storage Comply With GB/T3199 Standard,Or As Your Requirements.

Application
With The Antiskid And Decorative Character,Checkered Plate Is Widely Used In Container Sheet,Ship Building, Boiler, Automobile And Tractor,The Train And Architecture Industries,Such As Floor Board, Factory Stair Boards, Deck Board, Architecture Industries,Lorry Beds,Elevator Floors And Etc.

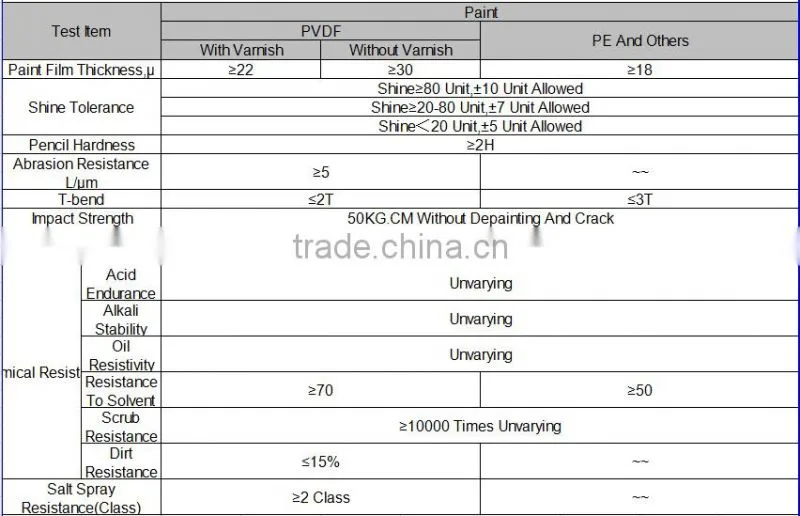

Paint Performance

Color Flexibility

The flexibility of the organic coating is assessed by subjecting the material to a bend test.
The bend test may be carried out according to ISO 1519. Also may be carried out either in the longitudinal or the transverse direction unless otherwise specified.
As an alternative to the devices covered in ISO 1519 the following method may be used to carry out the bending

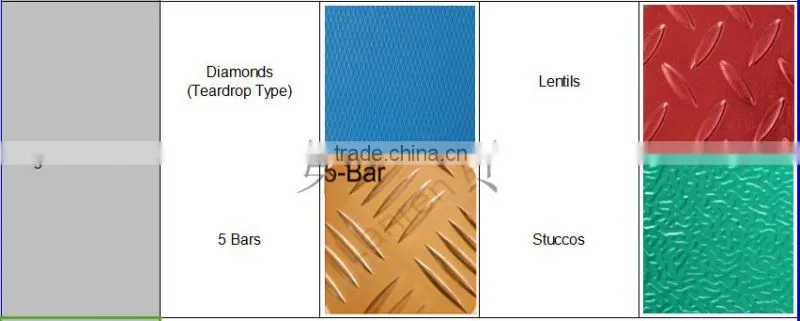

Design Patterns
Packing
