Specifications
1) Titanium Foil/strip2) Grade: GR1, GR2,GR5
3) Density: 4.51g/cm3
4) Standard: ASTM B265 or as required
Titanium foil Product Details :
Product name: Price for titanium grade 5 alloy foil/strip 0.05mm
Other names: titanium grade 5 foil;titanium alloy foil
Standard: |
ASTM B265 ASTM F67 GB/T ASTM B265, industrial standard ASTM F67, medical standard for pure titanium ASTM F136, medical standard for alloy titanium |
Technique: |
Hot/Cold Rolled |
Surface: |
As-rolled, acid washing, sandblasting, machined or polished, brush coating. Free from contamination, oil, scratches and other defects. |
Grade: |
Gr1 Gr2 Gr4 Gr5 Gr7 Gr9 Gr12 Gr23... |
Form: |
square, rectangular or circular shapes |
Services: |
Slitting, Coating, Coloring |
Application: |
They can be used in aircraft engines and parts, chemical equipment parts (reactors, pipes, heat exchangers and valves, etc.), ship hulls, bridges, medical implants, artificial bones, sporting products and consumer goods. |
Main Markets: |
North America, South America, Eastern Europe,Southeast Asia, Mid East, Eastern Asia, Western Europe,Northern Europe |
Titanium foil Sizes:
Size(mm):thinkness:0.01~0.02*width:30~100*length≥500
thinkness:0.03~0.1*width:50~300*length≥500
Titanium foil Tensile requirements:
grade |
Tensil strength(min) |
Yeild strength(min) |
Elongation (%) |
||
ksi |
MPa |
ksi |
MPa |
||
1 |
35 |
240 |
20 |
138 |
24 |
2 |
50 |
345 |
40 |
275 |
20 |
5 |
130 |
895 |
120 |
828 |
10 |
7 |
50 |
345 |
40 |
275 |
20 |
9 |
90 |
620 |
70 |
438 |
15 |
12 |
70 |
438 |
50 |
345 |
18 |
Titanium foil feather:
1.Low Density and High Specificate Strength
2.Excellent Corrosion Resistance
3.Good resistance to effect of heat
4.Excellent Bearing to cryogenic property
5.Nonmagnetic and Non-toxic
6.Good thermal properties
7.Low Modulus of Elasticity

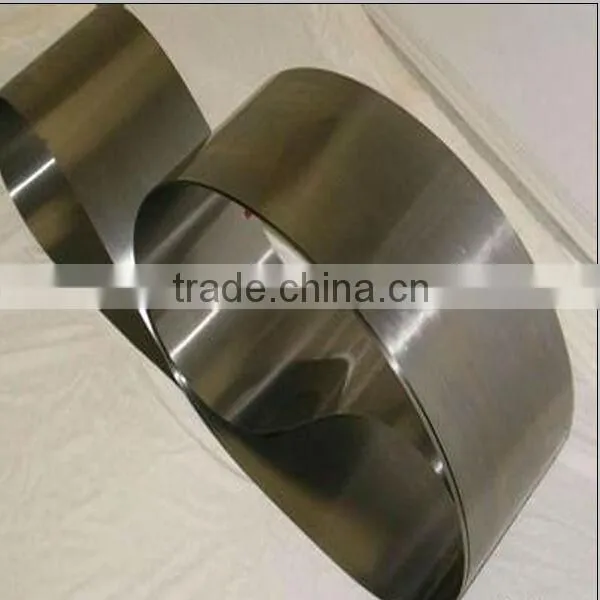

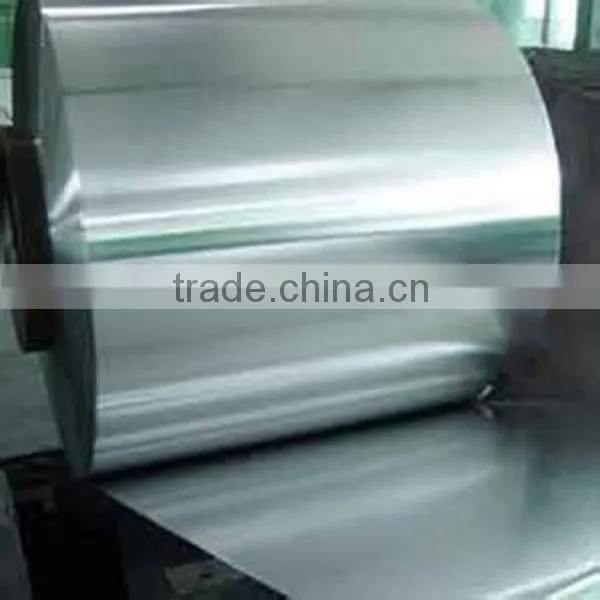

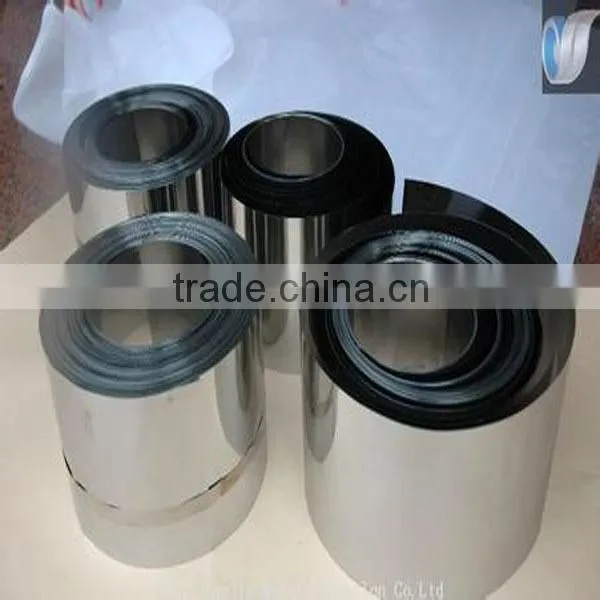

Product photos:
