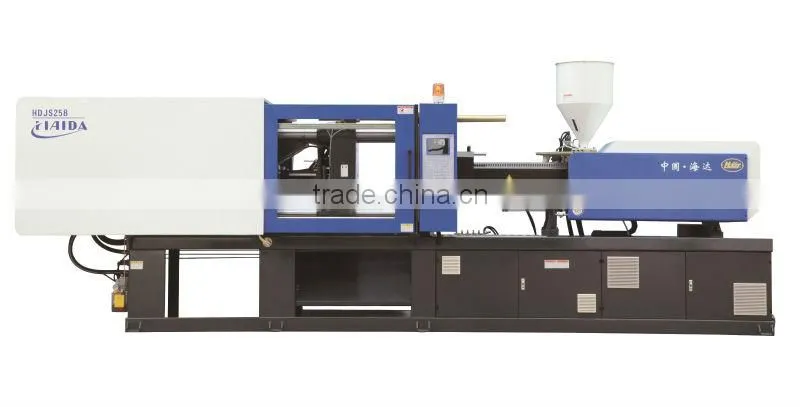

PVC PIPE FITTING MACHINE/HDJS258
ITEM |
UNIT |
DATA |
|||
Injection |
Screw Diameter |
mm |
|
60 |
|
Screw L/D Ratio |
L/D |
|
19.7 |
|
|
Injection Volume |
cm3 |
|
692 |
|
|
Shot Weight |
g |
|
630 |
|
|
Injection Pressure |
Mpa |
|
155 |
|
|
Clamping |
Clamping Force |
KN |
2580 |
||
Opening Stroke |
mm |
545 |
|||
Mould Thickness(Min-Max) |
mm |
220-580 |
|||
Space Between Tie-Bars |
mm |
575×575 |
|||
Ejector Force |
KN |
62 |
|||
Ejector Stroke |
mm |
165 |
|||
General |
Motor Power |
KW |
22 |
||
Heater |
KW |
18 |
|||
Pump Pressure |
Mpa |
16 |
|||
Machine Dimension |
m |
6.3×1.5×2.3 |
|||
Machine Weight |
T |
7.8 |
|||
Mould Orientation Ring Diameter |
mm |
Φ160 |
|||
Nozzle Radius |
mm |
SR15 |
|||

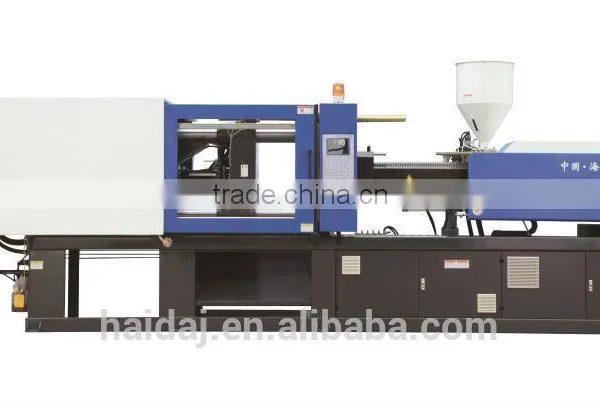

HDJS SEVRO MOTOR MACHINE/HDJS258:
SUPERIOR ENERGY EFFICIENCY
To save power consumption
Cooling phase, the motor does not need to work,powe consumption is 0. Compared with the traditional injection molding machine can save electricity <80%
To save water and fuel
Compard with the traditional hydraulic power system of the hydraulic oil consumption reduce 1/4~1/3, can achieve without cooling, thus greatly saving water. Living longer 2~3 Double.
IMPROVE THE PRODUCTION EFFICIENCY
Quick response and high efficiency
Injection molding machine to achieve maximum output in 0.05s
50rpm can be up to 140bar
High repeat precision,save raw materials
Repeated injection precision can reach <=3%
Pressure is stable, improve the quality of molding
Pressure fluctuation quantity is less than +/-0.5bar

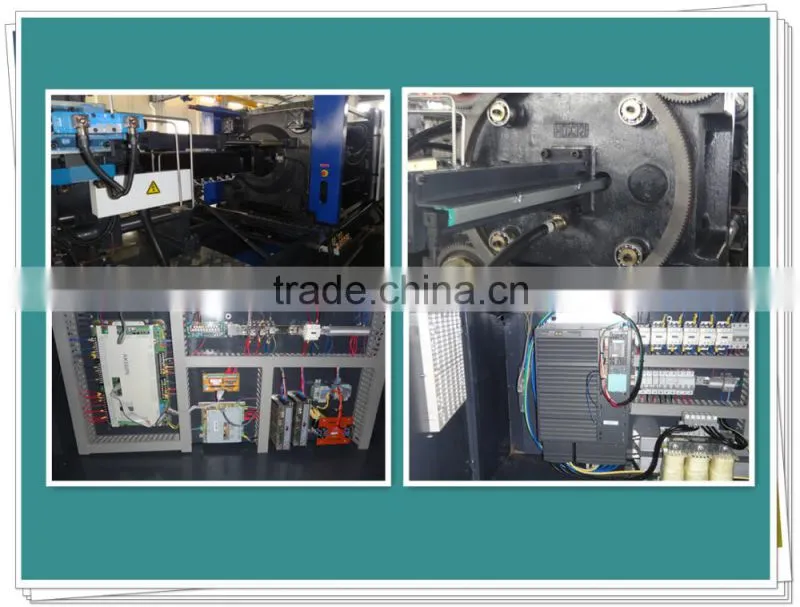

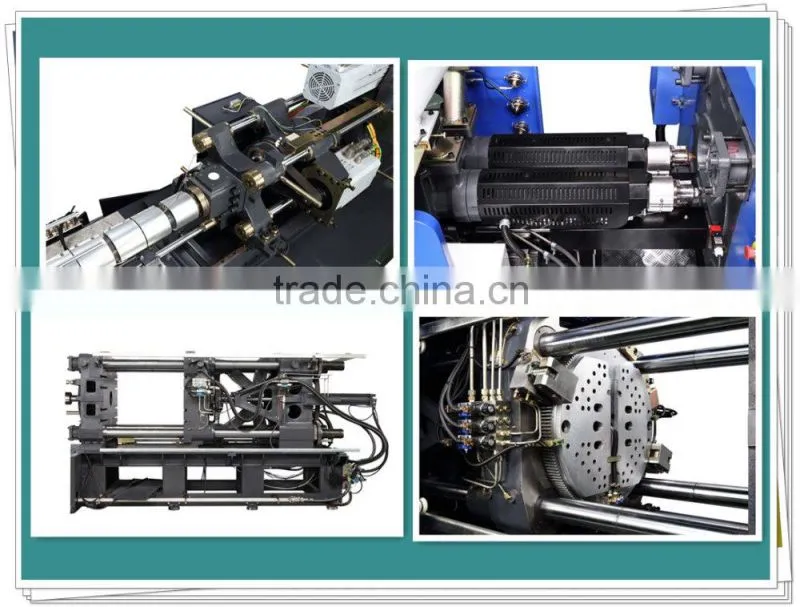

MACHINE IN DETAILS:

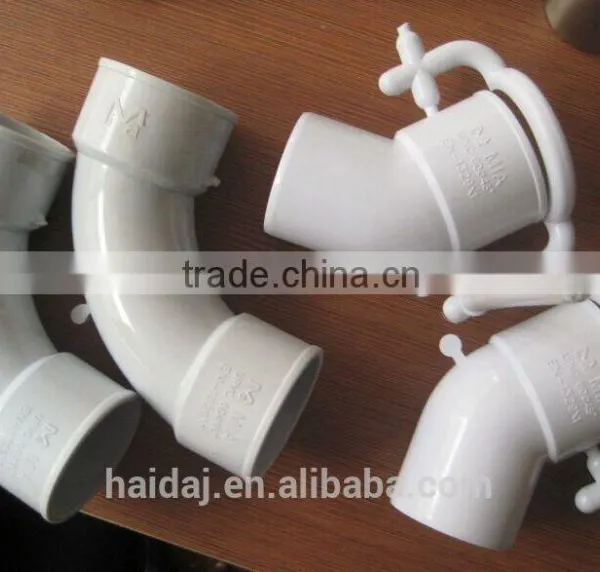

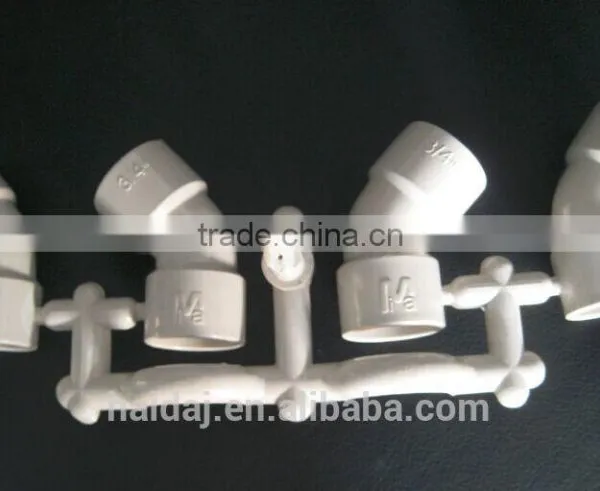

PIPE FITTING MOLD:
There are more than 10 Agents of our Haida located in the world.

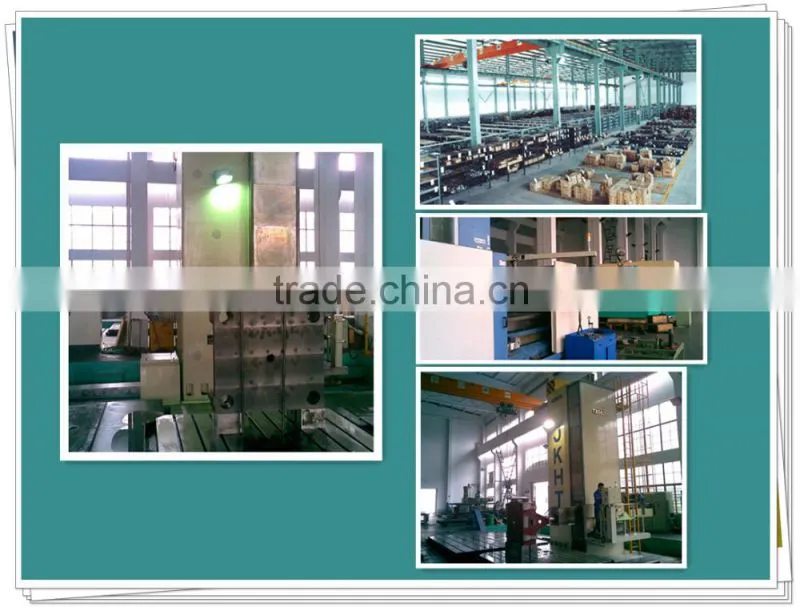

Engineers available to service machinery overseas
NINGBO HAIDA Plastic Machinery Co., Ltd. is a large professional production base specialized in manufacturing HDX HDJS HDJL series automatic plastic injection machines and enjoy high reputation in the plastic machinery industry association, vice President of units. In recent years, our company undertake entity of project under the new high-tech enterprise, state inspectionfree product, China famous brand, Zhejiang province famous brand and Zhejiang province well-known product. In 2000, we had the right of selfimport and export and had registed our brand in more than ten countries and areas. Our company was accredited by BCC (ISO9001) and CE certificate in 2001 and ISO14001 and OHSAS18001 in 2007

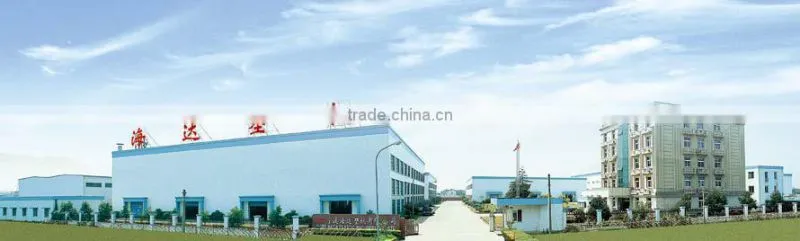

Established in 1992, Ningbo Haida Plastic Machinery Co., Ltd. become one of the most famous companies in the plastic machinery industry. It covers an area of more than 100 thousand square meters and has a total asset of RMB 350 million. There are 420 workers and staff members including 30% professionals with middle or senior class techinical certificate. Famous senior engineers and experts are invited regularly as our advisers. Our HDJL and HDJS series variable pump and servo motor machines are well-known by our clients.
