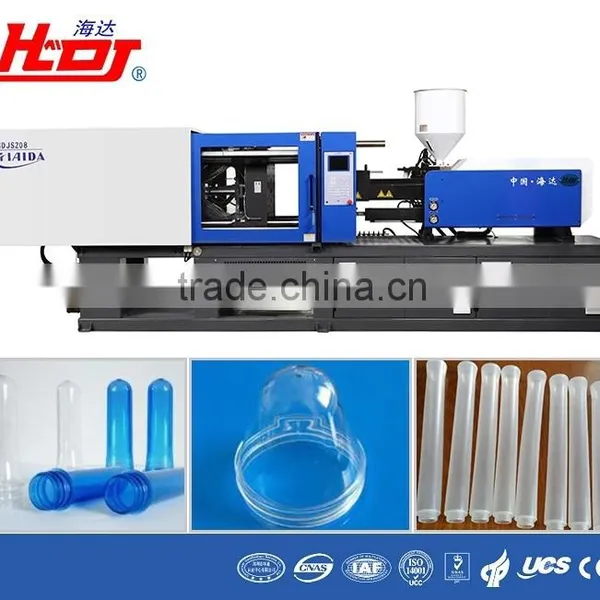

Help CenterPET BOTTLE PREFORM INJECTION MOLDING MACHINE HDX208PET FOR SMALL VOLUME
Related Products
-
PET BOTTLE PREFORM INJECTION MOLDING MACHINE HDJS588PET FOR SMALL VOLUMENegotiableMOQ: 1 Set -
PET BOTTLE PREFORM INJECTION MOLDING MACHINE HDX208PET FOR SMALL VOLUMENegotiableMOQ: 1 Set
-
HDJS208 Economical Small Pvc Fittings Making MachineUS$ 10,000 - 50,000MOQ: 1 Set
-
Pipe Fitting Making Machine Pet Preform Machine Price HDJS168NegotiableMOQ: 1 Set
-
Energy Saving Pipe Fitting Injection Machine HDJS168NegotiableMOQ: 1 Set
PET Bottle Preform Injection Machine and Accessories
Dehumidifying dryer and auto loader system for material.
Environment dehumidifying dryer system.
Chiller system.
Mold and hot runner temperature controller system.
Automatic system.
PET Bottle Preform Injection Machine Features
Special injection construction designed to benefit for plasticizing.
By means of linear potentiometer(L/P) for injection and clamping unit. Deviation is under 0.01mm.
By use of PID temperature controller, which has limitations for screw cold starts,broken wire detection, temperature preservation, etc. Temperatures can be controlled by ±1°C.
Microprocessor controller with 4 stages injection, 3 stages holding pressure and 3 stages back pressure.
Shut-down memory is able to store up to 100 preset mold data memory.
Higher stability and lower defect in PET preform dimension.
HDX208 Pet Bottle Preform Injection MachineParameter,
ITEM |
UNIT |
DATA |
||
Injection |
Screw Diameter |
mm |
50 |
55 |
Screw L/D Ratio |
L/D |
24 |
24 |
|
Injection Volume |
cm3 |
461 |
558 |
|
Shot Weight(PVC) |
g |
553 |
669 |
|
Injection Pressure |
Mpa |
170 |
141 |
|
Clamping |
Clamping Force |
KN |
2080 |
|
Opening Stroke |
mm |
475 |
||
Mould Thickness(Min-Max) |
mm |
200-520 |
||
Space Between Tie-Bars |
mm |
515×515 |
||
Ejector Force |
KN |
62 |
||
Ejector Stroke |
mm |
165 |
||
General |
Motor Power |
KW |
22 |
|
Heater |
KW |
18.5 |
||
Pump Pressure |
Mpa |
16 |
||
Machine Dimension |
m |
5.9×1.4×2.3 |
||
Machine Weight |
T |
6.75 |
||
Mould Orientation Ring Diameter |
mm |
Φ160 |
||
Nozzle Radius |
mm |
SR15 |
||
Send Inquiry to This Supplier
