Small Injection Molding Machine HDX78 for Small Clips

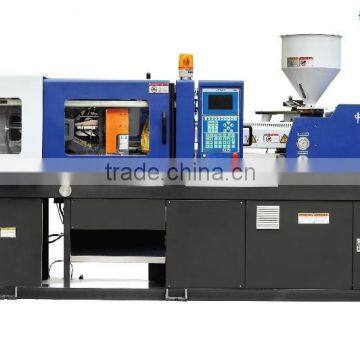

Small Injection Molding Machine HDX78 for Small Clips photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Preform Injection
Style:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Preform Injection
Style Horizontal
Brand Name HAIDA
Model Number HDX78
Place of Origin Zhejiang, China
Plastic Type Thermoplastic
Automatic Yes
Injection Weight 114G
Clamping Force 780KN
Opening Stroke 300MM
Power(W) 9KW
Certification CE/ISO9001/BV
After-sales Service Provided Engineers available to service machinery overseas

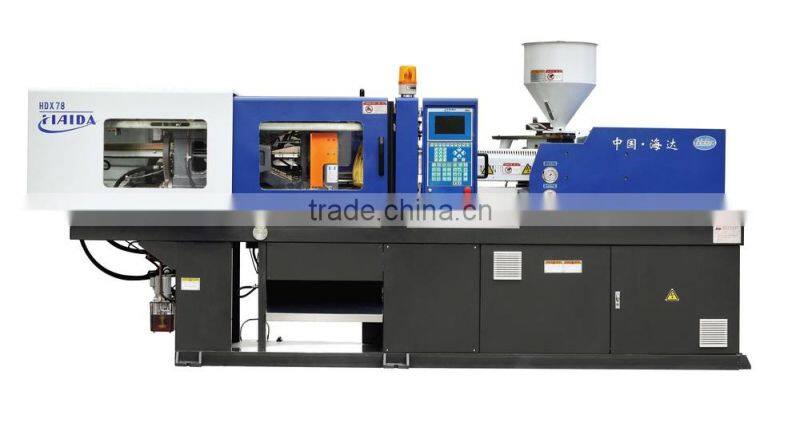

  Small injection molding machine HDX78 Small injection molding machine HDX78 for small clips

Product Description



ITEM

UNIT

DATA

Injection
Unit

Screw Diameter

mm

34

36

40

Screw L/D Ratio

L/D

21.1

19.9

17.9

Injection Volume

cm3

110

125

154

Shot Weight

g

100

114

140

Injection Pressure

Mpa

180

160

130

Clamping
Unit

Clamping Force

KN

780

Opening Stroke

mm

300

Mould Thickness(Min-Max)

mm

150-300

Space Between Tie-Bars

mm

330×330

Ejector Force

KN

25

Ejector Stroke

mm

80

General

Motor Power

KW

9

Heater

KW

6.5

Pump Pressure

Mpa

16

Machine Dimension

m

3.9×1.1×1.9

Machine Weight

T

2.5

Mould Orientation Ring Diameter

mm

Φ100

Nozzle Radius

mm

SR10







HDX General Series

01 Broad Scope Of Application



 02  The Stability Of The Mature And Reliable

Durable

Running Stability



03  High Performance To Price Ratio

Concise And Effective

Rapid Flexible

Manipulation Of The Simplified

Simple Maintenance



 Small injection molding machine HDX78 for small clips

Machine in Details


Small injection molding machine HDX78 for small clips





Small injection molding machine HDX78 for small clips

Meticulous division of labour, consecutive processes, professional experience of manufacture and high standard equipment ensure the high quality of the machine. We put stress on every working procedure to meet the requirements of customers for high quality. Recently, we have introduced high precision machining tools,with the equipment of cutting machine tools, heat-treating facilities, check out test sets and painting facilities, the processing ability of Haida Company, especially for the large and supersized machine reach a high level in plastic machine industry while the quality of the machine is ensured at the same time.

 Small injection molding machine HDX78 for small clips



Good products must be based on good equipment and technique. Haida company take advantage of new equipment and technique in the world to develop the design of machines. We don't hesitate to input more about these. Equipped-well design center, Vanward institute in plastic machine industry, R&D Center, CAD design Center and test Center ensure the vanward design of Haida company.
Small injection molding machine HDX78 for small clips
 Small injection molding machine HDX78 for small clips





Our Services

There are more than 10 Agents of our Haida  located in the world.

Engineers available to service machinery overseas

Small injection molding machine HDX78 for small clips







Company Information

 Small injection molding machine HDX78 for small clips



NINGBO HAIDA Plastic Machinery Co., Ltd. is a large professional production base specialized in manufacturing HDX HDJS HDJL series automatic plastic injection machines and enjoy high reputation in the plastic machinery industry association, vice President of units. In recent years, our company undertake entity of project under the new high-tech enterprise, state inspectionfree product, China famous brand, Zhejiang province famous brand and Zhejiang province well-known product. In 2000, we had the right of selfimport and export and had registed our brand in more than ten countries and areas. Our company was accredited by BCC (ISO9001) and CE certificate in 2001 and ISO14001 and OHSAS18001 in 2007



Established in 1992, Ningbo Haida Plastic Machinery Co., Ltd. become one of the most famous companies in the plastic machinery industry. It covers an area of more than 100 thousand square meters and has a total asset of RMB 350 million. There are 420 workers and staff members including 30% professionals with middle or senior class techinical certificate. Famous senior engineers and experts are invited regularly as our advisers. Our HDJL and HDJS series variable pump and servo motor machines are well-known by our clients.
