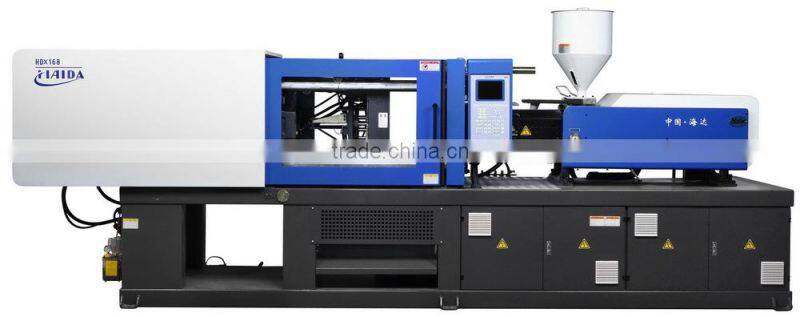

injection molding machine price HDX168
- 100 Set / Sets per Month
- NINGBO
- T/T
You May Like
Product Details
Condition | New | Type | Preform Injection | |
Style | Horizontal | Brand Name | HAIDA | |
Model Number | HDX168 | Place of Origin | Zhejiang, China | |
Plastic Type | Thermoplastic | Automatic | Yes | |
Injection Weight | 289G | Clamping Force | 1680KN | |
Opening Stroke | 420MM | Power(W) | 15KW | |
Certification | CE/ISO9001/BV | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
injection molding machine price HDX168
ITEM | UNIT | DATA | |||
Injection | Screw Diameter | mm | 40 | 45 | 48 |
Screw L/D Ratio | L/D | 22.5 | 20.3 | 19 | |
Injection Volume | cm3 | 251 | 318 | 362 | |
Shot Weight | g | 229 | 289 | 329 | |
Injection Pressure | Mpa | 202 | 159 | 140 | |
Clamping | Clamping Force | KN | 1680 | ||
Opening Stroke | mm | 420 | |||
Mould Thickness(Min-Max) | mm | 180-500 | |||
Space Between Tie-Bars | mm | 455×455 | |||
Ejector Force | KN | 45 | |||
Ejector Stroke | mm | 140 | |||
General | Motor Power | KW | 15 | ||
Heater | KW | 10 | |||
Pump Pressure | Mpa | 16 | |||
Machine Dimension | m | 5.2×1.3×2.1 | |||
Machine Weight | T | 4.8 | |||
Mould Orientation Ring Diameter | mm | Φ125 | |||
Nozzle Radius | mm | SR15 |
HDX General Series
01 Broad Scope Of Application
02 The Stability Of The Mature And Reliable
l Durable
l Running Stability
03 High Performance To Price Ratio
l Concise And Effective
l Rapid Flexible
l Manipulation Of The Simplified
l Simple Maintenance
There are more than 10 Agents of our Haida located in the world.
Engineers available to service machinery overseas
NINGBO HAIDA Plastic Machinery Co., Ltd. is a large professional production base specialized in manufacturing HDX HDJS HDJL series automatic plastic injection machines and enjoy high reputation in the plastic machinery industry association, vice President of units. In recent years, our company undertake entity of project under the new high-tech enterprise, state inspectionfree product, China famous brand, Zhejiang province famous brand and Zhejiang province well-known product. In 2000, we had the right of selfimport and export and had registed our brand in more than ten countries and areas. Our company was accredited by BCC (ISO9001) and CE certificate in 2001 and ISO14001 and OHSAS18001 in 2007
Established in 1992, Ningbo Haida Plastic Machinery Co., Ltd. become one of the most famous companies in the plastic machinery industry. It covers an area of more than 100 thousand square meters and has a total asset of RMB 350 million. There are 420 workers and staff members including 30% professionals with middle or senior class techinical certificate. Famous senior engineers and experts are invited regularly as our advisers. Our HDJL and HDJS series variable pump and servo motor machines are well-known by our clients.
