HDJS2000-3300T Plastic Injection Moulding Machine for Pallet Making

HDJS2000-3300T Plastic Injection Moulding Machine for Pallet Making thumbnail-1
HDJS2000-3300T Plastic Injection Moulding Machine for Pallet Making thumbnail-2
HDJS2000-3300T Plastic Injection Moulding Machine for Pallet Making photo-1
HDJS2000-3300T Plastic Injection Moulding Machine for Pallet Making photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Preform Injection
Style:
Horizontal
Contact Supplier Request Quote Chat Now
Ningbo Haida Plastic Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Preform Injection
Style Horizontal
Brand Name HAIDA
Model Number HDJS2000-3300
Place of Origin Zhejiang, China
Plastic Type Thermoplastic
Automatic Yes
Injection Weight 10085-50224G
Injection Rate 145g/s-208g/s
Clamping Force 20000-33000KN
Opening Stroke 1680-2150MM
Power(W) 55X3-55X5 KW
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

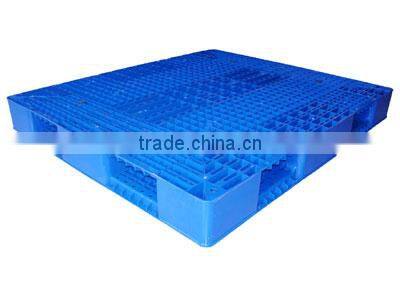

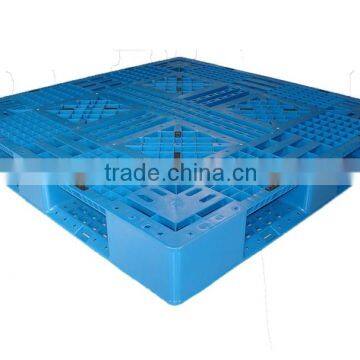

 plastic pallet injection molding machine

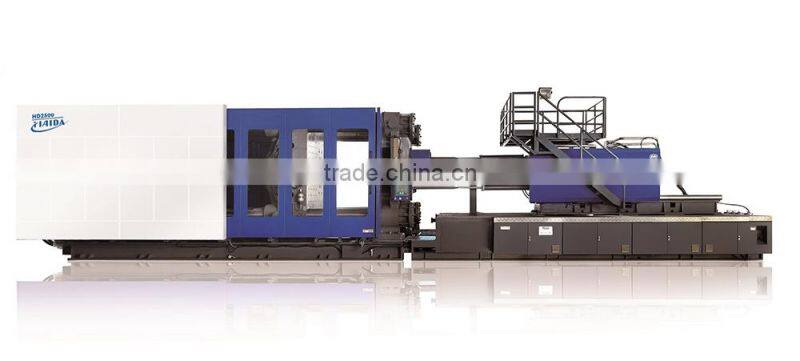

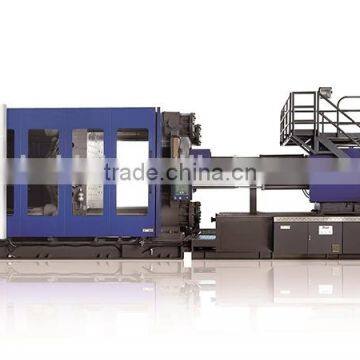

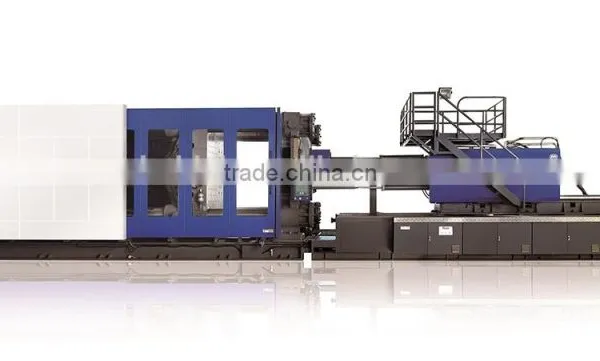

HDJS2000-3300T plastic injection moulding machine for pallet making

HDJS2000-3300T plastic injection moulding machine for pallet making







SPECIFICATIONS


HDJS2000

ITEM UNIT DATA
Injection Unit Screw Diameter mm 140 150 160 180
Screw L/D Ratio L/D 22.4 20.9 19.6 20
Injection Volume cm3 11083 12723 14476 24798
Shot Weight g 10085 11578 13174 22566
Injection Pressure Mpa 154 135 120 118
Clamping Unit Clamping Force KN 20000
Opening Stroke mm 1680
Mould Thickness(Min-Max) mm 700-1600
Space Between Tie-Bars mm 1650×1550
Ejector Force KN 406.9
Ejector Stroke mm 450
General Motor Power KW 55+55+55
Heater KW 95
Pump Pressure Mpa 16
Machine Dimension m 16.4×3.6×4.3
Machine Weight T 148
Mould Orientation Ring Diameter mm Φ315
Nozzle Radius mm SR20





HDJS2500

ITEM UNIT DATA
Injection Unit Screw Diameter mm 160 175 185 200
Screw L/D Ratio L/D 19.6 20 20 20
Injection Volume cm3 17693 25578 28493 33301
Shot Weight g 16101 23276 25929 30304
Injection Pressure Mpa 138 163 146 139
Clamping Unit Clamping Force KN 25000
Opening Stroke mm 1850
Mould Thickness(Min-Max) mm 700-1800
Space Between Tie-Bars mm 1820×1720
Ejector Force KN 565
Ejector Stroke mm 480
General Motor Power KW 55×4
Heater KW 140
Pump Pressure Mpa 16
Machine Dimension m 18.5×4×4.5
Machine Weight T 185
Mould Orientation Ring Diameter mm Φ315
Nozzle Radius mm SR30



HDJS2800

ITEM UNIT DATA
Injection Unit Screw Diameter mm 175 185 200 220
Screw L/D Ratio L/D 20 20 20 20
Injection Volume cm3 25578 28493 33301 44095
Shot Weight g 23276 25929 30304 40127
Injection Pressure Mpa 163 146 139 137
Clamping Unit Clamping Force KN 28000
Opening Stroke mm 2000
Mould Thickness(Min-Max) mm 800-1850
Space Between Tie-Bars mm 1950×1850
Ejector Force KN 565
Ejector Stroke mm 480
General Motor Power KW 55×4/55×5
Heater KW 149.2/180
Pump Pressure Mpa 16
Machine Dimension m 20.5×4×4
Machine Weight T 205/210
Mould Orientation Ring Diameter mm Φ315
Nozzle Radius mm SR30





HDJS3300

ITEM UNIT DATA
Injection Unit Screw Diameter mm 180 200 220 240
Screw L/D Ratio L/D 20 20 20 20
Injection Volume cm3 22393 33300 44095 55191
Shot Weight g 20377 30303 40126 50224
Injection Pressure Mpa 139 139 137 146
Clamping Unit Clamping Force KN 33000
Opening Stroke mm 2150
Mould Thickness(Min-Max) mm 800-1900
Space Between Tie-Bars mm 2160×1950
Ejector Force KN 814
Ejector Stroke mm 500
General Motor Power KW 55×4
Heater KW 150
Pump Pressure Mpa 16
Machine Dimension m 21.0×4.2×5.3
Machine Weight T 230
Mould Orientation Ring Diameter mm Φ315
Nozzle Radius mm SR30



STANDARD DEVICE



1. Double-cylinder balance injection system 2. Multi-stage pressure & speed injection 3. Back-pressure adjustment device 4. Decompression 5. High speed clamping 6. Low pressure mold protection 7. Multiple hydraulic ejector knock-out 8. Lubrication system 9. Hydraulic pressure full proportional control 10. All computer control system 11. Molding data memory sytem





STANDARD ACCESSORIES



1. Mechanical leveling pad 2. Spare parts 3. Lubrication oil





SELECTABLE



1. Drying hopper 2. Auto-loader 3. Hopper magnet 4. Mold clamps 5. Hydraulic unscrew device 6. Water cooler 7. Mold temperature controller 8. Auto color mixer with measuring device 9. Oil temperature controller 10. Oil bypass filter





ILLUMINATIONS



Theoretics shot capacity=(plastic injector feeder section area)×(screw stroke) Shot weight is 91% PS theoretics shot capacity Plasticizing ability and shot speed are PS value
