Yugong big capacity wood chips making machine
Product Description of wood chips making machine:

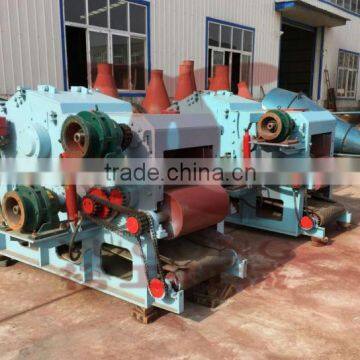

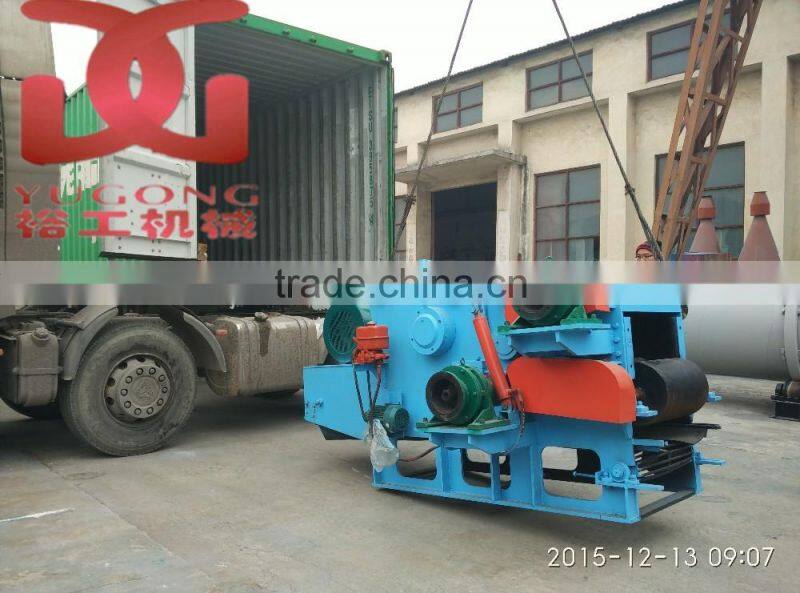

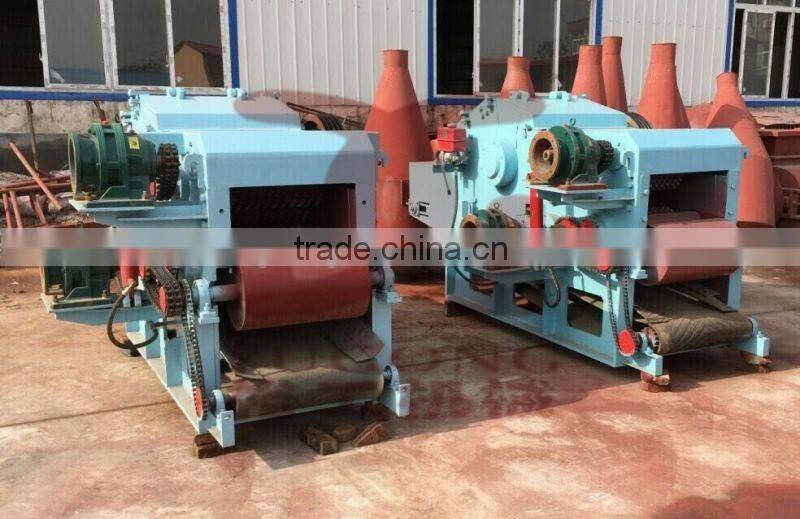

Yugong Wood Chips Making Machine is mainly used for cutting branches, small trees, paper plates, planks with diameter or thickness below 120mm. The cut wood chips is used as pellets making raw material. The cutting part is a rotating drum with a number of cutting knives which can process wood into wood chips.
Technical Parameters of wood chips making machine:
|
Model
Item |
BX215 |
BX216-3 |
BX218-6 |
|
Feeding Conveyor (length, m) |
6 |
6 |
8 |
|
Discharging Conveyor (length, m) |
13.6 |
13.6 |
13.6 |
|
Inlet Dimension (mm) |
160*400 |
230*500 |
300*680 |
|
Blades Qty (pcs) |
2 |
3 |
6 |
|
Knife Roll Diameter (mm) |
500 |
600 |
800 |
|
Knife Roll Speed (rpm) |
592 |
590 |
650 |
|
Max. Chipping Diameter (mm) |
160 |
230 |
300 |
|
Size of Finish Chips (length*width*thickness, mm) |
20/25*20/25*5 |
20/25*20/25*5 |
20/25*20/25*5 |
|
Capacity (based on upper final size, t/h) |
2 |
3 |
8 |
|
Main Motor Power (kw) |
45 |
55 |
110 max |
|
Feeding Motor Power (kw) |
2.2 - 3 |
3 - 4 |
4 - 5 |
|
Discharging Motor Power (kw) |
3 |
3 |
3 |
|
Oil Pump Motor Power (kw) |
1.5*1 |
1.5*1 |
1.5*1 |
|
Machine Weight (kg) |
2990 |
4070 |
7000 |
|
External Dimension (mm) |
1470*1550*970 |
1800*1900*1210 |
2200*2150*1500 |
We Yugong Machinery Manufacturing Factory main provide detailed pellet making line solution.

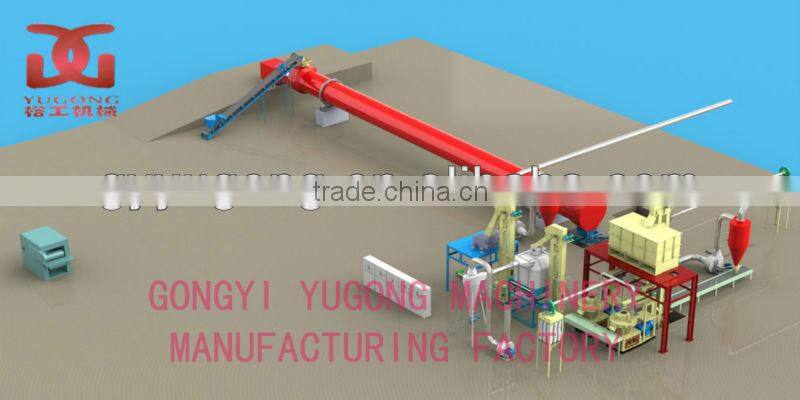

From raw material to packing system(wood chips making machine,dryer,hammer mill,pellet machine,cooler,packing machine).
The wood chips making machine is main part of wood pellet making line,if any need,just feel free to contact us.
