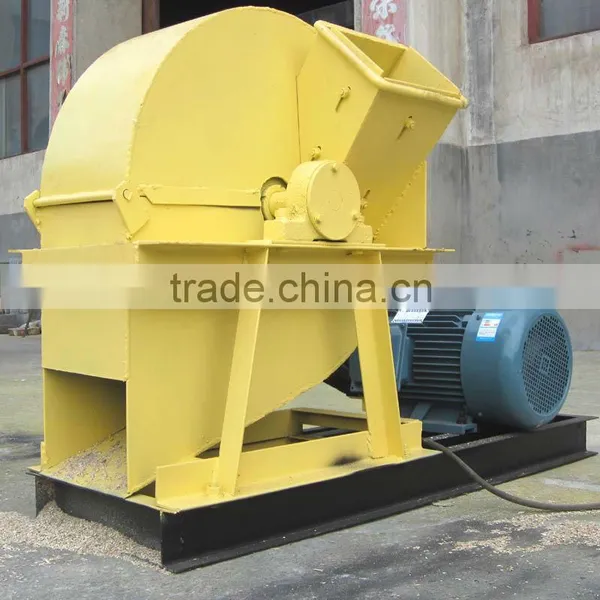

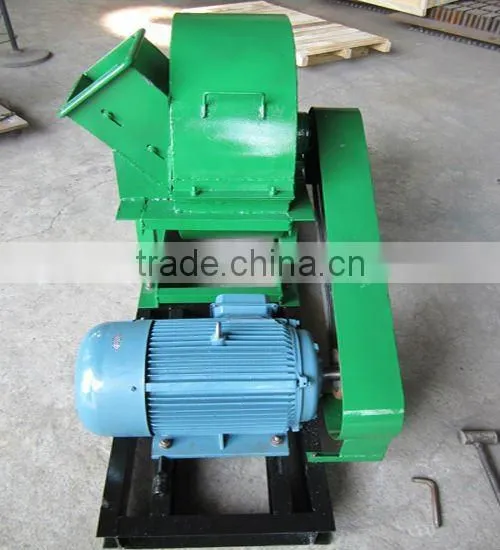

CE approved Yugong electric wood chipper
Screw plate-shaped electric wood chipper can cut log and small-diameter log with less than 200mm diameter and is applicable to paper pulp factory, forest tree factory, paper mill, thermal power plant and etc. This Chipping machine is mainly composed of four parts such as principal machine, coupling, bottom frame and motor,etc,in which the principal machine of chipping machine is mainly composed of cutter head, upper and low cobers, feed inlet and outlet,etc.
Main technical parameters of electric wood chipper
Model of machine |
600 |
800 |
Diameter of cutter head(mm) |
600 |
800 |
Rotary speed of cutter head(r/min) |
970 |
740 |
Length of wood chip(mm),thickness(mm) |
15-23 2-3 |
15-35 3-7 |
Mode of feeding |
declination |
declination |
Dimension of feeding opening (mm) |
150*140 |
250*250 |
Productive capacity(t/h) |
1-3 |
3-5 |
Power of electric motor(kw) |
15 |
30 |
Maximum diameter of cutting wood(mm) |
200 |
250 |
Mode of discharging |
ramp |
ramp |
Weight of complete machine(kg) |
1192 |
1680 |
External dimension(L*W*H) |
2002*1175*1360 |
2820*1838*1492 |
If you have any questions about our electric wood chipper,just feel free to send us inquiry.
You are always welcome to visit our factory.
