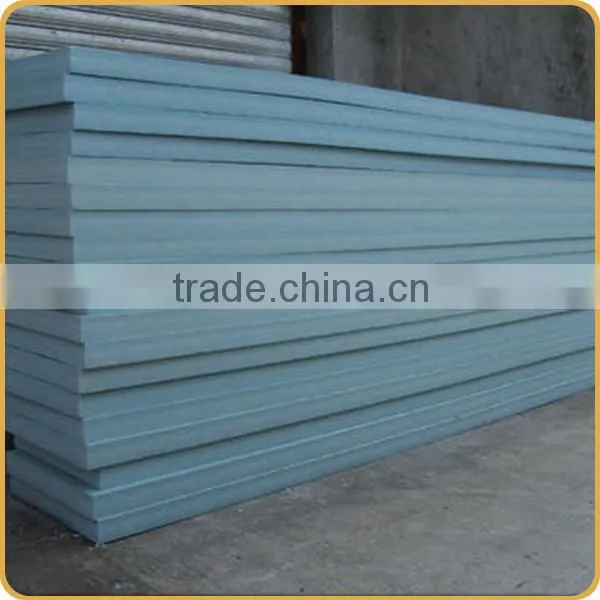

Olingen tile backer boards are of high performance, made up of waterproof extruded polystyrene being faced with fiberglass mesh embedded into a polymer mortar on each side, which add extra strength and rigidity of the board.
Composition
Standard dimensions and weight
| Thickness(mm) | width(mm) | length(mm) | Weight (kg/m²) | packaging |
| 6 | 600 | 1250 | 2.7 | 20pcs/carton |
| 10 | 600/900 | 1250/2500 | 2.9 | 20pcs/carton |
| 12 | 600/900 | 1250/2500 | 3.0 | 20pcs/carton |
| 20 | 600/900 | 1250/2500 | 3.2 | 10pcs/carton |
| 30 | 600 | 1250/2500 | 3.4 | 10pcs/carton |
| 50 | 600 | 1250/2500 | 4.3 | 6pcs/carton |
*Above is our normal size provided. We provide the cut-to-size and customized size as well.
* Dimensional tolerances for standard boards: Thickness +/- 1.5mm, Width+/- 2mm, Length +/- 2mm
Technical performance:
Property |
Rating |
Density |
36kg/m3 |
Thermal conductivity |
<=0.035w/(m*k) |
Compressive strength(10%deflection) |
Minimum of 0.25N/m m2
|
Flexural strength |
2.05N |
Water absorption(2-day immersion) |
<=1% |
Water absorption(capillary) |
0 |
Coefficient of linear expansion |
30*10-6 |
Water vapour permeability |
0.028ng/pa.m.s |
EU controlled substance content |
None |
Olingen Group is a professional supplier in the field of architecture materials for 20 years, owned 5 factories, 7 subsidiaries and 8 individual brands. Main products include: cultured stone,cultured brick,Sands stone,imitation wooden products,EPS components,brick panel,wall insulation,tile backer board,xps shower tray and other building materials.
