Home > Construction & Decoration > Heat Insulation Material > XPS Foam Board > L/U Shaped Angle Xps Board

L/U Shaped Angle Xps Board

Name: L/U Shaped Angle Xps Board
Brand: Olingen
SKU: 129851789

Negotiable MOQ: 500 Meters (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Olingen

Model Number:

OBB02

Contact Supplier Request Quote Chat Now

Zhejiang Olingen Building Material System Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI/NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Olingen

Model Number OBB02

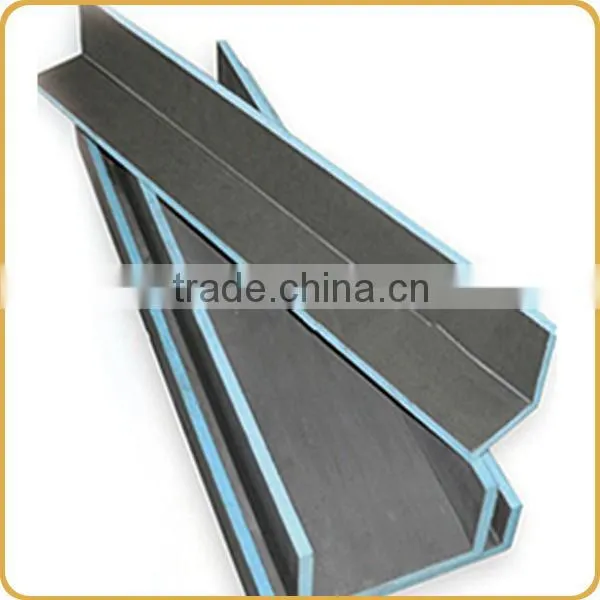

L/U shaped angle board

Product Overviews

Olingen XPS angled boards are ideal waterproof and insulating materials to enclose water pipes, bathtubs and shower trays by only using tile adhesive and fixings. Tiling can be finished directly on them. Compared with traditional ways, Olingen XPS angled boards can save your time and money a lot with quick and easy installation.

Product structure:

Made of high-performance waterproof extruded polystyrene, it has a 0.75mm coating on either side comprising a glassfiber mesh embedded in a polymer cement mortar.

Specifications

1.L/U shape XPS backer board
2.For bathtub, water pipe
3.Waterproof, insulating, ready to tile
4.20mm thick
5.Easily install

Standard dimensions and packing :

Product name	Size(mm)w*L	L-style width(mm)	Sheets/carton
L-shaped	20*1220/2440/1250/2500	300*300	10
L-shaped	20*1220/2440/1250/2500	200*400	10
L-shaped	20*1220/2440/1250/2500	150*150	10
U-shaped	20*1220/2440/1250/2500	200200200	10
U-shaped	20*1220/2440/1250/2500	100400100	10
U-shaped	20*1220/2440/1250/2500	150300150	10

The board has the following tolerances:thickness:± 2mm width:± 2mm length:± 3mm

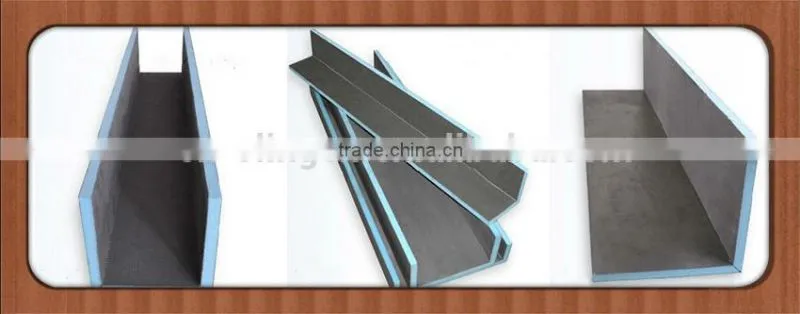

Product Display

Product Advantage

Project Cases

Company Information

Olingen Group is a professional supplier in architectural material for 20 years, owned 5 factories, 7 subsidiaries and 8 individual brands. Main products include: cultured stone,cultured brick,Sands stone,imitation wooden products,EPS components,brick panel,wall insulation,tile backer board,xps shower tray and other building materials.

FAQ

Why do I need Olingen BOARD?

Because Olingen BOARD will save you money by acting as a very efficient insulation barrier. It reflects the heat upwards into the floor tile instead of allowing the heat to warm up the concrete slab below. Besedes, it not only has the function of heat insulation and strong waterproofness, but also provides a base for the ceramic tile.

How does Olingen BOARD compare to plasterboard?

It doesn’t there really is no comparison. Standard plasterboard offers approximately 1/6th the U value of an equal thickness of Olingen BOARD. and yet is approximately 7 times heavier. When used in wet areas, such as bathrooms or showers,Olingen BOARD is totally waterproof whereas plasterboard will absorb water unless it is of the waterproof variety which will cost considerably more.

Compare a few characteristics of Olingen BOARD against plasterboard

1. 1/7th the weight of Plasterboard

2.waterproof, ordinary plasterboard is not.

3.(10mm) has a U value of 2.7 against 12.8 W/M2 K of 12.5mm

How do I fix Olingen BOARD to walls?

The board can be either fixed to timber battens with screws and screw cups or fixed directly to brick or block walls by drilling, plugging and screwing the boards to the wall. If the wall is to be plaster finished, the joints should be reinforced with a plaster scrim

What are its benefits?

Being extremely strong, Olingen BOARD can be used as a structural element in the floor. It will not only take a load of 30 tonnes per square metre, so it's ideal for putting under your floor, but it keeps your floor warmer, longer, by not allowing heat to penetrate down into the concrete substrate below. In addition ,Olingen tile backer board good water resistance so that they are widely used in wetroom and bathroom.

What thickness Olingen BOARD do I need?

The thicker the Olingen BOARD the better the heat insulation, but obviously if you have an existing floor that you want to insulate, you may well be governed by the thickness you can add to the floor because of the height from the finished floor to the underside of your door. Even by using 6mm Olingen BOARD you will notice the benefit of insulating with Olingen BOARD .Generally speaking,,6mm and 12mm are used for floor while thicker than 20mm are usually for wall partition.
