tile backer board waterproof materials
Specifications
1. Waterproof and insulating XPS
2. Easy to cut and assemble
3. Wet room, shower room
4. Ready to tile
5. ISO certificated

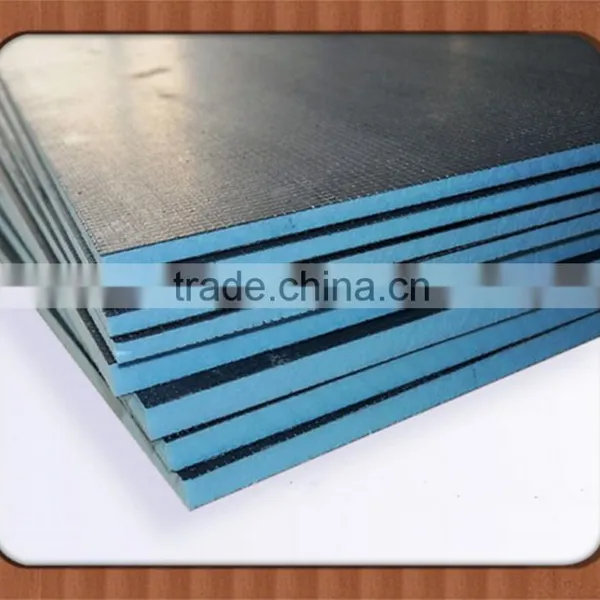

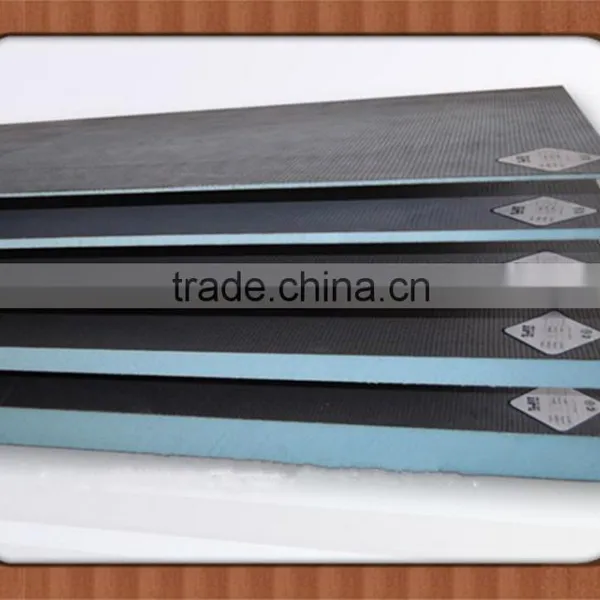

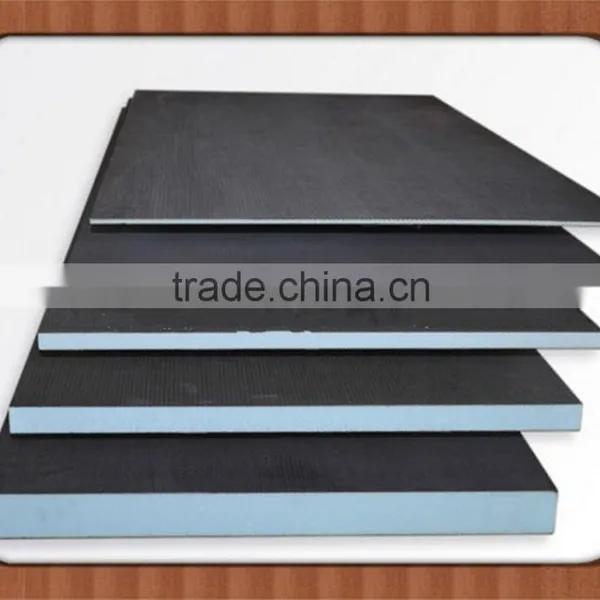

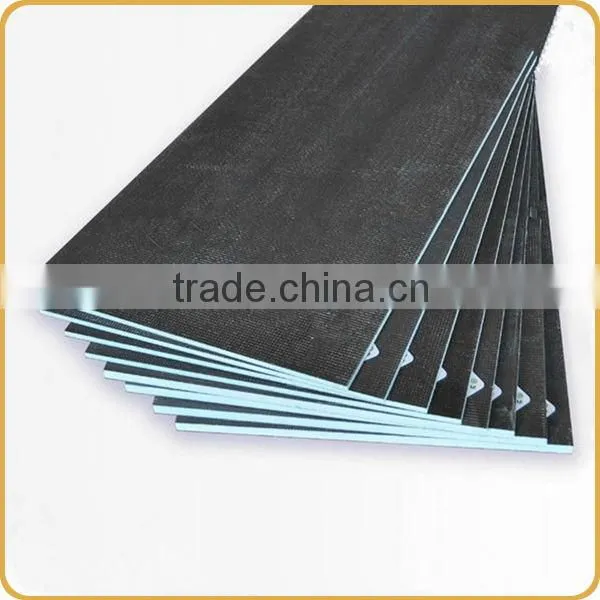

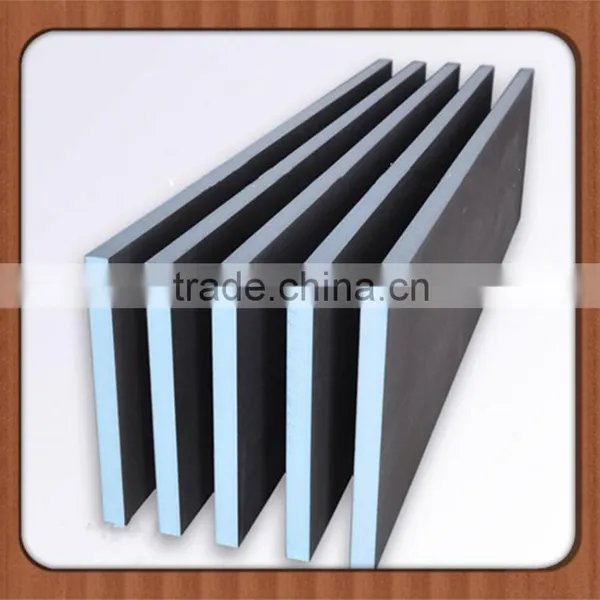

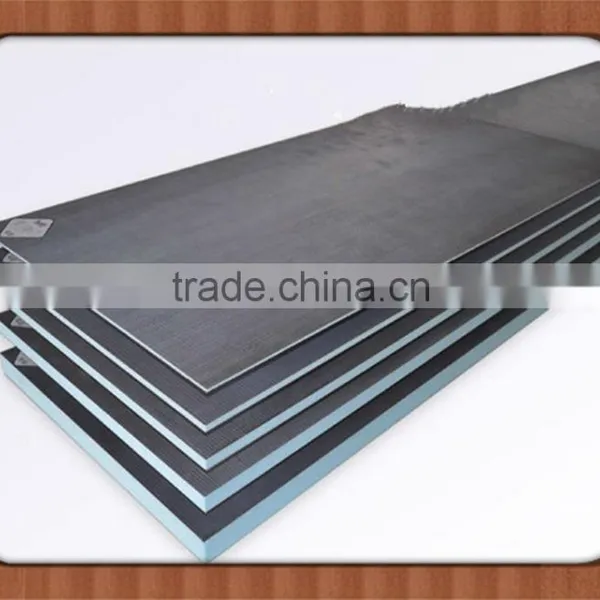

Olingen tile backer boards are manufactured using a high-density and waterproof extruded polystyrene core(XPS) with a polymer modified, glass fibre reinforced cement coating on both sides, which adds rigidity and strength to the board and shower trays.

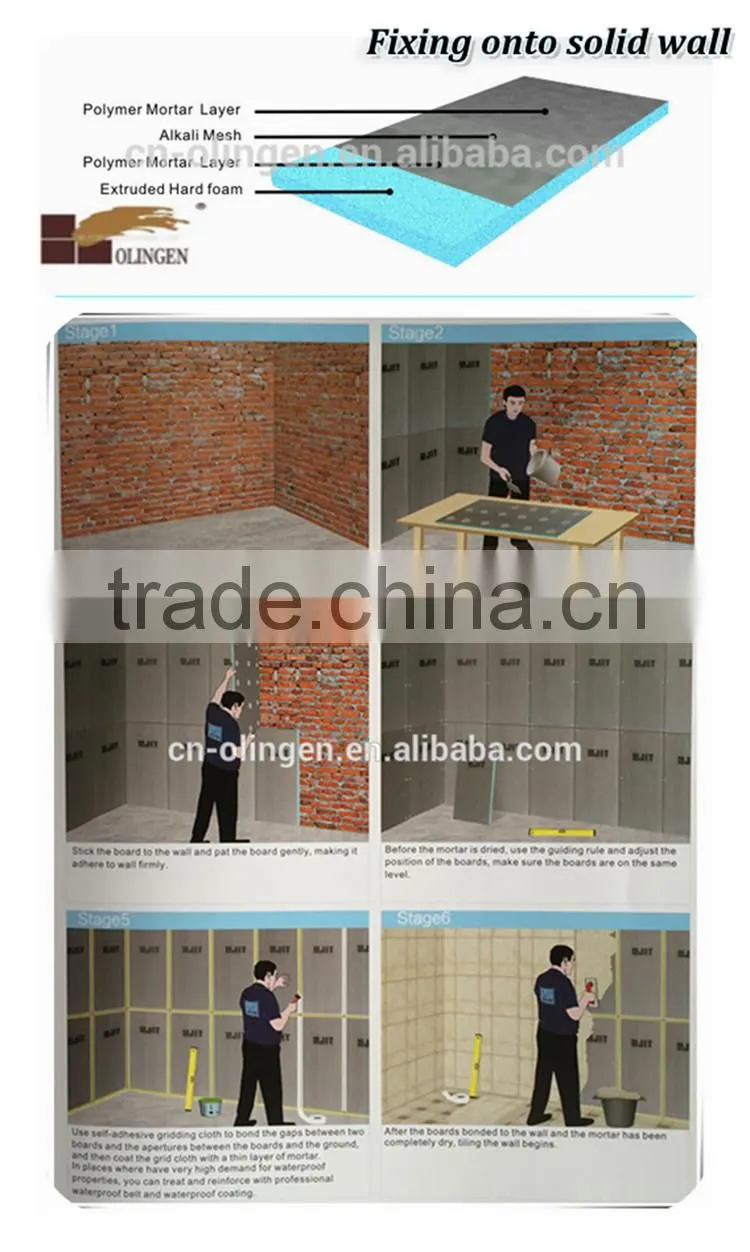

Made of high-performance waterproof extruded polystyrene, it has a 0.75mm coating on either side comprising a glassfiber mesh embedded in a polymer cement mortar.
Standard dimensions and weight :
Thickness(mm) |
Weight(kg/m²) |
Length by width(mm*mm) |
6 |
2,7 |
1220 x 600 |
10 |
2,9 |
1220 x 600 |
12 |
3,0 |
2440 x 600 |
20 |
3.1 |
2440 x 600 |
30 |
3,3 |
2440 x 600 |
50 |
4,2 |
2440 x 600 |
The board has the following tolerances:thickness:± 2mm width:± 2mm length:± 3mm
Main applications:
1.Wall and floor insulation for interior and exterior.
2.Underfloor heating
3.Waterproof and insulating projects for wet areas such as bathroom, kitchen, swimming pool,spa.
4.Enclosures for bathtubs, columns, steps and water pipes.
Olingen Group is a professional supplier in architectural material for 20 years, owned 5 factories, 7 subsidiaries and 8 individual brands. Main products include: cultured stone,cultured brick,Sands stone,imitation wooden products,EPS components,brick panel,wall insulation,tile backer board,xps shower tray and other building materials.
