Specifications
hydraform brick making machine1.easy operation
st-effective price
3.make many kinds of brick/block
4.ISO
Hydraform Brick Making Machine

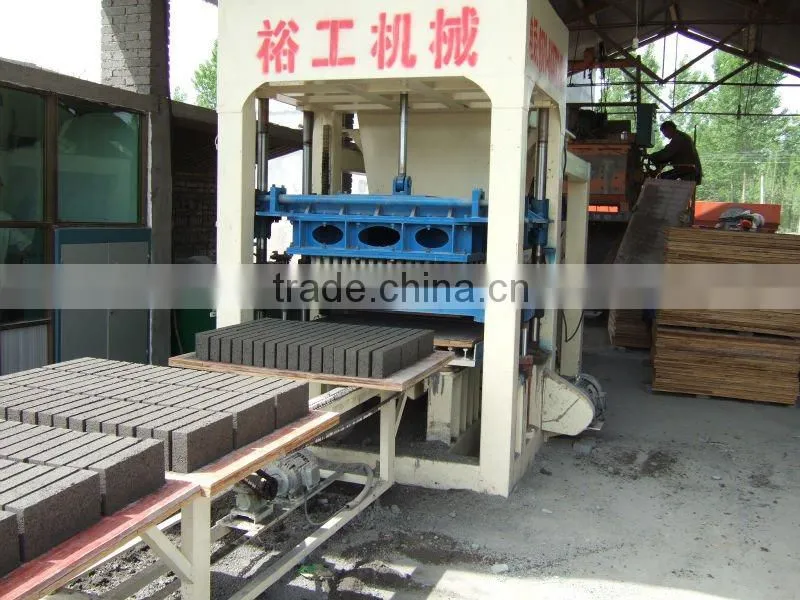

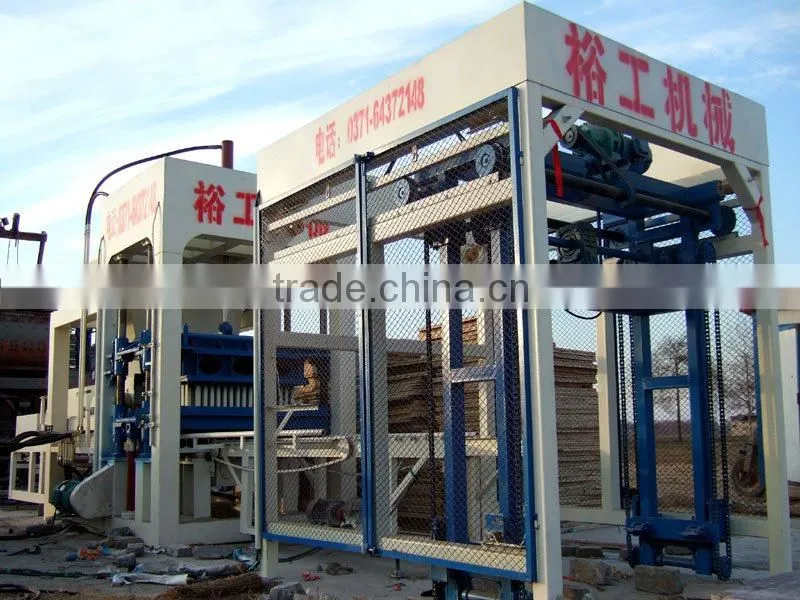

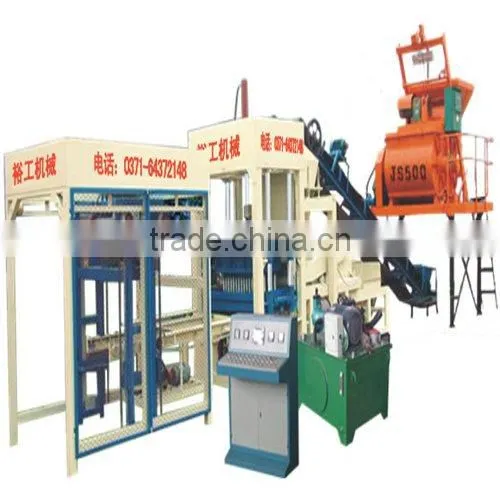

Professional supply full automatic cement concrete hydraform brick making machine
- Rational design, compact structure, machine body using a high tension steel and special welding technology, widely use import parts, so that the body more stable and reliable.
- Highly efficient, super shock system design, use computer-controlled converter to achieve kinds of vibration frequency and amplitude, thereby increasing the density of products and production effiency greatly.
- All machines adopt the PLC system and controlled by computer that can realize random signal analysis and ensure machines work in the best conditions.
- Equipped with Hydraulic code allocated trigger, can easily make large productivity, automatic production, saving a lot of manpower, maintaining storage yard and liquidity.
- Spiral fabrics semi-mandatory system, so that a more fast uniform material loading.
- Material storage and discharge device adopts enclosed electric roller belt transmission, so that it can control the storage of the small hopper to prevent the concrete liquefied by the effect of vibration ageing technology, and then ensure the product’s degree of hardness.
Specification of cement hydraform brick making machine
Model QT6-15/QT8-15/QT10-15
Vibration Frequency (times/min) 4350/4350/4350
Major Vibration Type Table and Mould Vibration
Molding Cycle(s) 15-20/15-20/15-20
Power (kw) 27.5 /37/37
Rated Presser(mpa) 10-16/10-16/10-16
Maximum Presser(mpa) 31.5 /31.5/31.5
Weight(t) 8.8/10/11
Pallet Dimension(mm) 1000*620*25/1000*850*250/1150*850*250
Dimension of Exterior(under working condition ,mm) 6500*1600*3000 /7000*1800*3000/8000*1800*3000
Capacity of cement hydraform brick making machine
Block (390×190×190mm)
6pcs/pallet 1440pcs/hour
8pcs/pallet 1920pcs/hour
10pcs/pallet 2400pcs/hour
Hollow Brick (240×115×90mm)
14pcs/pallet 3360pcs/hour
22pcs/pallet 5280pcs/hour
24pcs/pallet 5760pcs/hour
Standard Brick (240×115×53mm)
30pcs/pallet 7200pcs/hour
42pcs/pallet 10080pcs/hour
51pcs/pallet 12240pcs/hour
*Special kind of block can be produced according to customer's requirement.
The mould is flexible ,that means if customers want to produce what kind of brick /block then they just need to change the mould into the corresponding one.
Warmly welcome to visit our factory and we can take you and show you any of our clients' live production site to give you a more clear image about our exact performance.

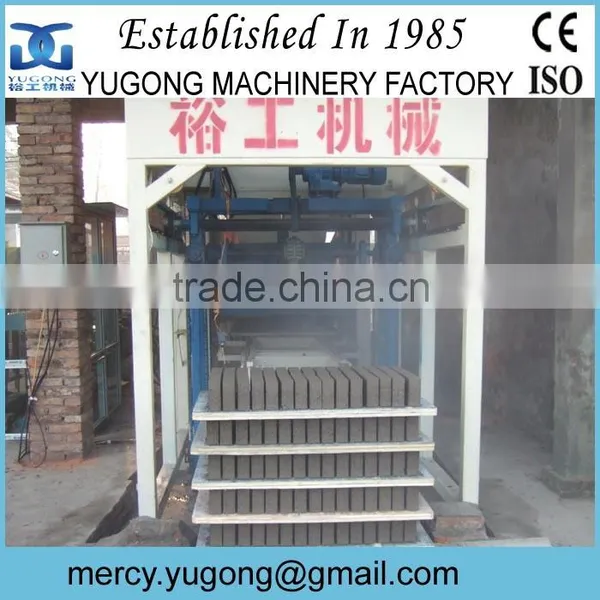

Established in 1985, Gongyi Yugong Machinery Manufacturing Factory is located in central China, and is a professional manufacturer mainly engaged in designing, manufacturing and exporting machinery. Our factory has a specialized R&D department and a dedicated export sector. Our main products include three categories - construction machinery, mining equipment and agricultural machinery. Based on high technology, superior after-sales services and more than 20 years of hard efforts, Yugong products have enjoyed great popularity among clients in domestic and overseas markets .
1.Q:Are you a factory or trading company?
A:We are the professional manufacturing factory and we have exported our products to many foreign countries.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Gongyi City( Henan Province, China, )near Zhengzhou City.You can fly to Zhengzhou Xinzheng International Airport and we can go to airport to pick you up directly.
All our clients from home or abroad, are warmly welcome to visit our factory and inspect our products!
3.Q:How does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality controlling from the very beginning
to the very end. Our factory has gained CE, SGS authentication.
CEMENT HYDRAFORM BRICK MAKING MACHINE
