Help CenterAutomatic Concrete Brick Making Machine, With PLC Control System Concrete Brick Machine
Related Products
-
Extreme Durability QT4-20 Concrete Brick Machine/Fly Ash Brick MachineUS$ 18,888 - 58,800MOQ: 1 Set -
QT4-20 Semi-automatic Concrete Brick Making Machine,concrete Brick MachineUS$ 18,888 - 58,800MOQ: 1 Set
-
Factory Delivery With 30 Years Experience Concrete Brick Making MachineUS$ 29,800 - 59,800MOQ: 1 Set
-
Yugong Factory Automatic Concrete Brick Making Machine, Concrete Block Machine PriceUS$ 29,800 - 59,800MOQ: 1 Set
-
High Efficiency Automatic Brick Making MachineUS$ 48,800 - 58,000MOQ: 1 Set
Specifications
concrete brick machine1.Economical
2.Extreme durability
3.Hydraulic press type
4.Can make different kinds of bricks
concrete brick making machine,concrete brick machine
Yugong Factory automatic concrete brick making machine, concrete brick machine
Best Selling in China
In Zhengzhou city ( 80 kms far away from our factory, near Zhengzhou Xinzheng International Airport),there are about 25-30 sets of semi-automatic fly ash brick making machines which are under using by our customers.
In Jiaozuo city /area(80-120kms far away from our factory),there are about 15sets of full automatic block fly ash making machines which are under using by our customers.
In Pingdingshan area (about 260 kms far away from our factory), there are about 35 sets of full automatic fly ash brick making machine which are under using by our customers.
Best selling in India
We have agent in India,he is one of our old costomers,trust us and approved our products,became our india agent,this brick making machine sells very well in India.
Capacity of concrete brick making machine, concrete brick machine
Block (390×190×190 mm) | |
10pcs/pallet |
2400pcs/h |
8pcs/pallet |
1920pcs/h |
6pcs/pallet |
1440pcs/h |
Hollow Brick (240×115×90 mm) | |
24pcs/pallet |
5760pcs/h |
22pcs/pallet |
5280pcs/h |
14pcs/pallet |
3360pcs/h |
Standard Brick (240×115× 53 mm) | |
51pcs/pallet |
12240pcs/h |
42pcs/pallet |
10080pcs/h |
30pcs/pallet |
7200pcs/h |
The mould is flexible ,that means if customers want to produce what kind of brick /block then they just need to change the mould into the corresponding one.
Specifications Of concrete brick making machine, concrete brick machine
Model |
QT10-15 |
QT8-15 |
QT6-15 |
Vibration Frequency(times/min) |
4350 |
4350 |
4350 |
Major Vibration Type |
Table and Mould Vibration |
||
Molding Cycle(s) |
15-20 |
||
Power (kw) |
37.5 |
32 |
27.5 |
Rated Presser (mpa) |
10-16 |
||
Maximum Presser (mpa) |
31.5 |
||
Weight(t) |
11 |
10 |
8.8 |
Pallet Dimension (mm) |
1150×850×30 |
1000×850×25 |
1000×620×25 |
Dimension of Exterior(mm) |
8000×1800×3000 |
7000×1800×3000 |
6500×1600×3000 |
Installation Service
Our factory could send one or two of engineers to buyer's place to direct the installation and give the operation training.
After-sale service
Our double layer ring dies wood pellet mill,we promise with a 3 year warranty, within 3 years time from the date of purchase,if nalfuntions arise due to manufacturing quality factor,factory is responsible for free maintenance.

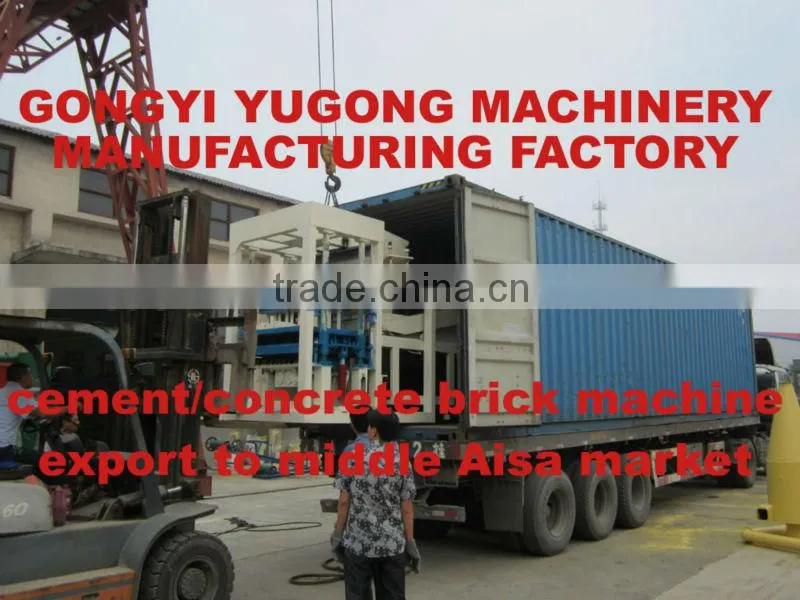

Packing to containers & shipping to overseas market -concrete brick machine
Choose us means choose reliable quality,best price and thoughful after-sale service!
1.Q:Are you a factory or trading company?
A:We are the professional manufacturing factory and we have exported our products to many foreign countries.
2.Q:How does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE, SGS authentication.
3.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Gongyi City( Henan Province, China, )near Zhengzhou City.You can fly to Zhengzhou Xinzheng International Airport and we can go to airport to pick you up directly.
All our clients from home or abroad, are warmly welcome to visit our factory and inspect our products!
