Amplifier Introduction:
------------------------------------------------------------------------------------------------------------------
FP series amplifiers are with switch power supply. Its compact and precise structure makes it high-performance. Each channel has independent adjustable peak output voltage, which enables the amplifier to drive speakers with different power easily. Intelligent protecting circuit provides advanced technology to protect the internal circuits and connected loads, so that the amplifiers and speakers can still be operated in extreme conditons.
Applied to situations like Performance, Night Club, etc.
------------------------------------------------------------------------------------------------------------------
Amplifier Specifications
Model |
FP7000 |
8 ohms Stereo Power |
2X1450W |
4 ohm Stereo Power |
2X2800W |
2 ohm Stereo Power |
2X3500W |
8ΩBridged Power |
5600W |
4ΩBridged Power |
7000W |
Frequency Response(+o/-0.3dB,1W/8Ω) |
20 Hz - 34 kHz |
THD 20 Hz - 20 kHz for 1 W |
<0.1% |
Signal-to-Noise Ratio |
>112 dBA |
Channel separation (Crosstalk) at 1 kHz |
>70 dB |
Input Connectors (per channel) |
3-pin XLR, electronically balanced |
Output Connectors (per channel) |
Binding Posts 2-pole |
|
TourClass Protection
|
ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input |
Operating voltage, 230 V / 115 V nominal |
130-265 V / 65-135 V selectable |
Voltage Gain(dB) |
23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
Input impedance |
20 kOhm |
|
Level adjustment (per ch.)
|
Front-panel potentiometer, 31 position detented from -inf to 0 dB |
------------------------------------------------------------------------------------------------------------------
Dimensions and weight:
Amplifier Dimensions (W×H×L): 483mm×88mm×396mm
Packing Dimension (W×H×L):: 560mm×180mm×500mm
Net weight: 12kg
Gross weight: 13.4kg
------------------------------------------------------------------------------------------------------------------

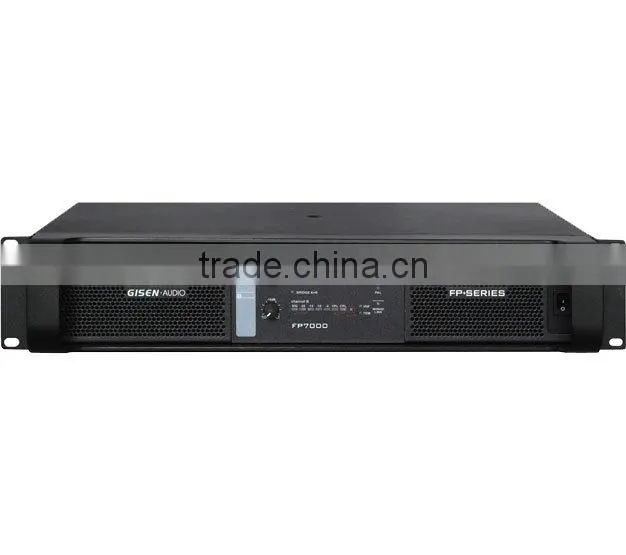

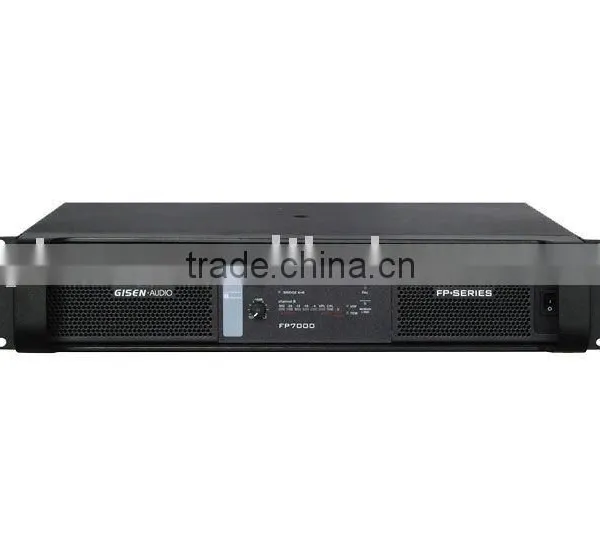

picture of FP7000 amplifier
