FP10000Q Line Array Amplifier Specifications
Model |
FP10000Q |
8 ohms Stereo Power |
4x1300W |
4 ohm Stereo Power |
4x2100W |
2 ohm Stereo Power |
4x2500W |
8ΩBridged Power |
2x4200W |
4ΩBridged Power |
2x5000W |
Frequency Response(+o/-0.3dB,1W/8Ω) |
20 Hz - 34 kHz |
THD 20 Hz - 20 kHz for 1 W |
<0.1% |
Signal-to-Noise Ratio |
>112 dBA |
Channel separation (Crosstalk) at 1 kHz |
>70 dB |
Input Connectors (per channel) |
3-pin XLR, electronically balanced |
Output Connectors (per channel) |
speakon connector |
|
TourClass Protection
|
ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input |
Operating voltage, 230 V / 115 V nominal |
130-265 V / 65-135 V selectable |
Voltage Gain(dB) |
23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
Input impedance |
20 kOhm |
|
Level adjustment (per ch.)
|
Front-panel potentiometer, 31 position detented from -inf to 0 dB |
Dimensions and weight:
line array Amplifier Dimensions (W×H×L): 483mm×88mm×396mm
Packing Dimension (W×H×L):: 560mm×180mm×500mm
Net weight: 12kg
Gross weight: 13.4kg
More pictures:

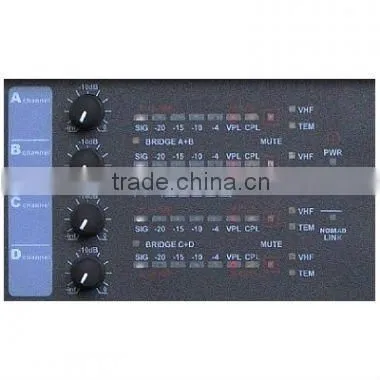

FP10000Q Line Array Amplifier front panel:

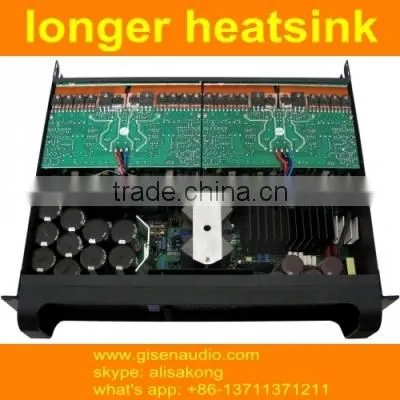

FP10000Q Line Array Amplifier top view:
FP10000Q Line Array Amplifier back panel:
FP10000Q line array amplifier plugs( American type and European type):
