FP10000Q 4x1300watt Line Array Amplifier

FP10000Q 4x1300watt Line Array Amplifier thumbnail-1
FP10000Q 4x1300watt Line Array Amplifier photo-1
US$ 1 - 999 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
oem, odm
Model Number:
fp10000q
Type:
Professional Amplifier
Contact Supplier Request Quote Chat Now
Guangzhou Gisen Audio Equipment Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name oem, odm
Model Number fp10000q
Type Professional Amplifier
Channels 4
Place of Origin Guangdong, China

Specifications

FP10000Q line array amplifier
switching power supply
8 ohms: 4x1300W amplifier
4 ohms: 4x2100W amplifier
2 ohms: 4x2500W amp

FP10000Q 4x1300watt Line Array Amplifier Specifications

Model

FP10000Q

8 ohms Stereo Power

4x1300W

4 ohm Stereo Power

 4x2100W

2 ohm Stereo Power

 4x2500W

8ΩBridged Power

 2x4200W

4ΩBridged Power

 2x5000W

Frequency Response(+o/-0.3dB,1W/8Ω)

 20 Hz - 34 kHz

THD 20 Hz - 20 kHz for 1 W

 <0.1%

Signal-to-Noise Ratio

 >112 dBA

Channel separation (Crosstalk) at 1 kHz

 >70 dB

Input Connectors (per channel)

 3-pin XLR, electronically balanced

Output Connectors (per channel)

 speakon connector

TourClass Protection





 ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input

Operating voltage, 230 V / 115 V nominal

 130-265 V / 65-135 V selectable

Voltage Gain(dB)

 23, 26, 29, 32, 35, 38, 41, 44 dB selectable

Input impedance

  20 kOhm

Level adjustment (per ch.)



 Front-panel potentiometer, 31 position detented from -inf to 0 dB

Dimensions and weight:

Amplifier Dimensions (W×H×L): 483mm×88mm×396mm

Packing Dimension (W×H×L):: 560mm×180mm×500mm

Net weight:  12kg

Gross weight: 13.4kg



More pictures:

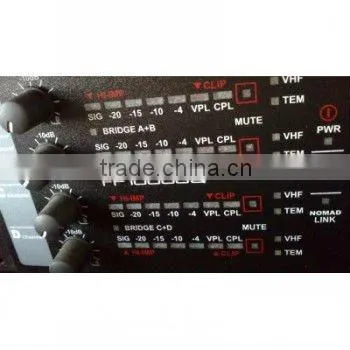

Line Array Amplifier front view:

FP10000Q 4x1300watt line array amplifierFP10000Q 4x1300watt line array amplifier

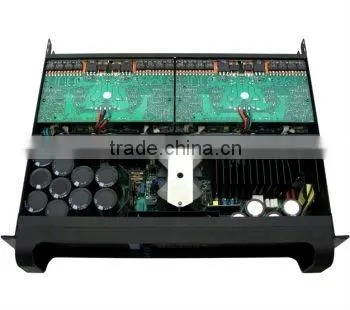

Line Array Amplifier top view:



FP10000Q 4x1300watt line array amplifier

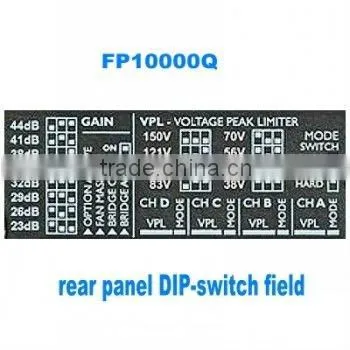

Line Array Amplifier back view:

FP10000Q 4x1300watt line array amplifierFP10000Q 4x1300watt line array amplifierFP10000Q 4x1300watt line array amplifier

line array amplifier plug:

FP10000Q 4x1300watt line array amplifierFP10000Q 4x1300watt line array amplifier
