Specifications
MC1502 1500w switching amplifierswitching power supply
8 ohms: 2x1500w
4 ohms: 2x2200w
Class TD
MC1502 1500W SWITCHING AMPLIFIER SPECIFICATIONS:
Model |
MC1502 |
8 ohms Stereo Power |
2X1500W |
4 ohms Stereo Power |
2X2200W |
8 ohms Bridge Power |
4400W |
THD @ Rated Power 4 ohms 1 KHz |
<0.01% |
20Hz - 20KHz |
<0.03% |
Hum&Noise |
-103dB |
Input CMRR |
>80 dB |
Gain |
40dB |
Damping Factor 1 kHz, 8 ohms |
> 200 |
Input Sensitivity |
0.775V(0dB) 1.22V 1.6V |
Frequency Response |
20Hz-20kHz,+0/-0.5dB |
Input Impedance(actively balanced) |
20kΩ |
Power Requirement |
220 VAC @ 30amps Other voltage can be customized |
Amplifier Dimensions(H*W*L) |
88mmX483mmX443mm |
Carton Dimension(H*W*L) |
155mmX600mmX640mm |
Net Weight |
13kg |
Gross weight |
17.2kg |
More pictures:

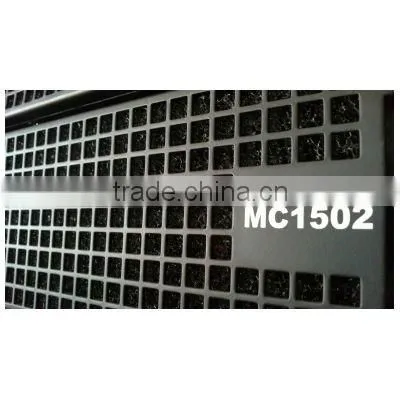

1500w switching amplifier front view:

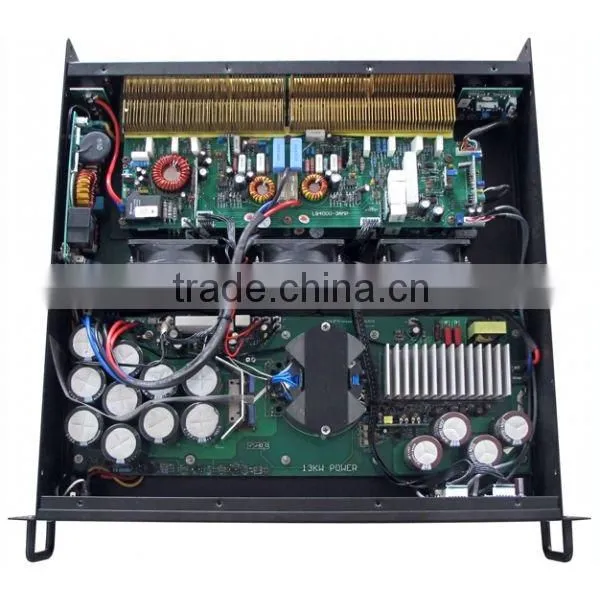

1500w switching amplifier top view:
1500w switching amplifier back view:
power amplifier heat sink:
1500w switching amplifier plug:
