Shaanxi APS Machinery Equipment Co., Ltd.: Shaanxi, China; Main products: drilling stabilizer, Drill pipe, mud pump and parts, wellhead tools, solid control products

Home > Products > Oil production machinery > Oil and Gas API 11B Sucker Rod/Petroleum Sucker Rod in Drill Rod for Drilling Tools

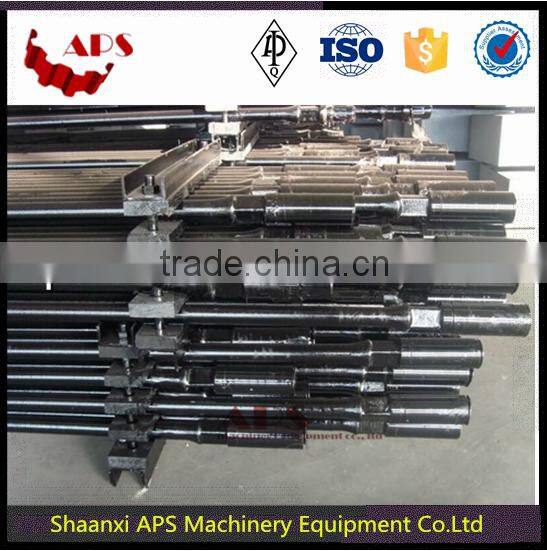

Oil and Gas API 11B Sucker Rod/Petroleum Sucker Rod in Drill Rod for Drilling Tools

FOB Price

US$ 1 - 500 / Piece

100 Pieces(Min. Order)

Port Tianjin Port
Payment TermsT/T Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	APS	Model Number	K, D, KD etc.
Type	Sucker Rod	Machine Type	Drilling Tool
Certification	API	Material	Other, AISI 4140, AISI 4142 Alloy steel etc.
Processing Type	Forging	Use	Well Drilling

Product Description

Oil and Gas API 11B Sucker rod/Petroleum sucker rod in drill rod for Drilling Tools

Product Description

SUCKER ROD

A sucker rod is a steel rod, threaded at both ends, used in the oil industry to join together the surface and downhole components of a reciprocating piston pump installed in an oil well. The pump jack is the visible above-ground drive for the well pump, and is connected to the downhole pump at the bottom of the well by a series of interconnected sucker rods.

-Hollow/Solid Sucker Rod

-Sinker bar (Heavy Weight Sucker Rod)

-Polish Rod

-Surface Anti-Corrosive Sucker Rod

-Grade : Grade K, D, KD etc.

-Couplings:

----Standard class T coupling: 5/8”; 3/4”; 7/8”; 1”; 1 1/8”.

----Class T slim hole coupling: 5/8”SH; 3/4”SH; 7/8”SH; 1”SH; 1 1/8”SH.

----Class SM coupling: 5/8”; 3/4”; 7/8”; 1”;

----Sub-Coupling: 5/8”×3/4”; 3/4”×7/8”; 7/8”×1”; 1”×1 1/8”.

Technical parameter

Materials & Size Specifications

Type	Sucker Rod		Polish Rod	Heavy Weight Sucker Rod
Material Class	Class D	20CrMoA	As Requirements	As Sucker Rod
		30CrMoA
		35CrMoA
	Class K	20Ni2Mo
	Class KD	20CrNiMo
		AISI4720
		4330V
OD Range	5/8”, 3/4”, 7/8”, 1”		1 1/8”; 1 1/4”; 1 1/2”.	1 1/4”; 1 3/8”; 1 1/2”; 1 5/8”; 1 3/4”
Length Range	2Ft; 4Ft; 6Ft; 8Ft; 10Ft; 12Ft; 25Ft; 26.4Ft; 30Ft.		16Ft; 22Ft; 25Ft; 26Ft; 30Ft.	2Ft; 4Ft; 6Ft; 8Ft; 10Ft; 12Ft; 25Ft; 26.4Ft; 30Ft.

Grade and Mechanical Properties of the sucker rod

No.	Grade	Tensile Strength Rel(Mpa)	Yield Strength Rm(Mpa)	Percentage Elongation A(%)	Contraction Percentage Of Area Z(%)
1	C	620-795	≥415	≥13	≥50
2	K	620-795	≥415	≥13	≥60
3	D	795-965	≥590	≥10	≥50
4	KD	795-965	≥590	≥10	≥50
5	HL	965-1195	≥795	≥10	≥45
6	HY	965-1195	—	—	—

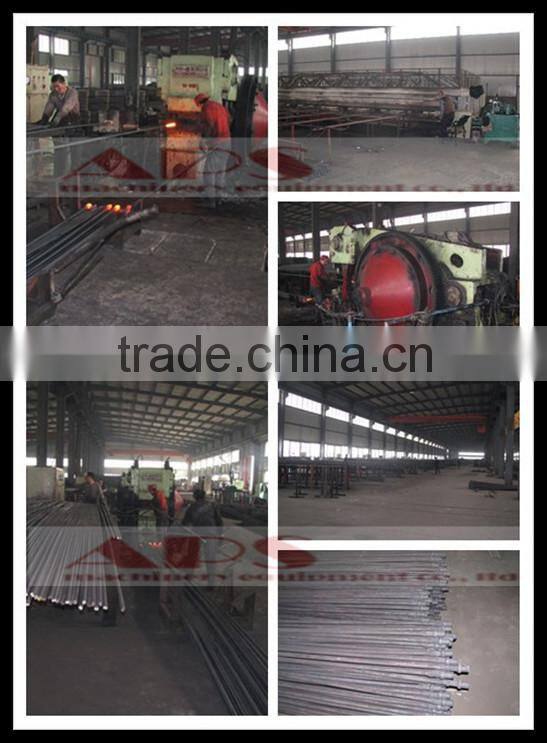

Test & Production

Note
