NEW,CE,ISO, Hydraulic Press 4 Colum - H Frame ,YTT32-350T-500T-630T

Name: NEW,CE,ISO, Hydraulic Press 4 Colum - H Frame ,YTT32-350T-500T-630T
Brand: CHINA APS
SKU: 129814183
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

CHINA APS

Model Number:

YTT32-350T-500T-630T

Condition:

New

Shaanxi APS Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name CHINA APS

Model Number YTT32-350T-500T-630T

Condition New

After-sales Service Provided Engineers available to service machinery overseas

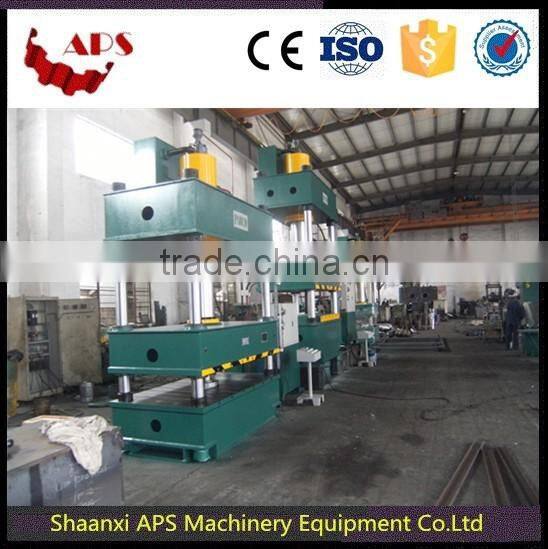

Hydraulic Press 4 Colum -H Frame

YTT32-350T-500T-630T parameter:

Numbers			Unit	Model
Numbers			Unit	YTT32-350T	YTT32-500T	YTT32-630T
1	Rated pressure		KN	3500	5000	6300
2	Knock-out pressure		KN	630	1000	1000
3	Max.hydraul ic pressure		Mpa	25	25	25
4	Stoke of slide		Mm	800	900	900
5	Stroke of knock-out cylinder		Mm	300	350	350
6	Destance between down-flat of slide and worktable		Mm	1200	1500	1500
7	Speed of slide	Empty descending	Mm/s	120	100	80
		Pressing		8-15	6-12	10-15
		Return		80	70	60
8	Effective area of table	L-R	Mm	1200	1400	1500
8	Effective area of table	F-b	Mm	1200	1400	1500
9	Overall dimensions of machine	L-R	Mm	3200	4100	4200
		F-B		1500	1800	2000
		Height above ground		4300	5000	5600
10	Motor power		KW	22	44	60
