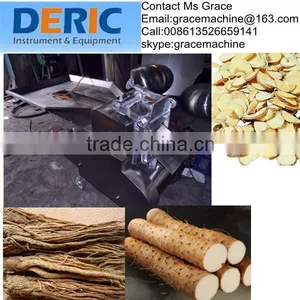

Hot!!!Good quality low price full stainless steel herbal slicing machine
Use of herbal slicing machine
The machine is suitable for cutting Chinese Herbal Medicine, can tubers, leather rattan, leaves grasses, herbs such conduct mass production and small batch production, the material can be used for slicing food, aquatic products, tobacco and other industries,shredded . The machine cutting of sheet-type uniform, neat, little good loss, low noise
Model |
DRC-200 |
Entrance size |
200*55mm |
Thickness |
0.5-15mm |
Speed |
300/min |
Capacity |
50-600kg/h |
Power |
3kw |
Voltage |
380v/50Hz |
Weight |
750kg |
Dimension |
1800*800*1150mm |
The structural characteristics of herbal slicing machine
The machine retreat material by the motor, the transmission mechanism, knife, step, adjustable turret machinery and other components, the use of advanced stepper feeding, so cutting the sheet-type uniform, free from the grasp of feeding, not material adverse circumstances squeeze knife. Because rational layout, so the machine is easy to operate, compact, lightweight, and light weight. This machine is mainly the sending and cutting two parts, machinery etc.
Working principle of herbal slicing machine
Due to the power source from the same motor and transmission part and the cutting part of the movement is independent of a system, related to each other and cooperate closely, the whole exercise, eccentric wheel friction wheel - - - - sprocket gear shaft when movement in step (delivery), along the knife head is with the door to the most superior to fall back along the mouth movement, so the whole sword door open, to complete delivery movement. And eccentric, friction wheel, gear, chain wheel shaft stop delivering drugs in sports clearance (a handle to the opposite direction and friction wheel off) the crankshaft from the upper to the lower, both head from the top edge movement to the edge, so as to cut into round.
herbal slicing machine technical:
Model |
DRC-100 |
DRC-200 |
DRC-300 |
Power(kw) |
1.5 |
3 |
4 |
Thickness(mm) |
0.5-60 |
0.5-60 |
0.5-30 |
Capacity(kg/h) |
30-500 |
50-1000 |
100-1500 |
Speed(rp/min) |
0-350 |
0-350 |
0-350 |
Weight(kg) |
500 |
800 |
900 |
Dimension(mm) |
1400*600*850 |
1800*800*1150 |
1900*900*1100 |
MOQ: One set
Packaging: non-fumigation exporting wooden case
Payment terms: full payment by T/T , or Western Union, Paypal, Escrow
Delivery time: 4-7 days after order confirmed.
Warranty:
Two full years’ warranty and lifetime maintenance service: any problem caused by the equipment itself in the first two years after purchase, new spare parts will be provided freely. After that, spare parts will be supplied with cost price.
Valid time: This offer subjects to our final confirmation.

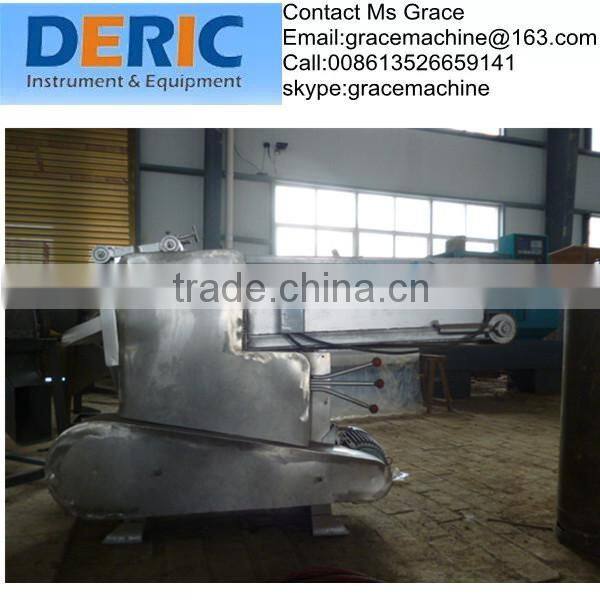

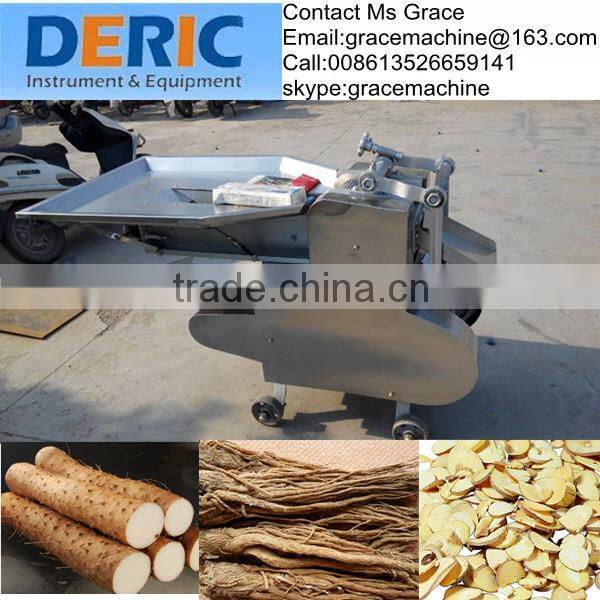

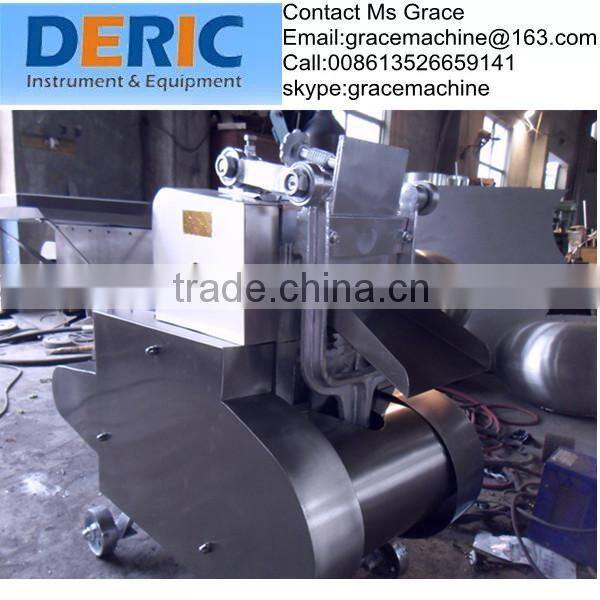

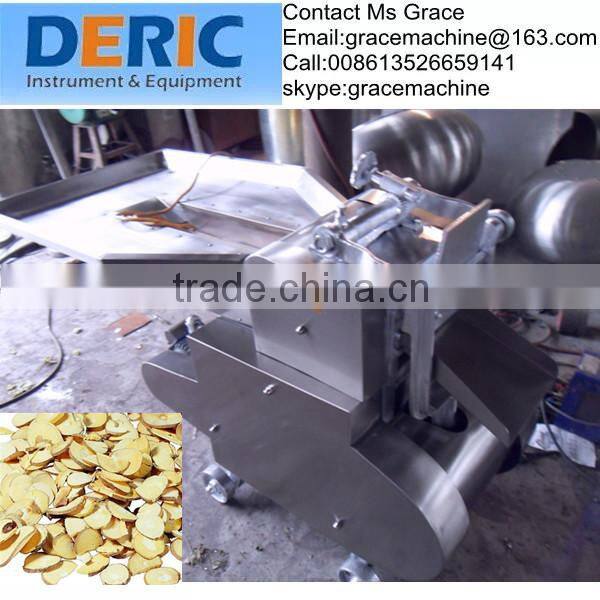

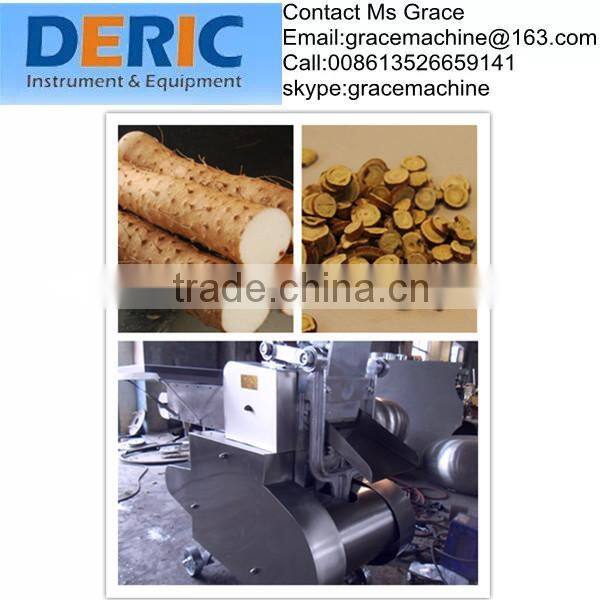

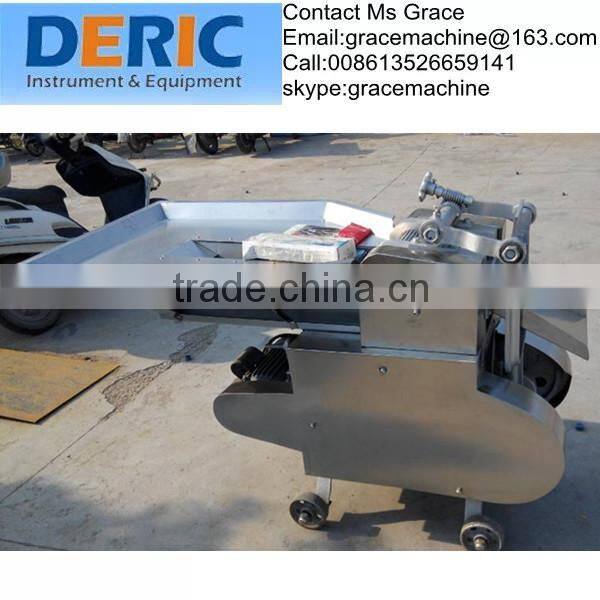

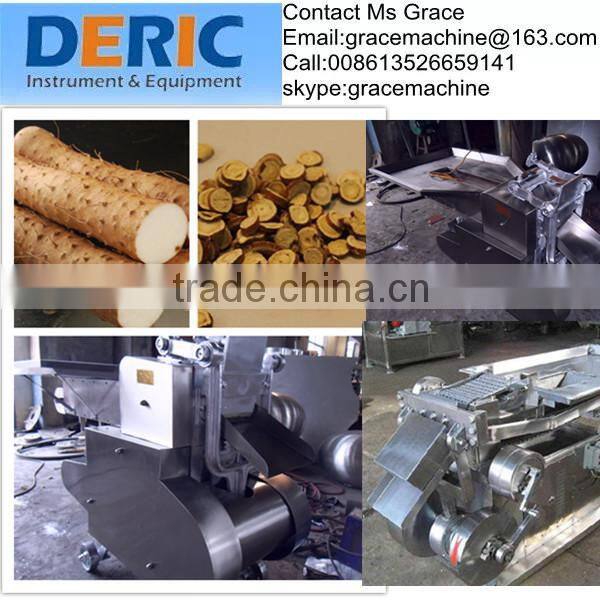

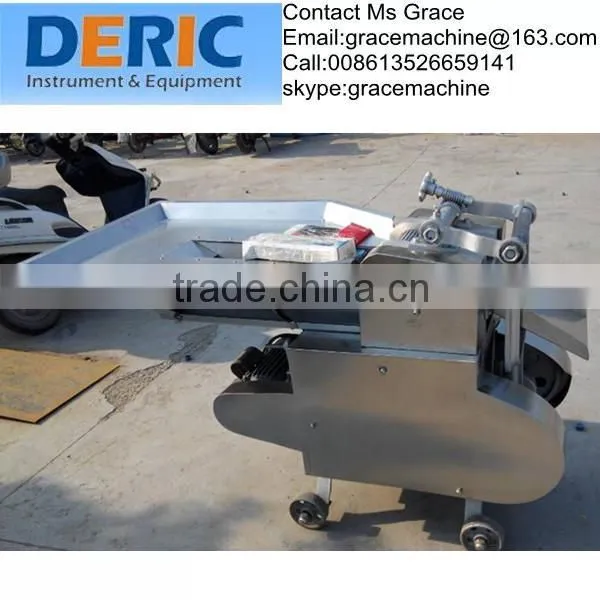

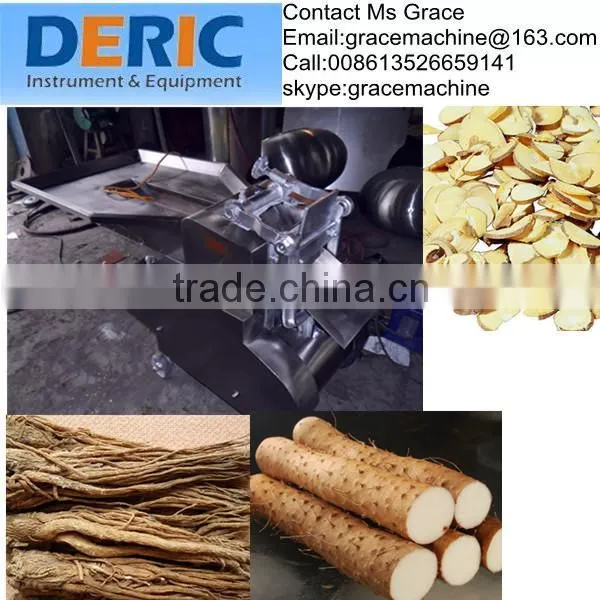

Show pictures about the herbal slicing machine
