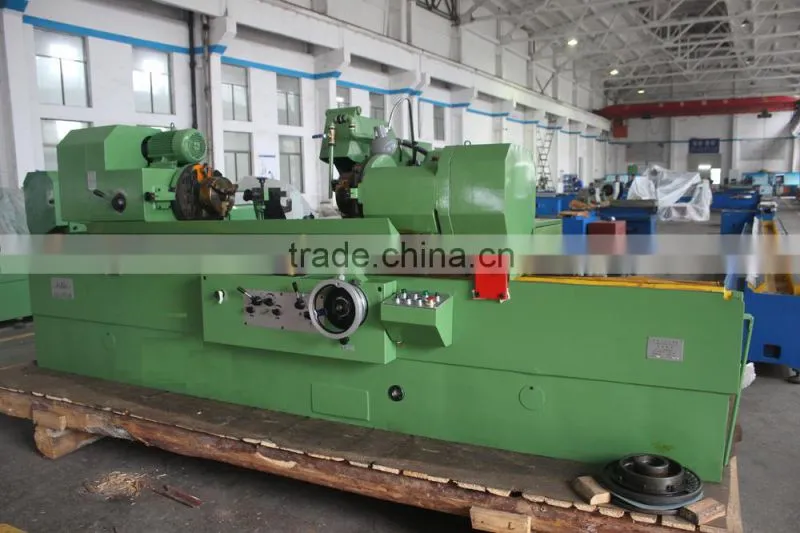

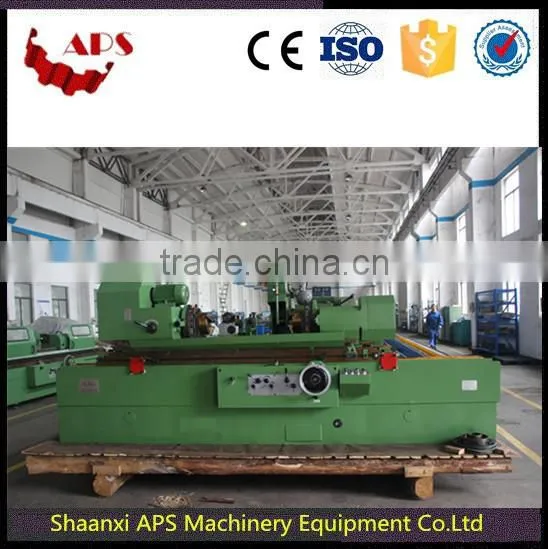

Crankshaft grinding machine MQ8240
Crankshaft Grinding Machine used in automobile, tractor, diesel engine works and their repair shops to grind the journals and crank pins crankshafts,
and also including general cylindrical grinding. Wheelhead rapid approach & withdraw and worktable longitudinal travel are controlled by hydraulic system.
The machine have safe interlocking, when processing crank shaft, put option switch in “crank shaft” position, when wheelhead in grinding position,
the worktable only can manually operation but could not controlled by hydraulic system.when wheelhead in withdraw position, the worktable can controlled by hydraulic system.
when grind general cylindrical workpiece, hydraulic longitudinal travel speed and permit to adjust steplessly its speed.Workpiece, grinding wheel, hydraulic pump
and cooling pump is drived by separated motor.
Model |
MQ8240*1000 |
|||
Radius of crankpins |
0-80mm |
|||
Longitudinal cylindrical grinding diameter |
30-200mm |
|||
Max. Workpiece weight |
80kg |
|||
Center height |
220mm |
|||
Max. Swing diameter over table |
400mm |
|||
Max. Workpiece length |
1000mmm |
|||
Workhead spindle speeds |
42/65/84/130 r/min |
|||
Tailstock spindle sleeve travel |
30mm |
|||
Wheelhead spindle speed |
930r/min |
|||
Max. Wheelhead displacement on lead screw |
275mm |
|||
Wheelhead rapid approach & withdraw |
100mm |
|||
Wheel feed per grad of hand wheel |
Coarse |
0.01mm |
||
|
Fine |
0.0025mm |
||
Wheel size |
750x40x305mm |
|||
Hydraulic longitudinal travel speed |
0.1-4m/min |
|||
Max.table swivel |
Clockwise |
1°30″ |
||
|
Counterclockwise |
3° |
||
