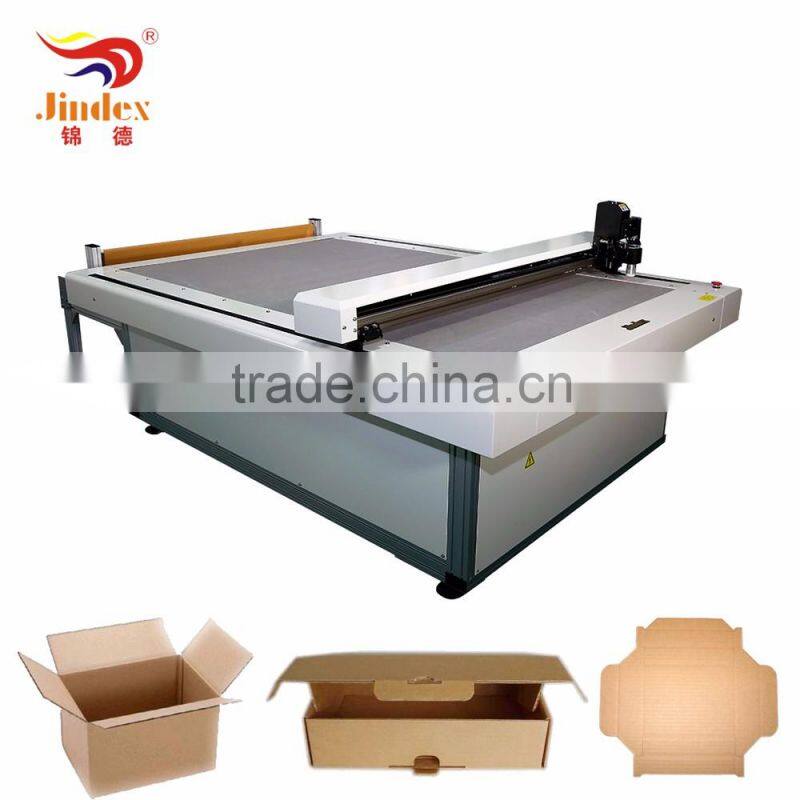

CNC Oscillating Knife cat card board Cutting Machine
Functions and special feature:
--ectric shock and head, strength, vibration frequency is high, up to 25000 times per minute.
--The whole machine adopts the high precision module of the first level transmission mechanism, the response is faster, the positioning accuracy is higher, the overall performance is more stable.
-- Using Servo-motor from Mitsubishi, With computerized control, the depth of cutting and creasing can be adjusted precisely according to the need of box designer and makers.
--The machines have the machines have three types of functional heads: vibration cutting head, creasing wheels, V-Cutter, high speed milling Router, with drawing pen. It enable the machine can work on different materials; corrugated paper, gray board, white cardboard, plastic sheets, composite materials, textiles, leathers, foam board, sponge etc at option of 15mm maximum cutting height.
-- Drawing lines, drawing, text annotation, half cutting, full knife cutting, a complete. Meet the low volume, multi order, multi style production target.
--Programmable multi axis motion controller, stability and operation to achieve the leading technical level at home and abroad.
--Table mat are imported from USA, the fiber board are durable, with good, permeability, very stable in thickness and shape.
--The completely independent research and development of computer control system, namely the humanized operation interface, support for remote teaching, remote maintenance, remote upgrade, let the customer with more peace of mind.
--Red Ultra-light positioning device for printed work can be cut accurately in easy and quickest way.
--Any CAD software can be connected. It is widely used for plotting and cutting for the industries and sectors like garment, shoe making, cases, handbags, laser cutter molds plotting, lighting fixtures, advertising gifts, self-adhesive and color box packing.
--Optional charging rack and automatic feeding device.
Table of Technical Information on Carton Color Box Proofing Computerized Cutting Machines series | |||
|
Technical information/model |
JD-AS-1410C |
JD-AS-1813C |
JD-AS-2516C |
|
Operation properties |
Computer operation and cutting machines can be used simultaneously for quick data transmission capable of continuous operations |
||
|
Cutting speed |
Maxi 1500mm/s |
||
|
Cutting Thickness |
0.2-60mm |
||
|
Cut materials |
Corrugated materials, sponge and foam board, lvory cardboard, gray paper, corrugated paper, plastic sheets, composite materials and leather materials maximum cutting thickness at 15mm |
||
|
Number of pens |
8 different groups of strokes, half blades, full blades and pressure wheel setup |
||
|
Positioning device |
Red Ultra-Light |
||
|
Method for fixing paper |
Vacuum absorption |
||
|
Cutting tolerance |
±0.2mm |
||
|
Repeat accuracy |
less than or equal to 0.05mm |
||
|
Minimum circle |
greater than or equal to5mm diameter |
||
|
Transmission interface |
Ethernet port |
||
|
Format compatible |
Compatibility format AI software, Autocad, Coreldraw and all box software |
||
|
Direcive system |
HP-GL and GP-GL |
||
|
Digital control panel |
Liquid crystal display and contact button |
||
|
Transmission materials |
Straight-line guide rails and imported synchronous belts |
||
|
Supply voltage |
AC 220V 380V ±10%,50HZ |
||
|
Motor type |
JD-AC series adopts stepping motor, JD-AS series adopts servo motor |
||
|
Vibration blade |
Vibration cutter head motor at 25000rpm |
||
|
Cutting area |
1400mm*1000mm |
1800mm*1300mm |
2500mm*1600mm |
|
Overall dimension |
2160*1680*1220mm |
2570*1990*1200mm |
3300*2250*1200mm |
Samples:
Q1: What is the payment way?
A: We usually accept payment by T/T, L/C, Western Union
Q2 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be custom or if you have your own designed idea and that will be our honor to customize for you.
Q3: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are alibaba legitimate certification company (VIP), and we support payment terms like L/C, Escrow, to ensure your safety.
Q4: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
Q5 : Where will the orders be shipped from?
A: It will ship from the main ports China. And We will find the shipping company which will offer the best and most economical freight for our customers.
