Specifications
1. Powerful (Max: 1000T), it can split the stone or concrete easily.2. High Efficiency, it can split the stone in 5-12 seconds

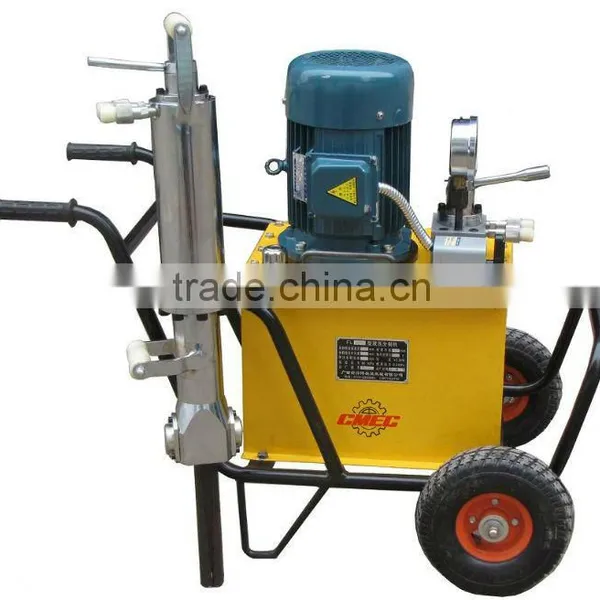

The Hydraulic Rock & Concrete splitter is our newly developed Product which is a powerful and extremely cost-effective alternative to other conventional demolition tools. It can develop a very huge splitting force (Maximum 1000T) when it put into the pre-drill holes of rock or concrete, and crack it into pieces within several seconds.
Now it is widely used in mineral mining (cave mining), civil engineering construction and demolition. It is also an indispensable tool in construction, river dredging, salvation etc. Our main Models of hydraulic pump and cylinder are as follows. If you are interested in, please let us know which type of pump and cylinder you need. We will offer a very competitive price for you.
Splitting cylinders:
Type | Dia. Of piston | Dia. of drill hole | Depth of drill hole | Length of wedge | Width of crack | Splitting time | Theoretical splitting force | Practical splitting force | Weight |
BY80S | 80 | Ø38-42 | ≥300 | 150 | 10~35 | 5~12 | 500 | 280 | 23 |
BY80L | 80 | Ø38-42 | ≥400 | 200/250 | 10~40 | 5~12 | 650/600 | 350/300 | 25/26 |
BY90S | 90 | Ø42-46 | ≥600 | 300 | 10~40 | 5~12 | 680 | 420 | 30 |
BY90L | 90 | Ø42-46 | ≥600 | 380 | 10~40 | 5~12 | 650 | 500 | 31 |
BY100 | 100 | Ø44-46 | ≥600 | 300/380 | 10~40 | 5~12 | 780 | 550 | 33 |
BY105 | 105 | Ø44-46 | ≥600 | 300/380 | 10~40 | 5~12 | 880 | 600 | 33 |
BY110 | 110 | Ø46-48 | ≥600 | 300/380 | 10~40 | 5~12 | 1080 | 700 | 32 |
Hydraulic pump units:
Type of Motor | Dimension | Weight | Volume of tank | Working medium | Rating | Working pressure | Pump capacity | Suitable for splitting cylinders |
Electric motor | 380 × 240 × 410 | 23 | 5 | Anti-wear hydraulic oil | 0.75KW(220V/380V) | 55-60 | 0.7 | 1 |
384 × 280 × 620 | 75 | 30 | 4KW(380V) | 2-13 | 1-10 | |||
450 × 410 × 700 | 100 | 40 | 7.5KW(380V) | 13 | 1-10 | |||
Diesel engine | 1150 × 1180 × 940 | 120 | 40 | 4.2KW | 55-60 | 2-13 | 1-10 | |
Gasoline engine | 1200 × 1170 × 800 | 100 | 40 | 5.5KW | 55-60 | 2-13 | 1-10 | |
Pneumatic motor | 384 × 280 × 620 | 100 | 40 | 4.4KW | 55-60 | 2-13 | 1-10 |
