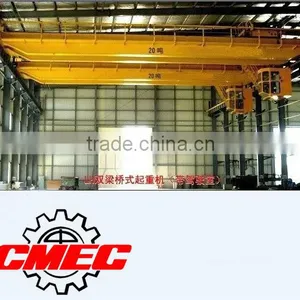

Help CenterLH 20/5T Double Girder Overhead Crane(EOT Crane)
Related Products
-
LH 16/3T Double Girder Eot Overhead CraneNegotiableMOQ: 1 Set -
QD 50 Ton Overhead Crane With High Working EfficiencyNegotiableMOQ: 1 Set
-
30 Ton Double Girder Overhead Crane With Iso CertificateNegotiableMOQ: 1 Set
-
20 Ton Double Girder Overhead CraneNegotiableMOQ: 1 Set
-
16 Ton Eot Overhead Crane With Hook,EOT Crane, Iso CertificateNegotiableMOQ: 1 Set
Specifications

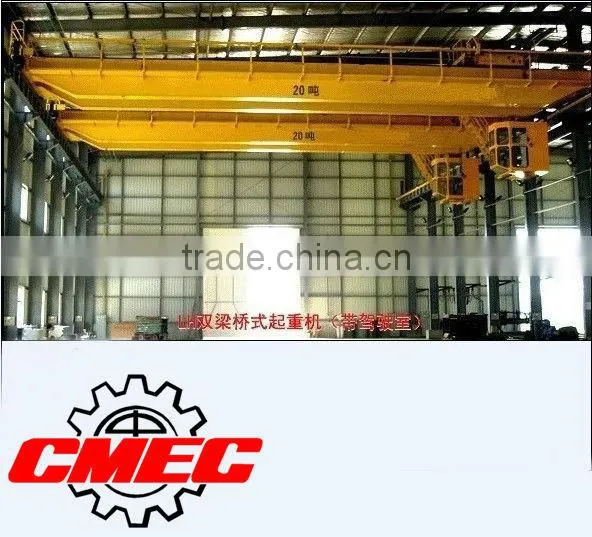

1,Double girder overhead crane2,welding box beam
3,trinity-drive system or motor and speed reducer
4,Long time working lif
According to JB/T 3695 <Overhead Crane with Electric Hoist> designing and manufacturing
It is used with fixed hoists like CD1 or MD1 type. Widely used in machinery fabrication, metallurgical plant auxiliary workshop, storage, stock ground, and power station.
It is also can be used as regular double-girder overhead crane in Textile industry or food industry.
But it is forbided to use in inflammable, explosive or erosion environment.
Mechanical feature
Double main girder, welding box beam, camber accord with National Standard.
Crane travelling use trinity-drive system, or motor and speed reducer.
High quality autometic welding and NDT inspection,
Shot-blasting for complete girder after welding, stress release
It is made of carbon steel with high quality of Q235B or Q345B.
Main girder is bolted connection of 10.9 grade.
Electrification and outfitting
Conductor power supply;
All hoist and crane movements are independent and can be run simultaneously.
The control panels are finished to withstand corrosion
The components are positioned in a maintenance friendly way, and the whole layout provides good protection against accidental contact
Crane travelling protection grade is IP54 or IP44, F grade insulation,
Long time working life.
|
All hoist and crane movements are independent and can be run simultaneously. The control panels are finished to withstand corrosion, IP54
The components are positioned in a maintenance friendly way, and the whole layout provides good protection against accidental contact.
The multi-wire type fixed cables with plastic insulation are intended for crane usage. |
|

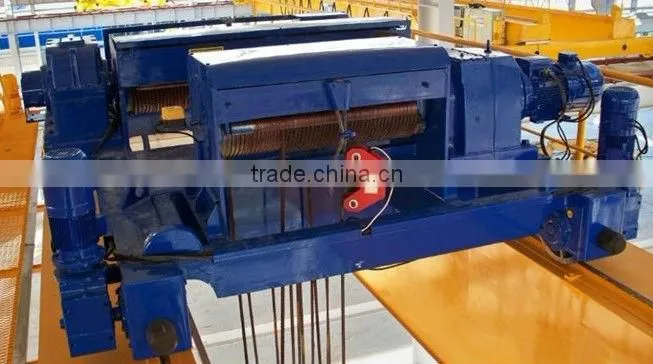

Lifting units
First class lifting units, maintenance free
|
Safety protection Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on! Hooks with latch |
Double main girder Operation Method
It has ground controler and cabin control
Cabin includes open cabin, close cabin. Open cabin also includes left open and right open.
The door's direction has end open, side open and top open. You can choose any one as your need.
Specifications:
Rated capacity |
t |
20/5 |
|||||||||||||||||
Operational type |
|
Ground; cab |
|||||||||||||||||
|
speed |
Main hook lifting |
m/min |
4.2(4.2/0.42) |
||||||||||||||||
Aux hook lifting |
8(8/0.8) |
||||||||||||||||||
trolley travelling |
20 |
||||||||||||||||||
Crane travelling |
Ground |
21 |
|||||||||||||||||
cab |
42 |
||||||||||||||||||
|
motor |
Main hook lifting |
Model |
ZD152-4/18.5KW |
||||||||||||||||
Aux hook lifting |
ZD141-4/7.5KW |
||||||||||||||||||
Trolley travelling |
YDE90L1-4/1.5*2KW |
||||||||||||||||||
Crane travelling |
ground |
YDE90L1-4/1.5*2KW |
YDE100L2-4/3*2 |
||||||||||||||||
Cab |
ZDR112L2-4/3*2 |
YZRE132M1-4/4*2 |
|||||||||||||||||
Electric hoist |
|
HC, CD1, MD1 |
|||||||||||||||||
Lifting height |
m |
9,12,16,24,30 |
|||||||||||||||||
Working duty |
|
A3—A5 |
|||||||||||||||||
Power supply |
|
380v, 50HZ, three-phase |
|||||||||||||||||
Rail recommended |
|
P43 |
|||||||||||||||||
Span |
m |
7.5 |
10.5 |
13.5 |
16.5 |
19.5 |
22.5 |
25.5 |
|||||||||||
|
Max. wheel load |
Ground |
KN |
107.5 |
117.5 |
126.2 |
134 |
143.4 |
151.2 |
158.6 |
||||||||||
cab |
110.4 |
120.5 |
129.1 |
136.9 |
146.3 |
154 |
161.4 |
||||||||||||
|
Crane weight |
Ground |
kg |
9574 |
10841 |
12701 |
14838 |
17893 |
20499 |
23071 |
||||||||||
cab |
10651 |
11918 |
13778 |
15925 |
18980 |
21586 |
24158 |
||||||||||||
|

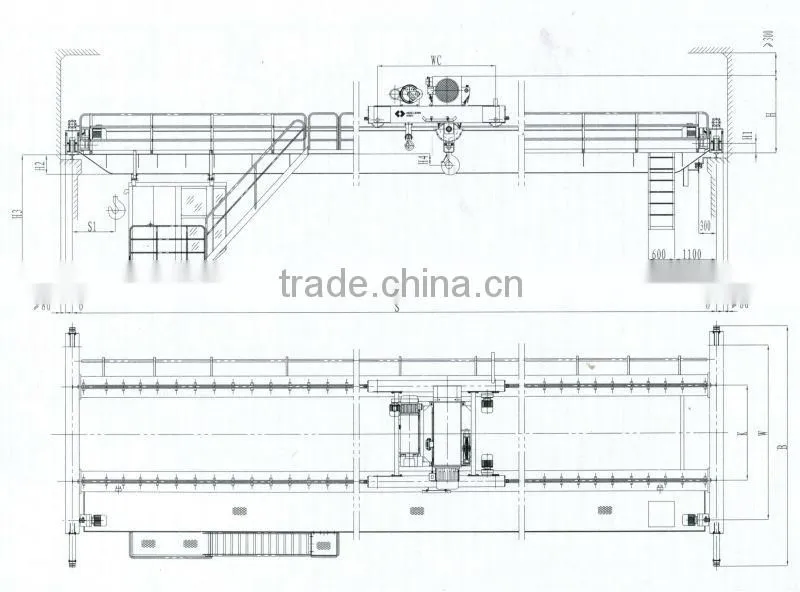

Dimension |
B |
mm |
5580 |
5780 |
6030 |
||||||||||||||
W |
mm |
3600 |
3800 |
4400 |
|||||||||||||||
WC |
mm |
2100 |
|||||||||||||||||
K |
mm |
2000 |
|||||||||||||||||
H |
mm |
1755 |
1758 |
1761 |
1764 |
1767 |
1770 |
1773 |
|||||||||||
H1 |
mm |
750 |
|||||||||||||||||
H2 |
mm |
53 |
153 |
253 |
353 |
453 |
553 |
703 |
|||||||||||
H3 |
mm |
2433 |
2533 |
2633 |
2733 |
2833 |
2933 |
2083 |
|||||||||||
H4 |
mm |
371 |
368 |
365 |
362 |
359 |
356 |
353 |
|||||||||||
B |
mm |
230 |
|||||||||||||||||
S1 |
mm |
1580 |
|||||||||||||||||
|
S2 |
mm |
2000 |
||||||||||||||||
