LH 16/3T Double Girder Eot Overhead Crane

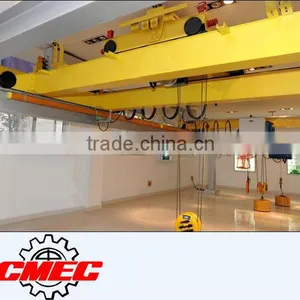

LH 16/3T Double Girder Eot Overhead Crane thumbnail-1

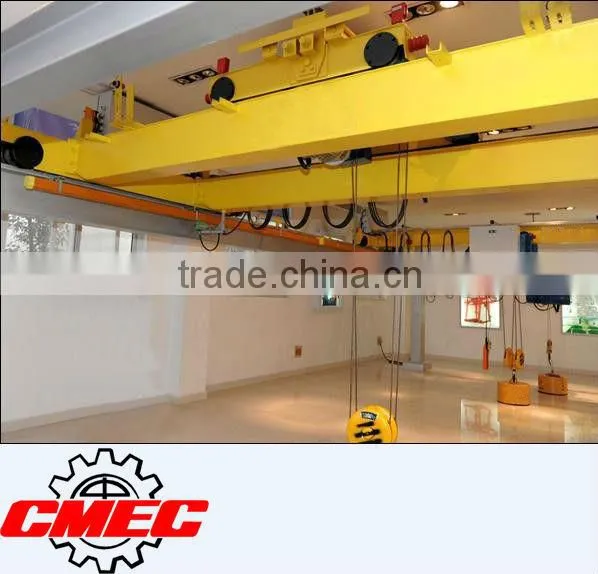

LH 16/3T Double Girder Eot Overhead Crane photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
machinery fabrication, metallurgical plant auxiliary workshop, storage
Rated Loading Capacity:
16T
Contact Supplier Request Quote Chat Now
China Machinery Engineering Henan Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application machinery fabrication, metallurgical plant auxiliary workshop, storage
Rated Loading Capacity 16T
Max. Lifting Load 35T
Max. Lifting Height 30M
Span 7.5-31.5M
Place of Origin Henan, China
Brand Name CMEC
Model Number LH
Certification ISO, Ce SGS
Warranty 12 month
After-sales Service Provided Engineers available to service machinery overseas

Specifications

eot crane
1,Double girder
2,welding box beam
3,trinity-drive system or motor and speed reducer
4,Long time working life

eot crane


Lifting Capacity 16T LH Type Overhead Crane with Electric Hoist



 According to JB/T 3695 <Overhead Crane with Electric Hoist> designing and manufacturing
It is used with fixed hoists like CD1 or MD1 type. Widely used in machinery fabrication, metallurgical plant auxiliary workshop, storage, stock ground, and power station.
It is also can be used as regular double-girder overhead crane in Textile industry or food industry.
But it is forbided to use in inflammable, explosive or erosion environment.





Mechanical feature



Double main girder, welding box beam, camber accord with National Standard.
Crane travelling use trinity-drive system, or motor and speed reducer.

High quality autometic welding and NDT inspection,

Shot-blasting for complete girder after welding, stress release

It is made of carbon steel with high quality of Q235B or Q345B.
Main girder is bolted connection of 10.9 grade.

LH 16/3T double girder eot overhead crane LH 16/3T double girder eot overhead crane


Electrification and outfitting

 Conductor power supply;

 All hoist and crane movements are independent and can be run simultaneously.

The control panels are finished to withstand corrosion

The components are positioned in a maintenance friendly way, and the whole layout provides good protection against accidental contact

Crane travelling protection grade is IP54 or IP44, F grade insulation,
Long time working life.

LH 16/3T double girder eot overhead craneLH 16/3T double girder eot overhead craneLH 16/3T double girder eot overhead craneLH 16/3T double girder eot overhead crane



All hoist and crane movements are independent and can be run simultaneously.

The control panels are finished to withstand corrosion, IP54



The components are positioned in a maintenance friendly way, and the whole layout provides good protection against accidental contact.



The multi-wire type fixed cables with plastic insulation are intended for crane usage.

 LH 16/3T double girder eot overhead crane



Lifting units



First class lifting units, maintenance free

LH 16/3T double girder eot overhead craneLH 16/3T double girder eot overhead crane









Safety protection

Weight overload protection device,

Top quality long time bearing polyurethane materials buffer,

Crane traveling limit switch,

Voltage lower protection function,

Emergency stop system,

current overload protection system and so on!

Hooks with latch



Double main girder Operation Method
It has ground controler and cabin control
Cabin includes open cabin, close cabin. Open cabin also includes left open and right open.
The door's direction has end open, side open and top open. You can choose any one as your need.





Specifications:



LH 16/3T double girder eot overhead crane







Rated capacity

t

10

Operational type



Ground; cab





speed

Main hook lifting





m/min

7(7/0.7)

trolley travelling

20

Crane travelling

Ground

20

cab

43





motor

Main hook lifting



ZD151-4/13KW

Trolley travelling

YDE802-4/0.8*2

Crane travelling

ground

YDE90L2-4/1.5*2

Cab

ZDR100-4/1.5*2KW

ZDR112L1-4/2.1*2

Electric hoist



CD1, MD1

Lifting height

m

9,12,16,24,30

Working duty



A3—A5

Power supply



380v, 50HZ, three-phase

Span

m

7.5

10.5

13.5

16.5

19.5

22.5

25.5



Max. wheel load

Ground

KN

58.6

64.3

69.4

74.5

82.5

88

96.5

cab

61.4

67

72.2

77.2

85.2

90.9

99.6



Crane weight

Ground

kg

5279

6358

7755

9353

12257

14263

17636

cab

6379

7463

8855

10463

13367

15403

18866











Dimension

B

mm

5150

5350

5750

W

mm

4400

4400

WC

mm

1660

K

mm

1800

H

mm

1448

1451

1454

1457

1580

1583

1651

H1

mm

565

685

750

H2

mm

180

180

280

430

314

464

513

H3

mm

2560

2560

2660

2810

2694

2844

2893

H4

mm

49

52

55

58

181

184

252

B

mm

120

150

230

S1

mm

1299

1329

1409



S2

mm

1161

1191

1271
