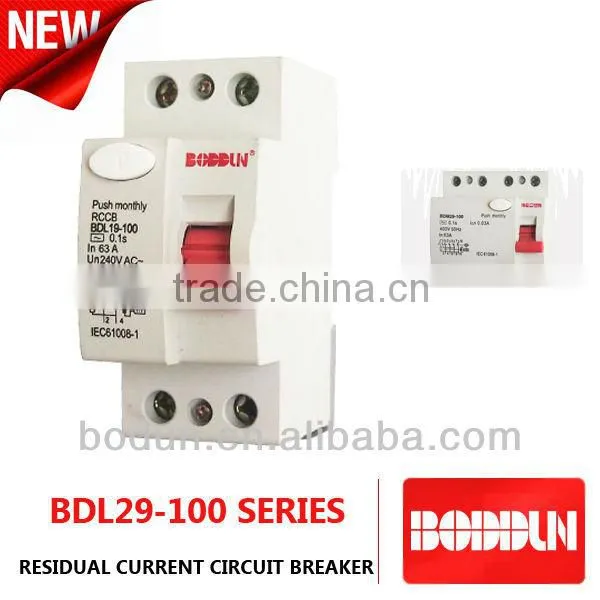

BDL29-100 2P 40A RESIDUAL CURRENT CIRCUIT BREAKER

Name: BDL29-100 2P 40A RESIDUAL CURRENT CIRCUIT BREAKER
Brand: BODUN
Price: Negotiable

FOB Price

Negotiable / Piece

50 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Ningbo Wenzhou
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	BODUN	Model Number:	BDL29-100 RESIDUAL CURRENT CIRCUIT BREAKER
Type:	Residual Current	Poles Number:	2

Product Description

Specifications

BDL29-100 RCCB
1.New model designed by our company.
2.Poles:2P,4P RESIDUAL CURRENT CIRCUIT BREAKER.
3.Voltage:240/415V
4,CE

BDL29-100 RCCB (Residual Current Circuit Breaker)

Construction and Feature

Elegant appearance;cover and handle in arc shape make comfortable operation.
Contact position indicating window.
Transparent cover designed to carry label.
In case of overload to protected circuit,RCCB handle trips and stays at central position, which enables a quick solution to the faulty line.The handle cannot stay in such position when operated manually.
Provides protection against earth fault/leakage current and function of isolation.
High short-circuit current withstand capacity
Applicable to terminal and pin/fork type busbar connection
Equipped with finger protected connection terminals
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity.
Independent of power supply and line voltage, and free from external interference, voltage fluctuation.

Technical Data

Model:electro-magnetic type
Residual current characteristics:A,AC
Pole NO.:2,4
Rated making and breaking capacity:630A
Rated current(A):25,40,63,80,100
Rated voltage:240/415V AC
Rated frequency:50/60Hz
Rated residual operating current In(A):0.03,0.1,0.3,0.5
Rated residual non operating current Ino:0.5In
Rated conditional short-circuit current Inc:10kA
Rated conditional residual short-circuit Current Ic:10kA
Tripping duration:instantaneous tripping ≤0.1s
Residual tripping current range:0.5In~In
Terminal Connection Height: 19mm
Electro-mechanical endurance: 4000 cycles
Connection capacity: Rigid conductor 25mm2
Connection terminal:
Screw terminal
Pillar terminal with clamp
Fastening torque:2.0Nm
Installation:
On symmetrical DIN rail 35mm
Panel mounting
