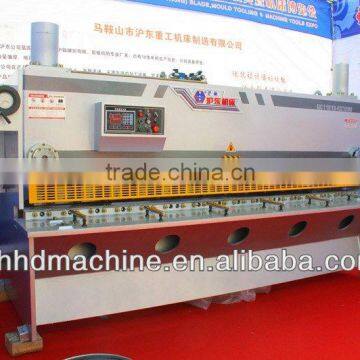

QC11Y Hydraulic Cnc Guillotine Shearing Machine

Name: QC11Y Hydraulic Cnc Guillotine Shearing Machine
Brand: Hudong
SKU: 129707621
Availability: InStock

Maanshan Hudong Heavy Industry Machinery Manufacturing Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Anhui, China

Brand Name:

Hudong

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Anhui, China

Brand Name Hudong

Model Number QCIIY-6*3200-E18

Dimension(L*W*H) 3850*1600*2170

Certification ISO9001:2008,CE

Warranty 24 months after saling

After-sales Service Provided Engineers available to service machinery overseas

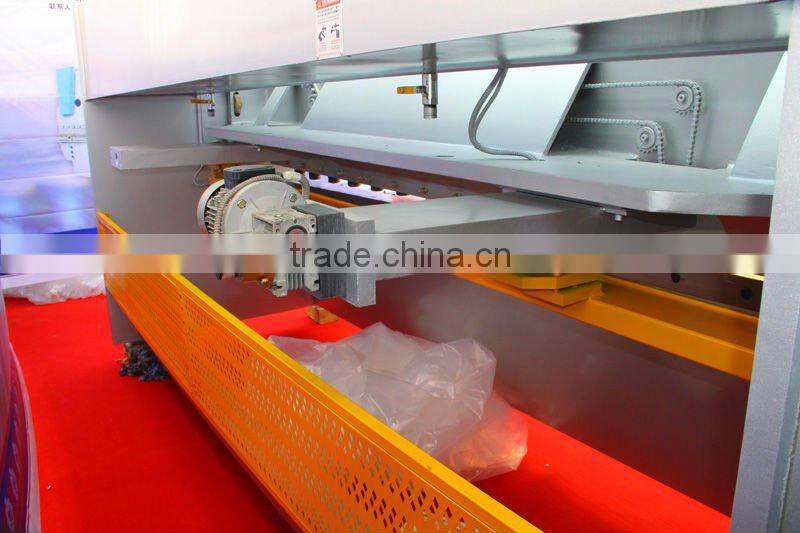

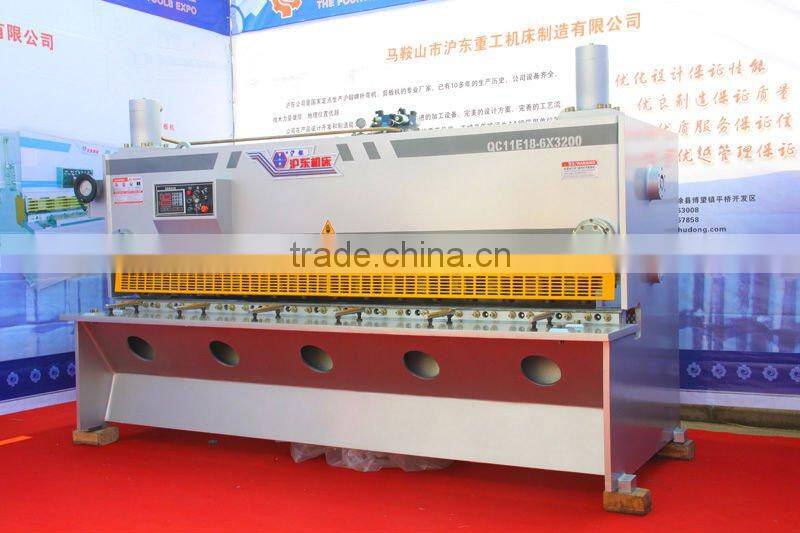

Hydraulic cnc guillotine shearing machine

1.stepless control for the stroke,the gap between up blade

and down blade is manually adjusted by handle for high uniformity.

tection fence and the electric interlock to ensure the operation safety.

3.the close loop control system that consists of CNC system and position

coder features fast response speed,high precision and exceptional stablity

and can ensure the accuracy of displacement of backgauge.

technical data:

Model	Thickness of sheared plate mm	Width of sheared plate mm	Strokes min -1	Scope of back stop mm	Cutting angle °	Throat depth mm	Motor power kw	Overall dimension mm(L×W×H)
4×2500	4	2500	25-45	600	0.5-1.5	100	5.5	3000×2000×1850
6×2500	6	2500	20-45	600	0.5-1.5	125	7.5	3030×2075×1920
6×3200	6	3200	16-45	600	0.5-1.5	125	7.5	3730×2075×1970
6×4000	6	4000	14-45	600	0.5-1.5	125	7.5	4530×2075×2080
6×5000	6	5000	11-40	800	0.5-1.5	125	7.5	5530×2075×2210
6×6000	6	6000	9-36	800	0.5-1.5	125	11	6530×2075×2520
7×7000	7	7000	7-28	800	0.5-1.5	125	11	7530×2075×2830
8×2500	8	2500	20-45	600	0.5-1.5	125	11	3040×2075×1920
8×3200	8	3200	16-45	600	0.5-1.5	125	11	3740×2075×1920
12×2500	12	2500	12-35	800	0.5-2	125	15	3110×2575×2210
12×3200	12	3200	7-35	800	0.5-2	125	15	3810×2575×2420
12×4000	12	4000	8-35	800	0.5-2	125	15	4610×2575×2530
16×2500	16	2500	16-40	800	0.5-2.5	125	22	3130×2655×2200
16×4000	16	4000	12-40	800	0.5-2.5	125	22	4630×2655×2570
20×2500	20	2500	16-40	800	0.5-2.5	125	30	3160×2855×2300
20×4000	20	4000	12-40	800	0.5-2.5	125	30	4660×2855×2720
25×2500	25	2500	8-15	800	0.5-3.5	120	37	3330×2000×2650
25×3200	25	3200	8-15	800	0.5-3.5	120	37	3970×2100×2865
25×4000	25	4000	6-12	1000	0.5-3.5	120	37	4780×2500×3150
32×2500	32	2500	6-12	1000	0.5-3.5	120	45	4100×2300×3200
32×3200	32	3200	8-12	1000	0.5-3.5	120	55	1900×2650×3450
40×2500	40	2500	4-10	1000	0.5-3.5	120	75	4100×2550×3500
40×3200	40	3200	4-10	1000	0.5-3.5	120	75	4900×2900×3750
