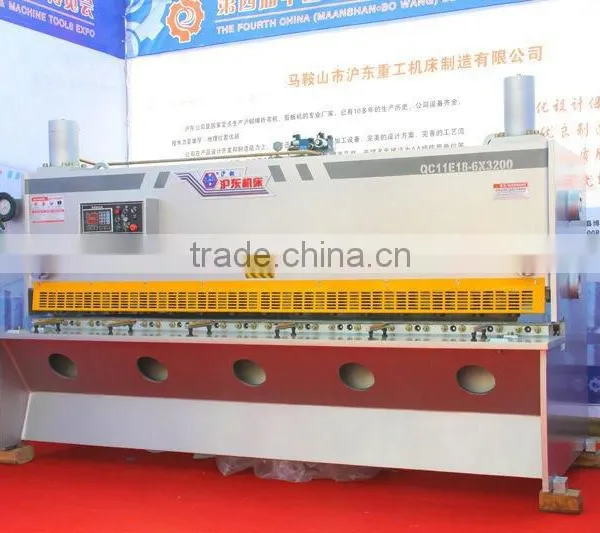

Hydraulic CNC Guillotine Shearing Machine6x3200

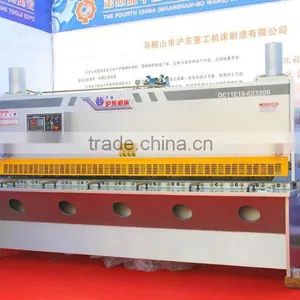

Hydraulic CNC Guillotine Shearing Machine6x3200 thumbnail-1
Hydraulic CNC Guillotine Shearing Machine6x3200 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
Hudong
Contact Supplier Request Quote Chat Now
Maanshan Hudong Heavy Industry Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name Hudong
Model Number QC11-6*3200-E18
Certification ISO9001:2000,CE
Warranty 24 months after saling
After-sales Service Provided Engineers available to service machinery overseas
Voltage optional

hydraulic CNC Guillotine shearing machine(6mm*3200mm)



Technical characteristics



1. The frame is steel welded structure, have sufficient strength and rigidity, eliminate internal stress and high frequency vibration, to ensure the overall accuracy of the fuselage. Has a good rigidity, two cylinders fixed on the left and right columns (wallboard).



2. Blades has four sides, every side can be use.



3. E20 NC system control , it digital display , also can simple locate and control back gauge.



4.Hydraulic guillotine shearing machine is second generation shearing machine.



we can adjust shear angle and blade gap. hydraulic swing beam shearing machine just adjust blade gap.









Model

 Thickness of sheared plate
mm		 Width of sheared plate
mm		 Strokes
min -1		 Scope of back stop
mm		 Cutting angle
°		 Throat depth
mm		 Motor power
kw		 Overall dimension
mm(L×W×H)
4×2500 4 2500 25-45 600 0.5-1.5 100 5.5 3000×2000×1850
6×2500 6 2500 20-45 600 0.5-1.5 125 7.5 3030×2075×1920
6×3200 6 3200 16-45 600 0.5-1.5 125 7.5 3730×2075×1970
6×4000 6 4000 14-45 600 0.5-1.5 125 7.5 4530×2075×2080
6×5000 6 5000 11-40 800 0.5-1.5 125 7.5 5530×2075×2210
6×6000 6 6000 9-36 800 0.5-1.5 125 11 6530×2075×2520
7×7000 7 7000 7-28 800 0.5-1.5 125 11 7530×2075×2830
8×2500 8 2500 20-45 600 0.5-1.5 125 11 3040×2075×1920
8×3200 8 3200 16-45 600 0.5-1.5 125 11 3740×2075×1920
12×2500 12 2500 12-35 800 0.5-2 125 15 3110×2575×2210
12×3200 12 3200 7-35 800 0.5-2 125 15 3810×2575×2420
12×4000 12 4000 8-35 800 0.5-2 125 15 4610×2575×2530
16×2500 16 2500 16-40 800 0.5-2.5 125 22 3130×2655×2200
16×4000 16 4000 12-40 800 0.5-2.5 125 22 4630×2655×2570
20×2500 20 2500 16-40 800 0.5-2.5 125 30 3160×2855×2300
20×4000 20 4000 12-40 800 0.5-2.5 125 30 4660×2855×2720
25×2500 25 2500 8-15 800 0.5-3.5 120 37 3330×2000×2650
25×3200 25 3200 8-15 800 0.5-3.5 120 37 3970×2100×2865
25×4000 25 4000 6-12 1000 0.5-3.5 120 37 4780×2500×3150
32×2500 32 2500 6-12 1000 0.5-3.5 120 45 4100×2300×3200
32×3200 32 3200 8-12 1000 0.5-3.5 120 55 1900×2650×3450
40×2500 40 2500 4-10 1000 0.5-3.5 120 75 4100×2550×3500
40×3200 40 3200 4-10 1000 0.5-3.5 120 75 4900×2900×3750

 Hydraulic CNC Guillotine shearing machine6x3200Hydraulic CNC Guillotine shearing machine6x3200Hydraulic CNC Guillotine shearing machine6x3200







Hydraulic CNC Guillotine shearing machine6x3200
