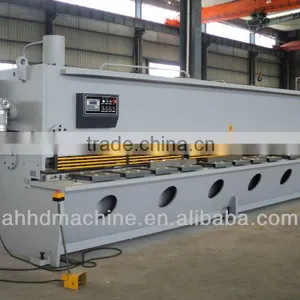

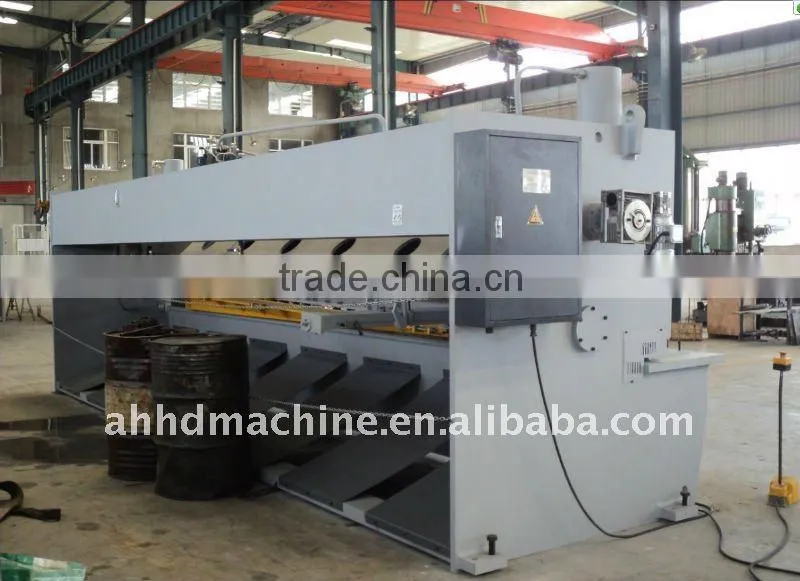

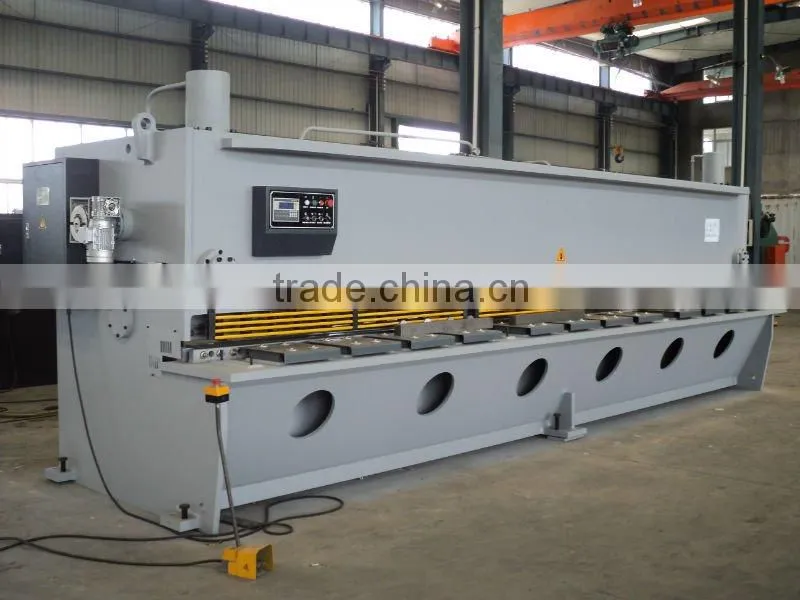

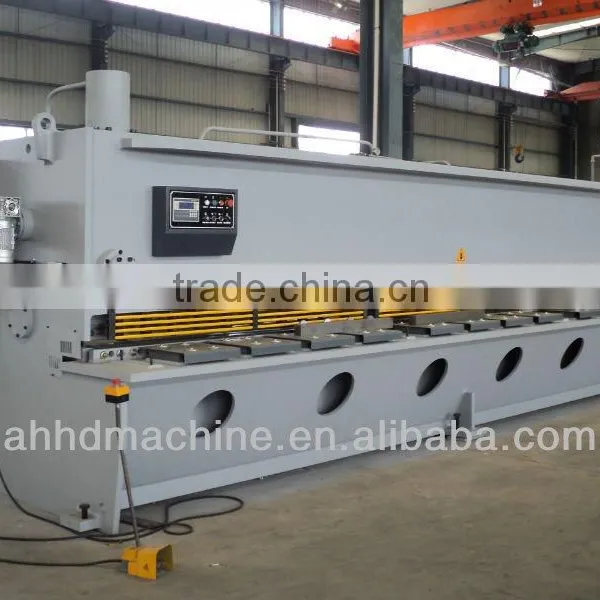

QC11Y hydraulic steel plate guillotine shear
All-steel welded structure with internal stress eliminated by integrated treatment(vibration aging,heating) and with very good rigidness and stability;
Adopts advanced integrated hydraulic system with good reliability;
Adopts three-point supported rolling guide to eliminate the bearing clearance and improve the shearing quality;
Power backgauge , manual fine tuning and digital display;
The gap between blades is adjusted with manual wheel quickly, accurately and conveniently;
Rectangular blades, the four cutting edges all can be used and have long service life; the shearing angle is adjustable in order to reduce distortion and deformation of the plate;
The upper rest adopts inward titling structure to facilitate cutting and increase the precision of workpiece;
With the function of segmental shearing;
With the function of lighting alignment;
Back carrier device (optional).
QC11K series hydraulic numerical-control guillotine plate shearing machine
No. |
Name |
Brand |
Location |
1 |
Motor |
WNM |
Anhui, China |
2 |
Electrics |
SIEMENS/TE/OMROM |
Germany |
3 |
Oil Cylinder |
Taifeng |
Jining, China |
4 |
Seal ring
|
NOK |
Japan |
5 |
Gear Pump |
Hangfa |
Shanghai, China |
6 |
Hydraulic system |
Rexroth, (Bosch company) |
Germany |
7 |
Three axes controller |
DAC310 (Delem company) |
Holland |
8 |
Blades |
Jinshan |
Shanghai, China |
9 |
Pipe connector |
EMB |
Germany |
10 |
Foot Switch |
Karcon |
South Korea |
11 |
Ball lead screw |
HIWIN |
Taiwan |
12 |
Straight-line guide |
HIWIN |
Taiwan |
13 |
Backgauge servo motor |
DELTA |
Taiwan |
