1000Tons Electro-hydraulic Automatic Cnc Hot Sale Press Brake

1000Tons Electro-hydraulic Automatic Cnc Hot Sale Press Brake thumbnail-1
1000Tons Electro-hydraulic Automatic Cnc Hot Sale Press Brake photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
Huduan
Contact Supplier Request Quote Chat Now
Maanshan Hudong Heavy Industry Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name Huduan

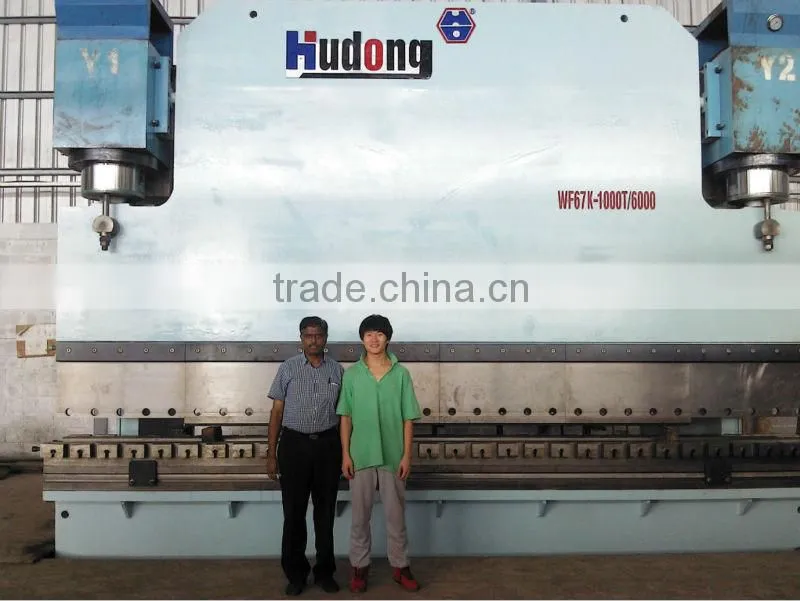

Model Number WF67K-1000T/6000
Machine Type Press Brake
Raw Material Sheet / Plate Rolling
Material / Metal Processed Stainless Steel
Power Hydraulic
Automation Automatic
Extra Services End Forming
Certification ISO 9001:2000
After-sales Service Provided Engineers available to service machinery overseas



Machine main configuration



1.  Standard with Delem-DA52 numerical-control system



2.Bosch Rexroth of Germany's high-performance servo-hydraulic control system synchronization



3.Germany  simultaneous detection of position feedback encoder with both side



4. back gauge with high-performance servo motor and ball screw



5. the deflection compensation with DNC system



6.standard with a set of mould



7.with front support arm







press brake WF67K-1000T/6000 with DA-52 controller specification





NO.

Name

Unit

Value

1.

Nominal force

KN

10000

2.

Bending length

mm

6000

3.

Distance between columns

mm

4800

4.

Slider strokes

mm

400

5.

Max opening height

mm

1000

6.

Throat depth

mm

600

10.

Main motor power

KW

55

11.

Slide speed

Quick down

mm/s

80

Pressing

mm/s

6

Quick back

mm/s

70

11.

Dimension (L×W×H)

mm

6200*3450*6700

12.

Machine weight

kg

90000

13

Machine accuracy

Slider repeat accuracy

mm

≤±0.02

14

Slider position accuracy

mm

≤±0.02

15

Back gauge repeat position accuracy

mm

≤±0.02

16.

Straightness of work piece

mm

0.3 / m

17

Bending angle deviation

′

<±50

18

Grating resolution

mm

0.005





  Main parts



No.

            Name

Brand

Original

      1

               Main motor

               Siemens

             Germany



2



Hydraulic valve



                Rexroth



Germany



3



             Electrical equipment



Schneider



France



4



Hydraulic system



                  Bosch



Germany



5



Ball screw



Hiwin



Taiwan



6



             Linear guideway



                  Hiwin



Taiwan



7



          Cutting ferrule joint



                Festo



Germany

8

          Servo motor

               Taiwan

China

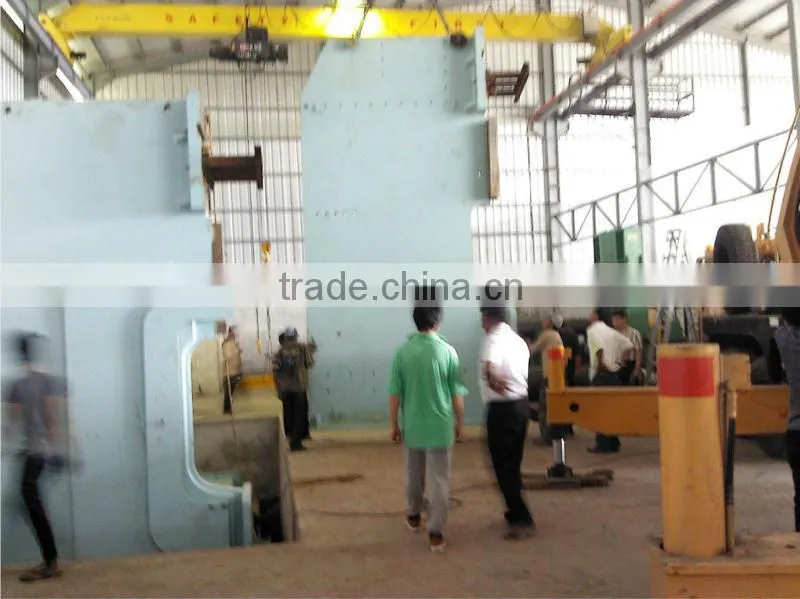

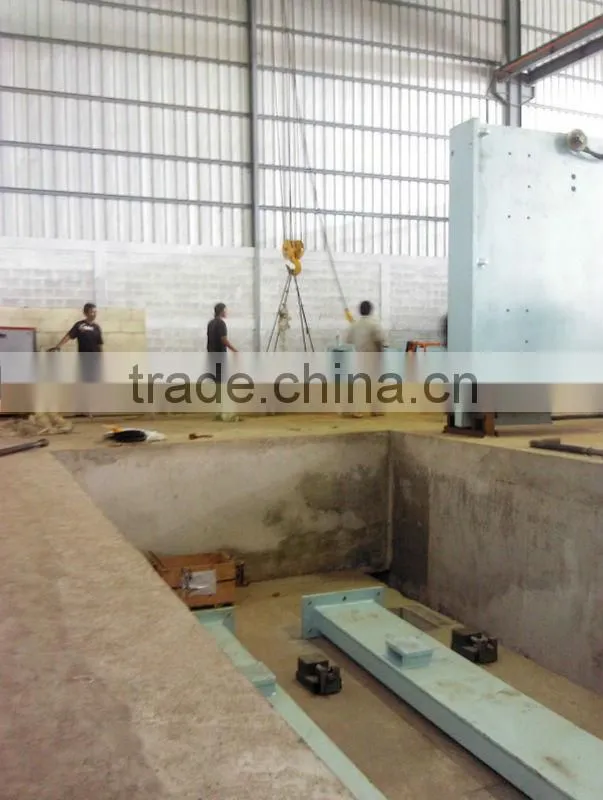

 Best after service -- we go to our customer's factory install the machine
