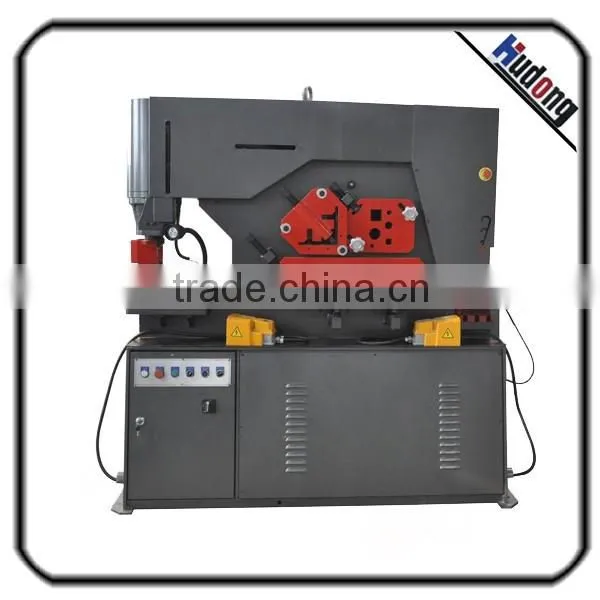

Equal Angle hydraulic punch & shear steel workers
Introduction:

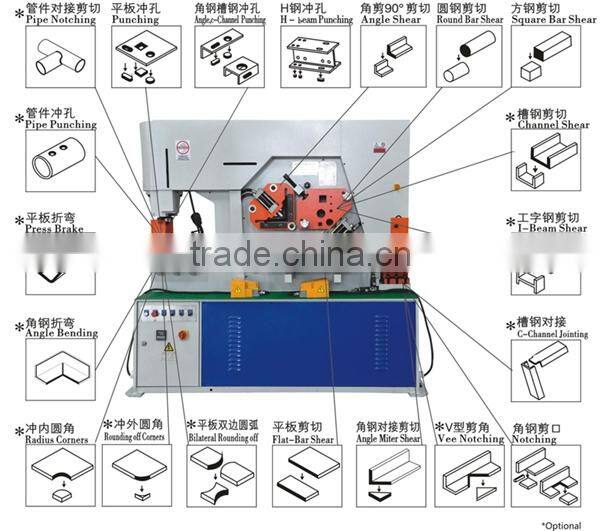

Q35Y series Using hydraulic transmission,can cut and punch all kinds of materials such as plates, square steel, round steel, angle steel, channel steel, joist steel.
Main standard properties components:
1.All the electrical parts with ISO and CE certificate.
2. Professionally engineered design frame structures.
3. Steel welds with high precision strength and rigidity to eliminate vibrations.
4. Ironworker steel frame Q235 = American standard steel A306 GR55.

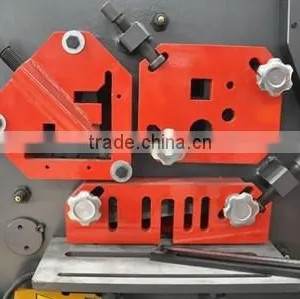

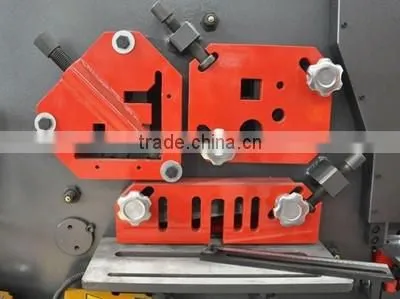

5. Five sets of punch and blades were installed on the machine.
6. Dual independent hydraulic cylinder.
7. Dual Footswitch controlled work separately.
8. Easy Adjustable stroke control.
9. Indicator of both hydraulic cylinders.
10.Electric back gauge auto stop.
11. Moveable working light that can be placed at any desired position.
12. Hydraulic system with overload protection system.
13. Emergency safety stop switch.
Model |
Q35Y-25 |
Q35Y-20 |
Q35Y-16 |
Punching force(T) |
120 |
90 |
60 |
Max. shearing thickness(mm) |
25 |
20 |
16 |
Material strength (N/mm2) |
≤450 |
≤450 |
≤450 |
Angle of shear |
8° |
8° |
7° |
Flat bar(T*W)(mm) |
25*330 16*600 |
20*330 10*480 |
16*250 8*400 |
Max. length of cylinder stroke |
80 |
80 |
80 |
Stroke times(times/min) |
8-18 |
12-20 |
12-28 |
Depth of throat(mm) |
400 |
355 |
300 |
Max. punching thickness(mm) |
25 |
20 |
16 |
|
Max. diameter of punching (mm) |
35 |
30 |
25 |
Motor power(kw) |
11 |
7.5 |
5.5 |
Overall dimensions (L×W×H) |
2355x960x2090 |
1950x900x1950 |
1700x750x1800 |
Weight(kg) |
4000 |
2400 |
1800 |
