Specifications
Q35Y hydraulic ironworkera) Pump: Italy ATOS
b) Electrical Component: FRANCE SCHNEIDER
c) Proximity Switch: JAPAN OMRON

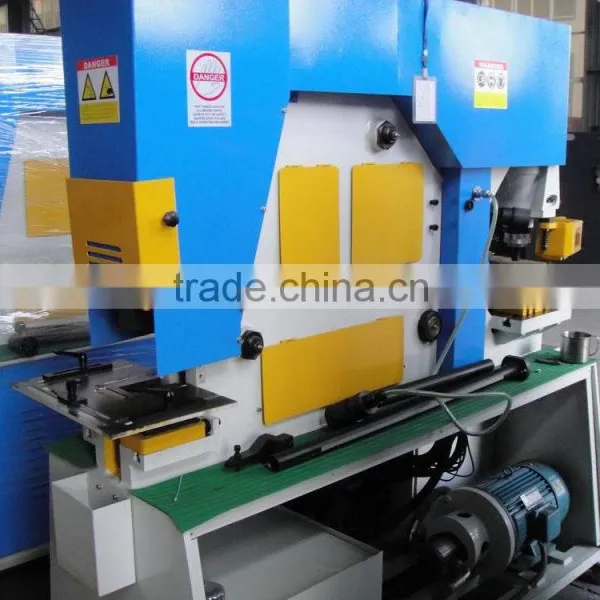

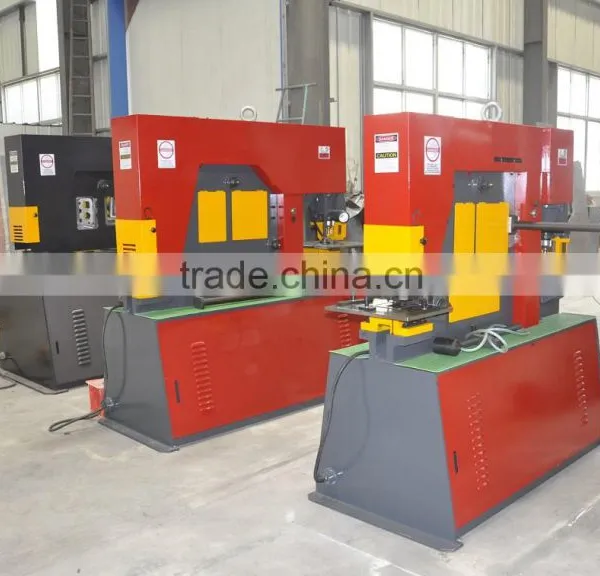

Q35Y hydraulic ironworker
a) Pump: Italy ATOS
b) Electrical Component: FRANCE SCHNEIDER
c) Proximity Switch: JAPAN OMRON
Function |
Item |
Unit |
Q35Y-20 |
shearing plate |
Angle of shear |
° |
8° |
Max. shearing thickness |
mm |
20 |
|
Flat bar |
(W×T) mm |
330×20 |
|
480×10 | |||
shearing bar |
Round steel |
mm |
50 |
Square bar |
mm |
45×45 |
|
90°shearing of equal-angle bar |
mm |
140×140×12 |
|
45°shearing of equal-angle bar |
mm |
70×70×10 |
|
90°shearing of T-bar |
mm |
140×70×12 |
|
I beam steel |
mm |
160×86×6 |
|
channel steel |
mm |
160×60×6.5 |
|
notching |
Thickness |
mm |
10 |
Width |
mm |
80 |
|
Depth |
mm |
100 |
|
punching hole |
Max. punching thickness |
mm |
20 |
Max. diameter of punching |
mm |
30 |
|
Punching force |
Ton |
90 |
|
Depth of throat |
mm |
355 |
|
Max. length of cylinder stroke |
mm |
80 |
|
Stroke times |
times/min |
8 |
|
Material strength |
N/mm2 |
≤450 |
|
Motor power |
KW |
5.5 |
|
Overall dimensions(L×W×H) |
mm |
1950×900×1930 |
|
Net. weight |
KG |
2600 |
|

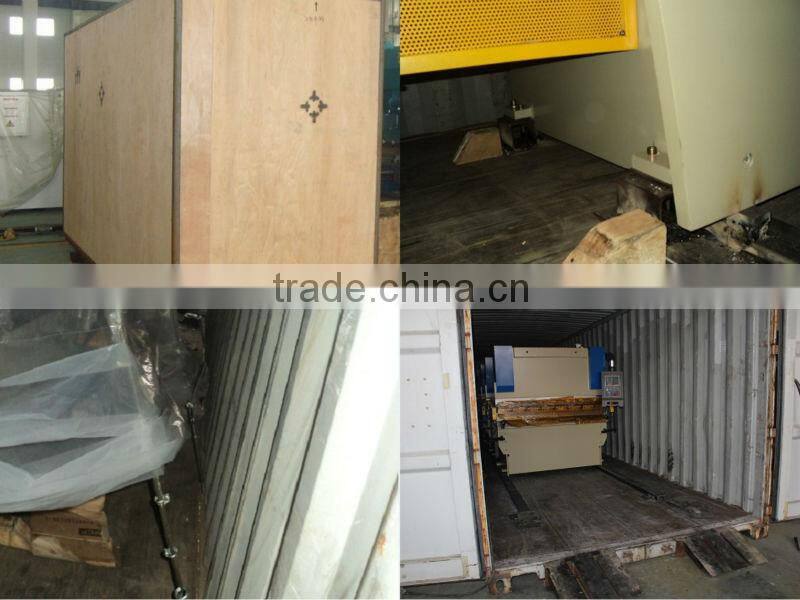

we will use steel wire fix machine into container. Rusty local oiled above machine, Plastic film wrapped. please check the following photo images
Sales-service: we provide technical service during warranty
1). Free installation, trial start and adjustment, training. But the machine quotation doesn’t including the charges of our engineers in the buyer’s country if you want, and the buyer must take charge of all the expenditure including airplane tickets of our engineers when in the buyer’s country to do the service!
2).Warranty period is 2 years. During the warranty period we shall reply to the call or Fax from the user for the machine faults (expect for faults caused by no abiding by the relevant operation regulations, or by force injury) within 24hours.
We are professional hydraulic press brake and hydraulic shearing machine manufacture with more than 30
years manufacturing expereience . all of our machines meet CE and ISO Certification .we have sold our machines
to more than 80 countries
1:which shapes machine you to punch or shearing ?
2)what's kinds of metal material for each shap of the workpieces ?
3)what's the max thickness of the each shap workpiece?
4)if possiable please sent us your workpieces drawings
