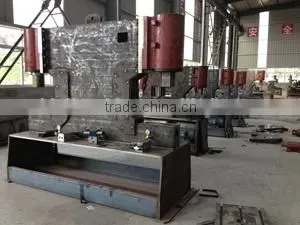

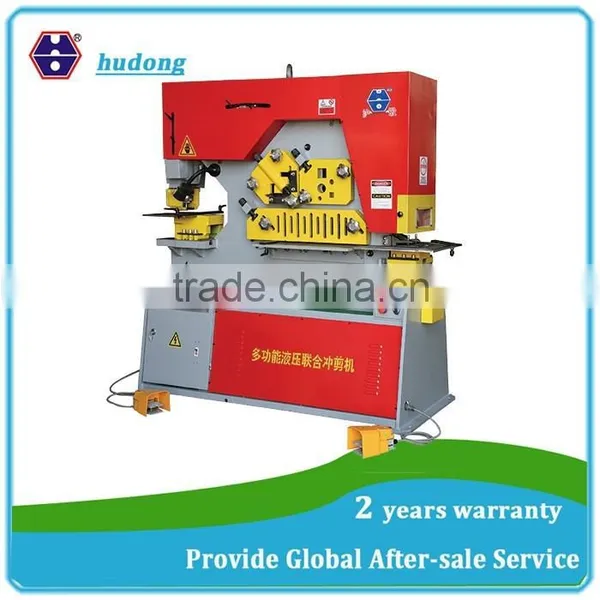

hydraulic punch & shear steel workers
Punching, Angle Steel Shearing, Flat Bar Shearing, Round/Square Bar Shearing, Notching, V-Notching, C-Channel Shearing, I-beam shearing, T-bar shearing, Press Brake, Angle Bending and Pipe Notching. hydraulic ironworker
Model |
Q35Y-40 |
Q35Y-30 |
Q35Y-25 |
Q35Y-20 |
Q35Y-16 |
Punching force(T) |
200 |
145 | 120 | 90 | 60 |
Max. shearing thickness(mm) |
40 | 30 | 25 | 20 | 16 |
Material strength (N/mm2) |
≤450 |
≤450 |
≤450 |
≤450 |
≤450 |
Angle of shear |
8° |
8° |
8° |
8° |
7° |
Flat bar(T*W) (mm) |
35*400 25*700 |
30*335 20*600 |
25*330 16*600 |
20*330 10*480 |
16*250 8*400 |
Max. length of cylinder stroke |
100 |
80 |
80 |
80 |
80 |
Stroke times (times/min) |
8-24 |
8-16 |
8-18 |
12-20 |
12-28 |
Depth of throat (mm) |
650 |
600 |
400 |
355 |
300 |
Max. punching thickness(mm) |
35 | 26 | 25 | 20 | 16 |
Max. diameter of punching(mm) |
40 | 38 | 35 | 30 | 25 |
Motor power(kw) |
18.5 | 15 | 11 | 7.5 | 5.5 |
|
Overall dimensions (L×W×H) |
2800*1260*2420 |
2800*1100*2500 |
2355x960x2090 |
1950x900x1950 |
1700x750x1800 |
Weight(kg) |
9200 | 6400 | 4000 | 2400 | 1800 |
Profile |
Round bar (mm) |
Square Bar (mm) |
Equal Angle (mm) |
TBar(mm) |
Joist (mm) |
Channel (mm) |
||
| 90° shearing |
45° shearing |
90° shearing |
45° shearing |
|||||
| Section view |
|
|
|
|
|
|
||
| Q35Y-40 |
70 | 60*60 |
200*200*18 |
80*80*10 |
200*200*18 |
80*80*10 |
300*130*13 |
300*89*11.5 |
Q35Y-30 |
65 | 55*55 |
180*180*16 |
80*80*10 |
180*180*16 |
80*80*10 |
280*124*10.5 |
280*86*11.5 |
| Q35Y-25 |
60 | 50*50 |
160*160*14 |
60*60*6 |
160*160*14 |
80*80*10 |
200*102*9 |
200*75*9 |
| Q35Y-20 |
50 | 50*50 |
140*140*12 |
50*50*5 |
140*140*12 |
70*70*10 |
160*86*6 |
160*60*6.5 |
| Q35Y-16 |
45 | 40*40 |
125*125*12 |
70*70*8 |
120*120*12 |
60*60*8 |
126*74*5 |
126*53*5.5 |
Remark :
1. A pair of die
2. A set of angle steel blade
3. A set of square and round bar blade
4. A set of shearing plate blade
5. A set of notching blade
The other die and other tool profiles must to be ordered
Maanshan Hudong Heavy Industry Machiney Manufacturing Co., Ltd. is a specialized company, we can supply press brake, bending machine, shearing machine, rolling machine, ironworker, power press,notch machine ect.
|
|
|
|
