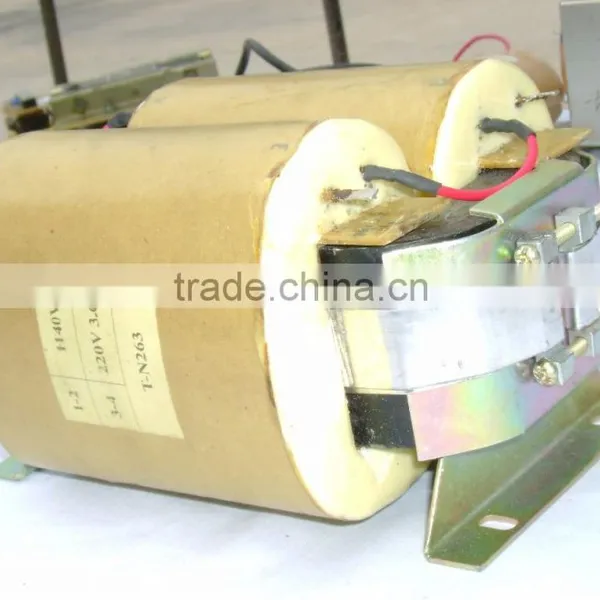

ED-type Transformers

ED-type Transformers thumbnail-1
ED-type Transformers thumbnail-2
ED-type Transformers thumbnail-3
ED-type Transformers thumbnail-4
ED-type Transformers thumbnail-5
ED-type Transformers thumbnail-6
ED-type Transformers photo-1
ED-type Transformers photo-2
ED-type Transformers photo-3
ED-type Transformers photo-4
ED-type Transformers photo-5
ED-type Transformers photo-6
US$ 0.3 - 1.2 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
TOP
Model Number:
Toroidal Transformer
Contact Supplier Request Quote Chat Now
Weifang Hengxin Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name TOP
Model Number Toroidal Transformer
Usage Electronic
Phase Single
Coil Structure Toroidal
Coil Number Autotransformer
Product Details

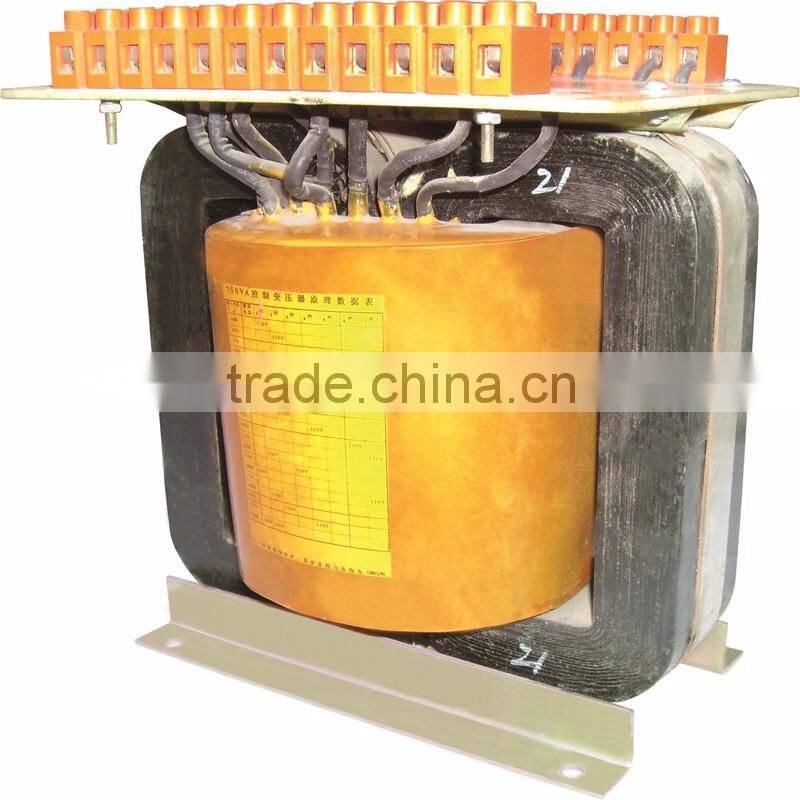

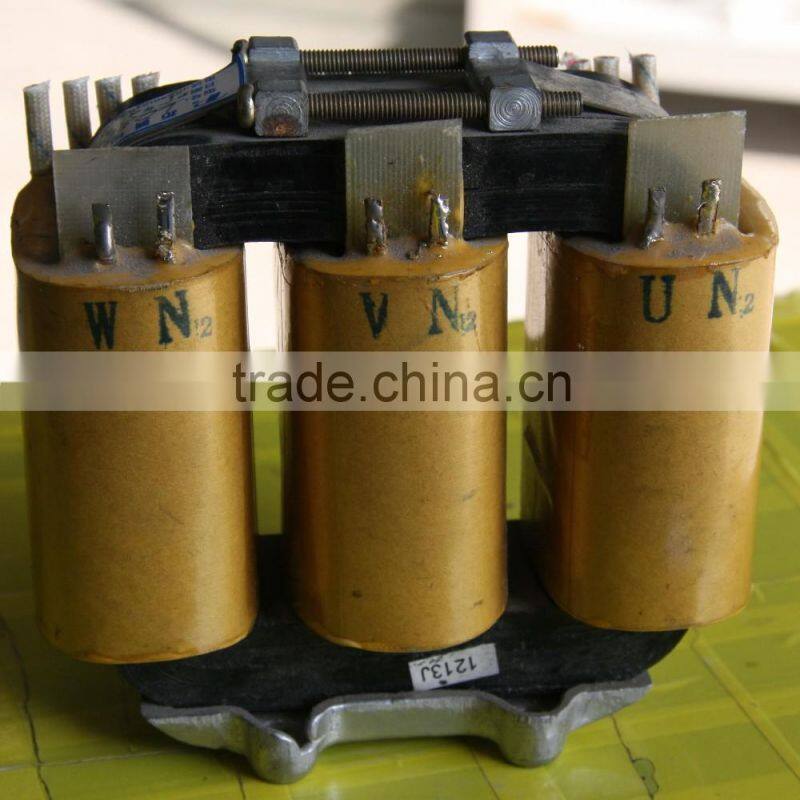

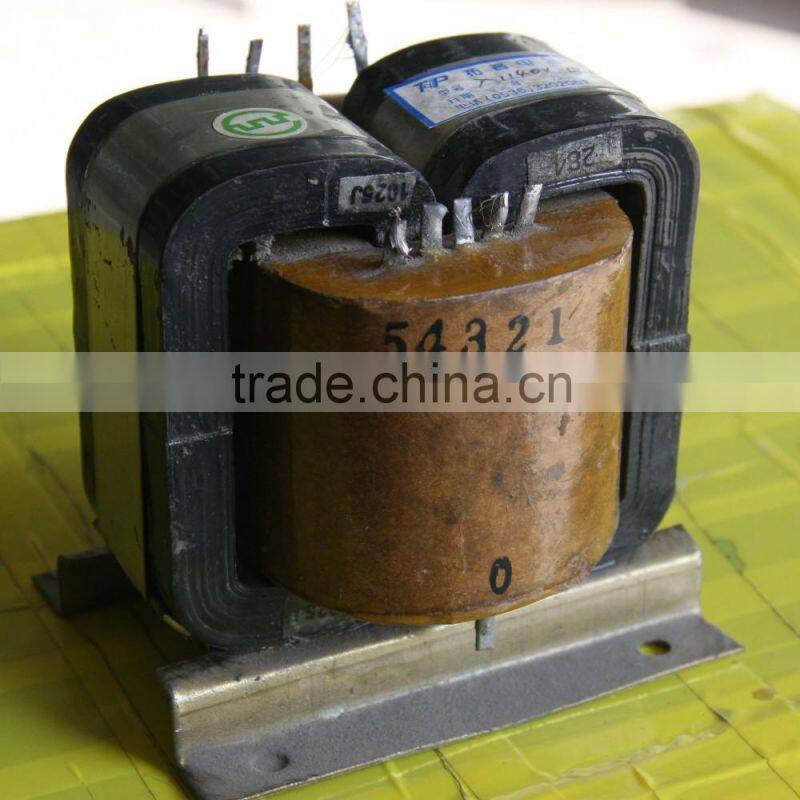

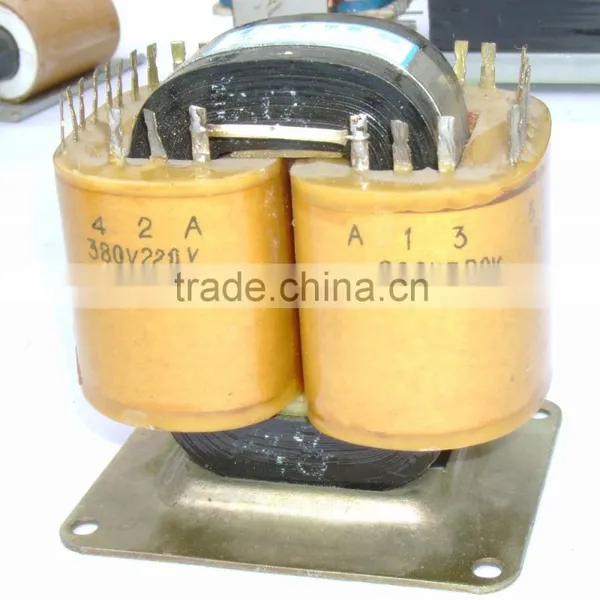

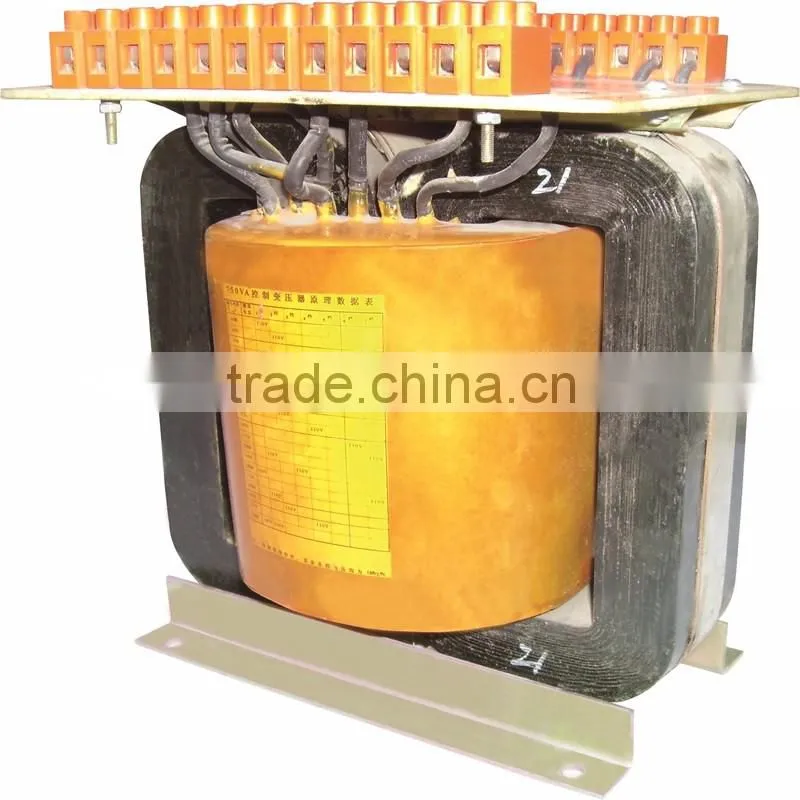

C-type transformers

Our company's C-type series transformers include CD-type,SD-type,ED-type,XCD type.Iron core is made of imported high steel strip Z10,Z11. For the coil, we packaging the line bank with high-intensity lacquer, insulation in inter-layer,  vacuum impregnation of lacquer ,epoxy resin seal.

Product Introduction

Features

Little no-load wastage,low temperature rise,high-performance of insulation,anti-corrosion capability

Uses:

Applying to electronic equipment,instrumentation, communications, broadcasting, electricity, medical,radar,ships and other equipment. It can be used as single-phase and three phase 50HZ or 400 HZ power supply transformers,filtering choke,reactor, mutual inductor etc.

Product Parameters
Magnetic core model
Efficiency(VA)
Weight(Kg)

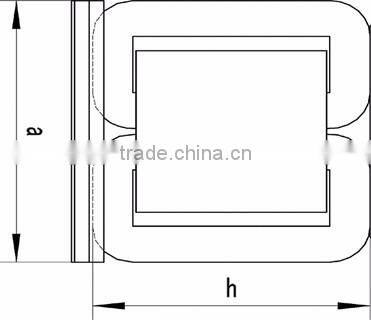

Dimension(mm)
a*b*h
50HZ
400HZ
ED10*10
1.41
38.2
0.10
40*30*35.5
ED10*12.5
2.06
46.4
0.12
40*32.5*35
ED10*16
3.10
57.3
0.143
40*36*35
ED10*20
4.37
68.3
0.172
40*40*35
ED12*12.5
4.44
65.4
0.1795
48*36.5*42
ED12*16
6.72
79
0.215
48*40*42
ED12*20
9.62
93.1
0.26
48*44*42
ED12*25
13.4
107.4
0.31
48*49*42
ED16*16
21.4
175.6
0.45
64*48*56
ED16*20
30.4
204
0.52
64*52*56
ED16*25
40.6
236
0.62
64*57*56
ED16*32
53.9
278
0.74
64*64*56
ED20*20
57.7
311
0.88
80*60*70
ED20*25
74.5
359
1.02
80*65*70
ED20*32
97.7
423
1.22
80*72*70
ED20*40
124
491
1.46
80*80*70
ED25*25
131
584
1.71
100*75*88
ED25*32
171
688
2.03
100*82*78
ED25*40
216
796
2.39
100*90*98
ED25*50
270
923
2.84
100*100*88
ED32*32
324
1202
3.67
128*96*112
ED32*40
406
1391
4.28
128*104*112
ED32*50
502
1607
5.02
128*114*112
ED32*64
637
1889
6.09
128*128*112
ED40*40
711
2293
7.32
160*120*140
ED40*50
877
2662
8.52
160*130*140
ED40*64
1107
3135
10.18
160*144*140
ED40*80
1351
3625
12.19
160*160*140
