C-type Power Transformers

C-type Power Transformers thumbnail-1
C-type Power Transformers thumbnail-2
C-type Power Transformers thumbnail-3
C-type Power Transformers thumbnail-4
C-type Power Transformers thumbnail-5
C-type Power Transformers thumbnail-6
C-type Power Transformers photo-1
C-type Power Transformers photo-2
C-type Power Transformers photo-3
C-type Power Transformers photo-4
C-type Power Transformers photo-5
C-type Power Transformers photo-6
US$ 3.6 - 24.6 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
TOP
Model Number:
Toroidal Transformer
Contact Supplier Request Quote Chat Now
Weifang Hengxin Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name TOP
Model Number Toroidal Transformer
Usage Electronic
Phase Single
Coil Structure Toroidal
Coil Number Autotransformer
Product Details

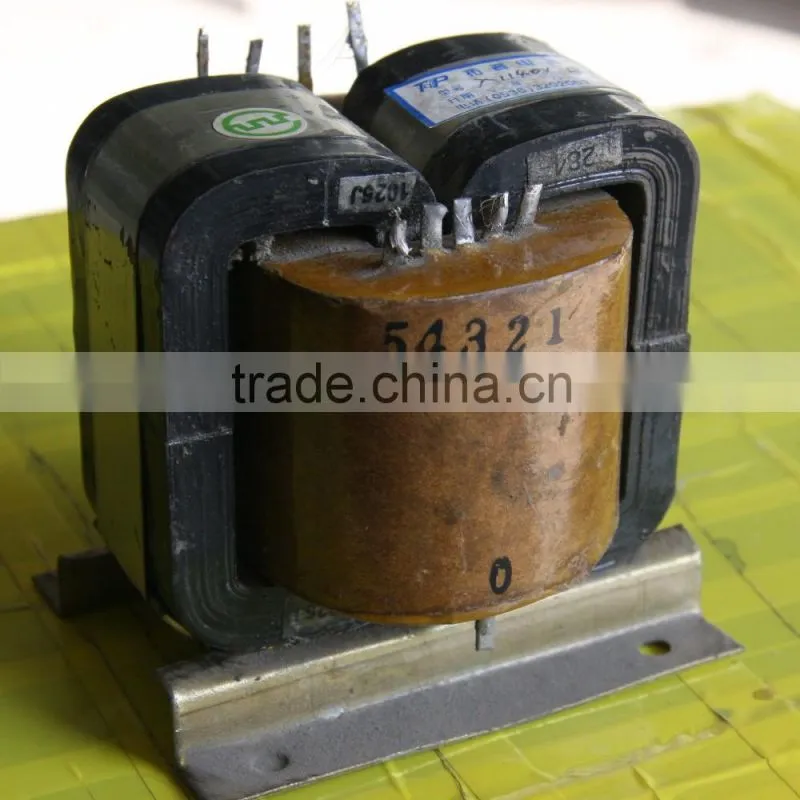

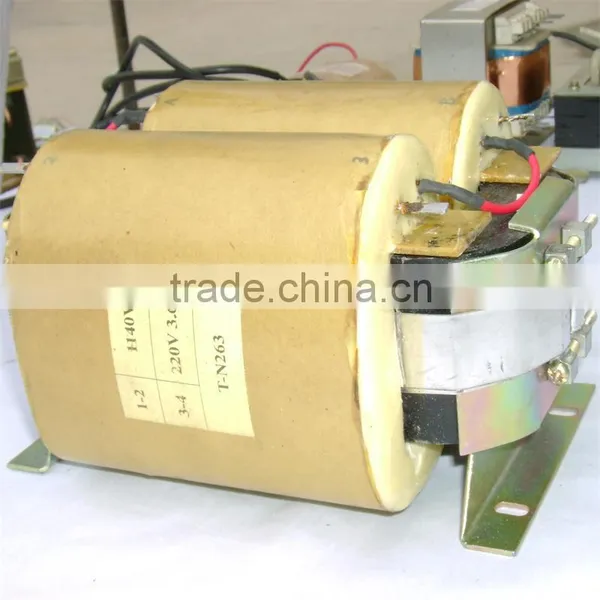

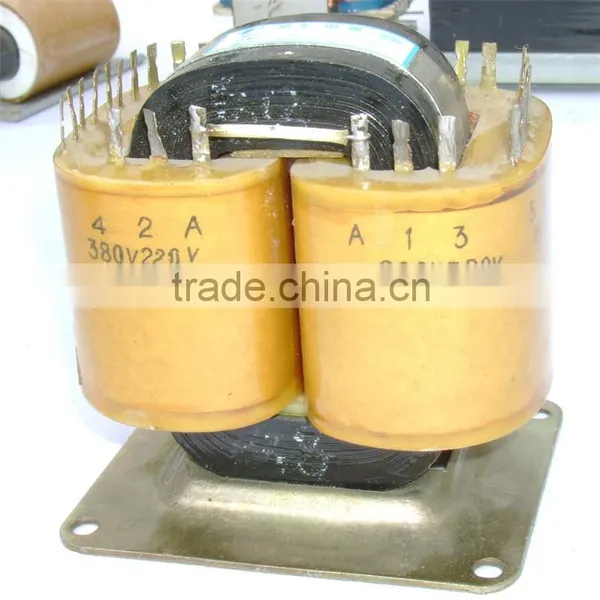

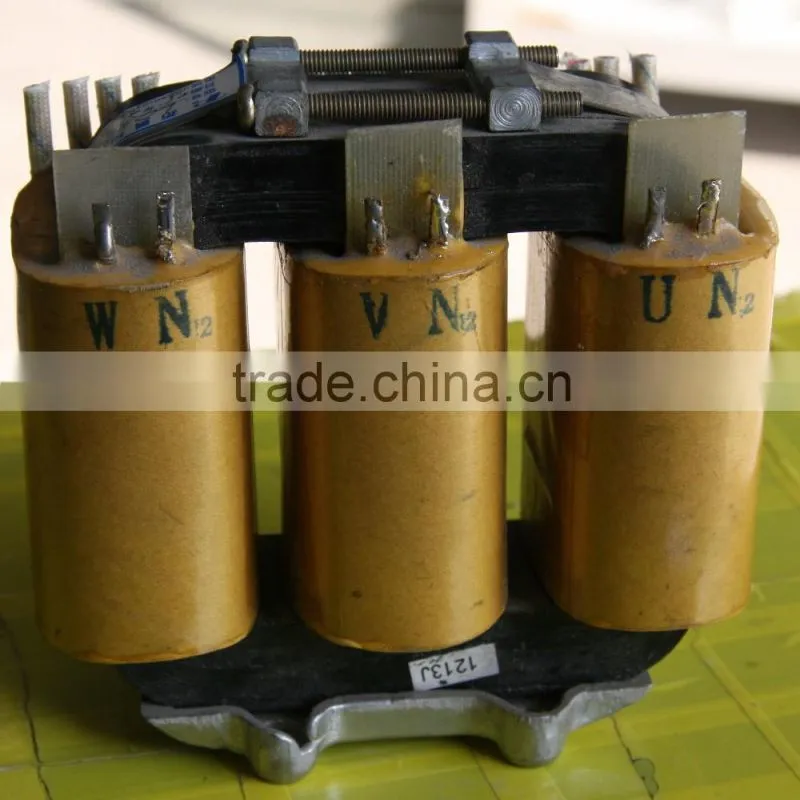

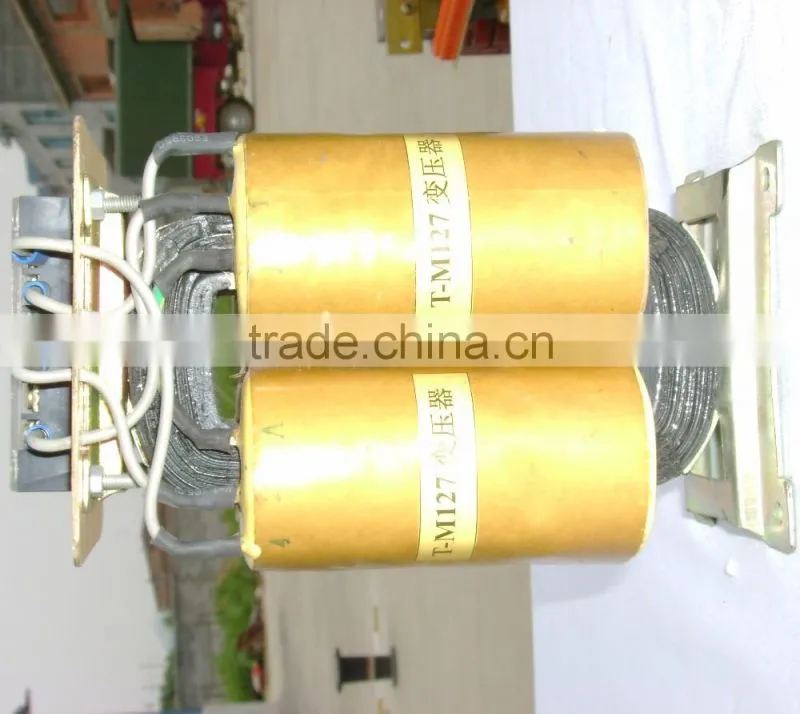

C-type transformers

Our company's C-type series transformers include CD-type,SD-type,ED-type,XCD type.Iron core is made of imported high steel strip Z10,Z11. For the coil, we packaging the line bank with high-intensity lacquer, insulation in inter-layer,  vacuum impregnation of lacquer ,epoxy resin seal.

Product Introduction

Features

Little no-load wastage,low temperature rise,high-performance of insulation,anti-corrosion capability

Uses:

Applying to electronic equipment,instrumentation, communications, broadcasting, electricity, medical,radar,ships and other equipment. It can be used as single-phase and three phase 50HZ or 400 HZ power supply transformers,filtering choke,reactor, mutual inductor etc.

Product Parameters
Magnetic core model
Efficiency(VA)
Weight(Kg)
Dimension(mm)
a*b*h
50HZ
400HZ
CD10*12.5*20
2.12
55.5
0.11
45*25*40
CD10*12.5*25
3.00
67.5
0.13
45*25*45
CD10*12.5*32
4.33
85.9
0.16
45*25*52
CD10*12.5*40
5.90
105
0.20
45*25*60
CD12.5*16*25
9.54
113
0.24
57*32*50
CD12.5*16*32
13.2
140
0.29
57*32*57
CD12.5*16*40
17.6
171
0.35
57*32*65
CD12.5*16*50
22.5
209
0.42
57*32*75
CD12.5*25*30
28.1
211
0.45
65*45*55
CD12.5*25*40
40.7
272
0.58
65*45*65
CD12.5*25*50
50.3
327
0.69
65*45*75
CD12.5*25*60
59.0
379
0.79
65*45*85
CD16*32*40
83.1
447
1.01
82*57*72
CD16*32*50
104
544
1.20
82*57*82
CD16*32*65
133
677
1.48
82*57*97
CD16*32*80
161
800
1.76
82*57*112
CD20*40*50
185
774
1.99
104*72*90
CD20*40*60
216
904
2.27
104*72*100
CD20*40*80
287
1165
2.88
104*72*120
CD20*40*100
352
1405
3.48
104*72*140
CD25*50*65
421
1519
4.03
130*90*115
CD25*50*80
507
1809
4.71
130*90*130
CD25*50*100
620
2184
5.63
130*90*150
CD25*50*120
730
2542
6.56
130*90*170
CD32*64*80
967
3045
8.21
164*114*144
CD32*64*100
1165
3637
9.80
164*114*164
CD32*64*130
1453
4488
12.03
164*114*194
CD32*64*160
1771
5262
14.43
164*114*224
CD40*80*100
2078
5861
16.67
208*144*180
CD40*80*120
2424
6780
19.15
208*144*200
CD40*80*160
3086
8567
24.0
208*144*240
CD40*80*200
3759
10231
28.8
208*144*280
