XCD-type Power Transformers

XCD-type Power Transformers thumbnail-1
XCD-type Power Transformers thumbnail-2
XCD-type Power Transformers thumbnail-3
XCD-type Power Transformers thumbnail-4
XCD-type Power Transformers thumbnail-5
XCD-type Power Transformers thumbnail-6
XCD-type Power Transformers photo-1
XCD-type Power Transformers photo-2
XCD-type Power Transformers photo-3
XCD-type Power Transformers photo-4
XCD-type Power Transformers photo-5
XCD-type Power Transformers photo-6
US$ 3.6 - 24.6 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
TOP
Model Number:
Toroidal Transformer
Contact Supplier Request Quote Chat Now
Weifang Hengxin Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name TOP
Model Number Toroidal Transformer
Usage Power
Phase Single
Coil Structure Toroidal
Coil Number Autotransformer
Product Details

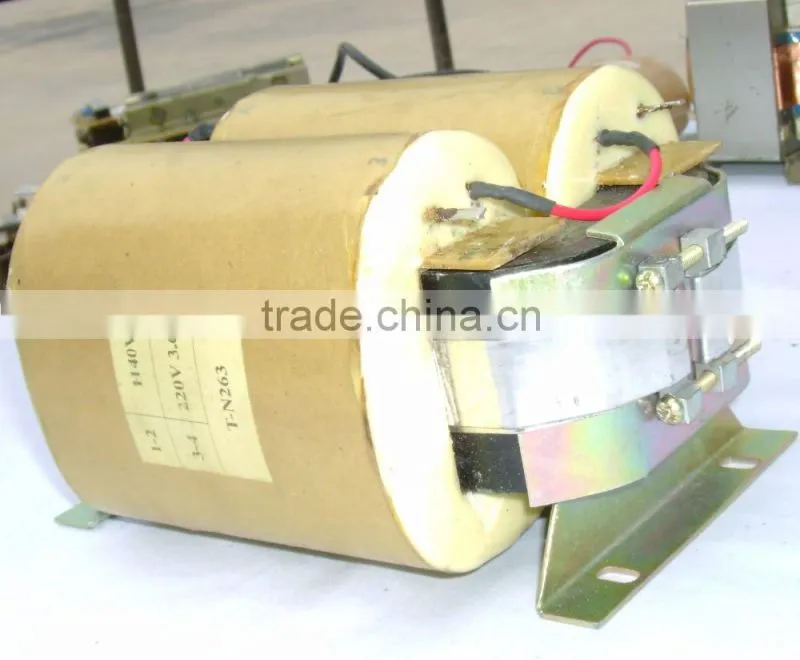

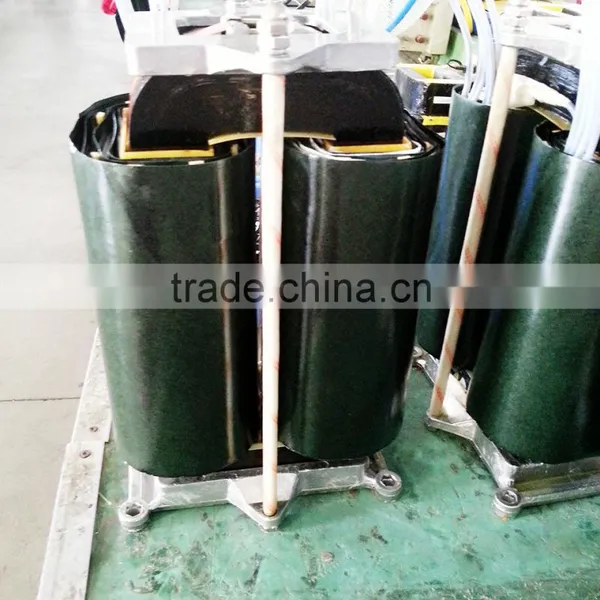

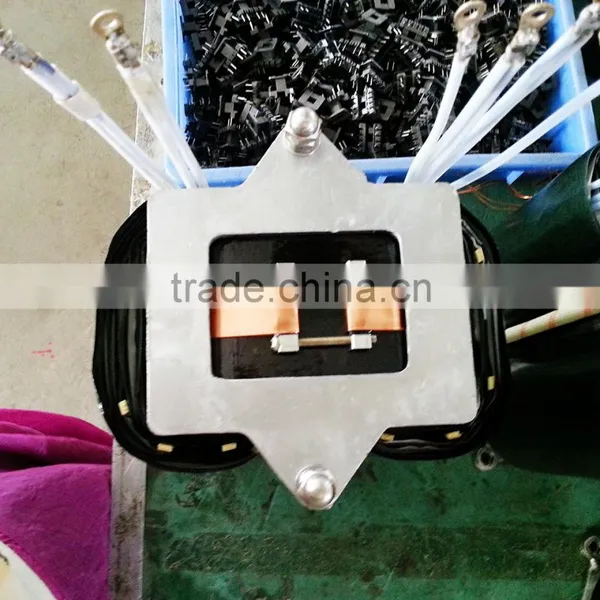

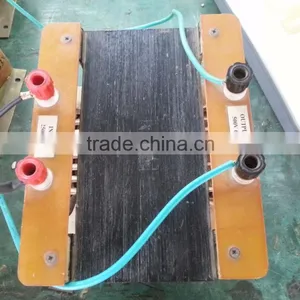

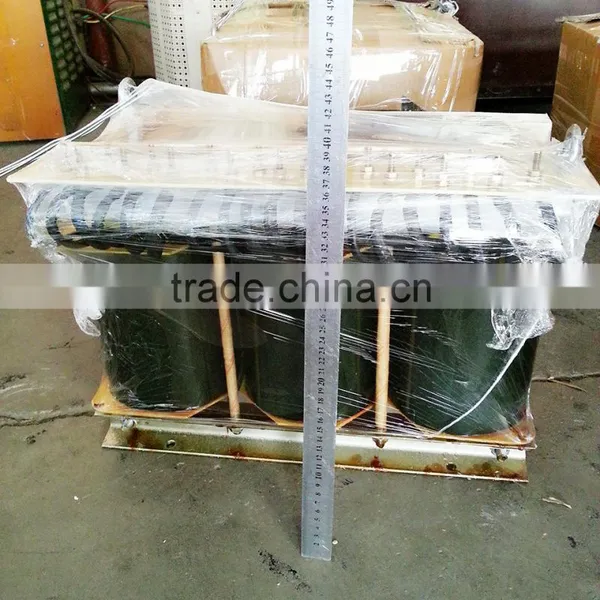

C-type transformers

Our company's C-type series transformers include CD-type,SD-type,ED-type,XCD type.Iron core is made of imported high steel strip Z10,Z11. For the coil, we packaging the line bank with high-intensity lacquer, insulation in inter-layer,  vacuum impregnation of lacquer ,epoxy resin seal.

Product Introduction

Features

Little no-load wastage,low temperature rise,high-performance of insulation,anti-corrosion capability

Uses:

Applying to electronic equipment,instrumentation, communications, broadcasting, electricity, medical,radar,ships and other equipment. It can be used as single-phase and three phase 50HZ or 400 HZ power supply transformers,filtering choke,reactor, mutual inductor etc.

Product Parameters
Iron Core Model
Weight( Kg)
Efficiency(VA)

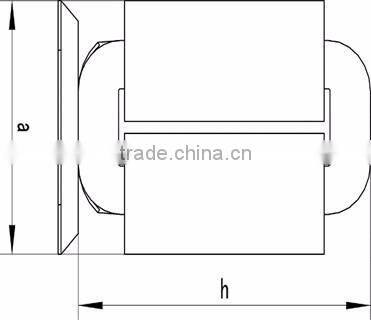

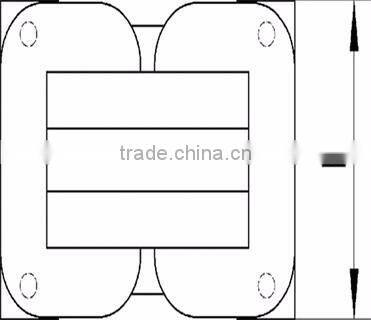

Dimensions(mm)a*b*h
XCD10*20*20
0.161
4.64
45*32.5*40
XCD10*20*25
0.187
6.55
45*32.5*45
XCD10*20*32
0.226
9.55
45*32.5*52
XCD10*20*40
0.266
12.6
45*32.5*60
XCD12.5*25*25
0.347
20.4
57*51*50
XCD12.5*25*32
0.414
27.7
57*41*57
XCD12.5*25*40
0.485
34.3
57*41*65
XCD12.5*25*50
0.581
43.0
57*41*75
XCD16*32*32
0.628
42.3
64*48*64
XCD16*32*40
0.730
54.6
64*48*72
XCD16*32*50
0.858
69.4
64*48*82
XCD16*32*64
1.03
87.8
64*48*96
XCD20*40*40
1.28
104
80*60*80
XCD20*40*50
1.48
124
80*60*90
XCD20*40*64
1.75
156
80*60*104
XCD20*40*80
2.11
206
80*60*120
XCD25*50*50
2.57
247
100*75*100
XCD25*50*64
2.00
303
100*75*114
XCD25*50*80
3.54
374
100*75*130
XCD25*50*100
4.19
455
100*75*150
XCD32*64*64
5.61
596
128*96*128
XCD32*64*80
6.38
697
128*96*144
XCD32*64*100
7.58
804
128*96*164
XCD32*64*125
9.05
1061
128*96*189
XCD40*80*80
11.4
1351
160*120*160
XCD40*80*100
13.4
1662
160*120*180
XCD40*80*125
15.9
2026
160*120*205
XCD40*80*160
19.5
2540
160*120*240
XCD50*100*100
23.6
3003
200*150*200
XCD50*100*125
27.6
3611
200*150*225
XCD50*100*160
33.4
3447
200*150*260
XCD50*100*200
39.9
5347
200*150*300
