TJ-67 Cosmetic bottle/ Cups/ Lids Roller hot foil stamping machine, thermal transfer printing machine for Curved surface

Specifications

Flat, circumference or slant surface hot foil stamping & heat transfer printing
For cylindrical,conical or curving products

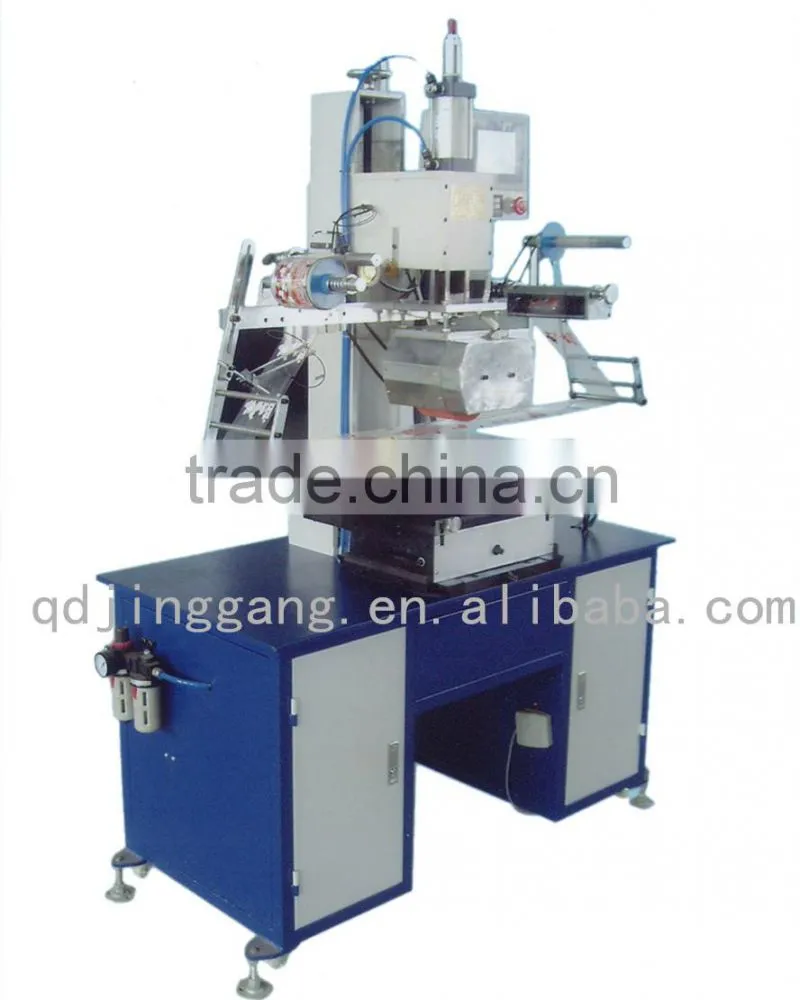

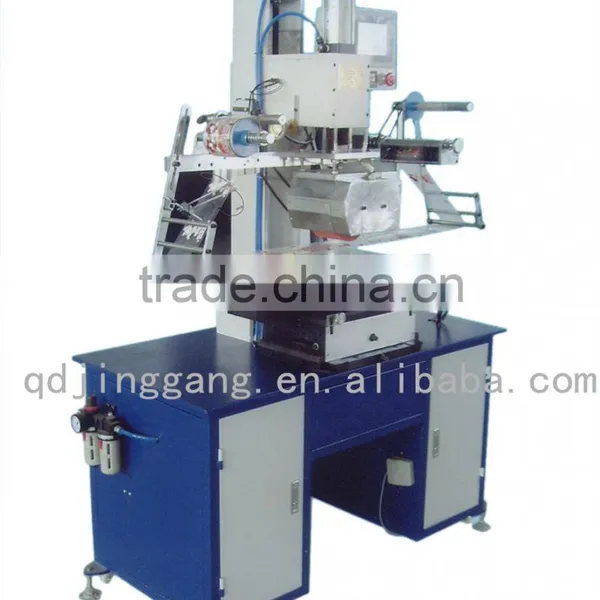

TJ-67 Flat Roller hot stamping and heat transfer printing machine



Product description:



    It is suitable for plane, circumference or slant surface hot stamping and heat transfer printing of various materials workpieces

   Quality/Safety Certification ISO9001-2000;CE



Technical Parameter:



Power supply	220V 50HZ
Heating silicone roller	Φ120*100mm(can customize)
Worktable size	600*240mm
Worktable horizontal travel	520mm
Max. pressure	0.7-0.8mp
Power of heating	1000W
Adjustable height of the stamping head	120mm
Temperature range	Room temperature -300°C
Paper feeding method	Electric and automatic
Weight	300Kg
Overall size	1300*600*1950mm



Product advantages:



1.Electric control with servo motor ,easy operation.

2.Worktable positioning is accurate ,superior hot stamping quality .

3.The worktable is mechanical running and its operation is smooth.

4.The worktable angle and gradient can be adjusted for different angle work pieces.

5.Height of hot stamping head can be adjusted for easy hot stamping of work pieces of different height.

6.Automatic and adjustable paper feeding and receiving .

7.Relay controls operation and thermostat adjusts the steady temperature for easy and safe operation.



Note:We can customize various hot stamping machineS by customers’ practical demand.
